2372488 Series

Catalog

D1100 HDR ASSY H 34P XBLACK PRE-

Part	Style	Number of Positions	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Shrouding	Current Rating (Amps)	Termination	Insulation Color	Voltage Rating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Connector Type	Contact Finish - Post	Insulation Height	Insulation Height	Number of Rows	Insulation Material	Contact Type

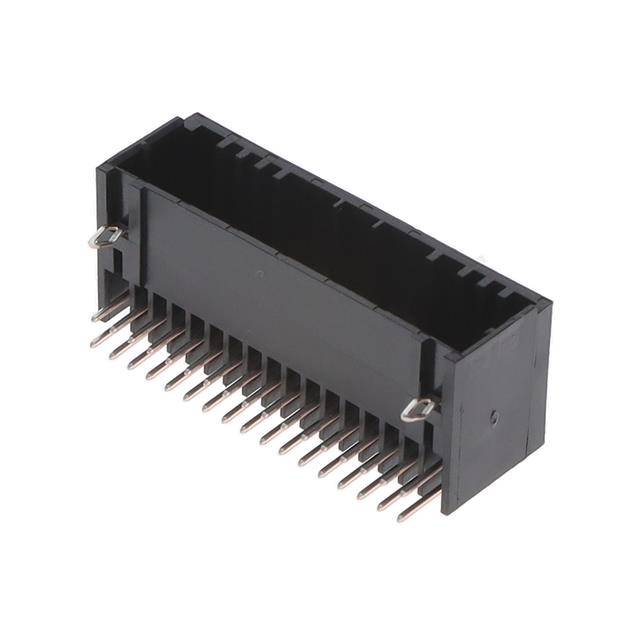

TE Connectivity Raychem Cable Protection 1-2372488-7	Board to Cable/Wire	34	Copper Alloy	105 ░C	-55 °C	UL94 V-0	Shrouded - 4 Wall	3 A	Solder	Black	125 VDC	Rectangular	31.5 µin	0.8 µm	All	Through Hole Right Angle	0.079 in	2 mm	3.3 mm	0.13 in	Push-Pull	Header	Tin	0.465 in	11.8 mm	2	Glass Filled Polyester Thermoplastic	Male Pin
