HSW Series

Manufacturer: Ohmite

Catalog

WIREWOUND RESISTORS - CHASSIS MOUNT 600W 47 OHMS 5% TOL.

Part	Lead Style	Package / Case	Resistance	Features	Temperature Coefficient	Coating, Housing Type	Tolerance	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Mounting Feature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

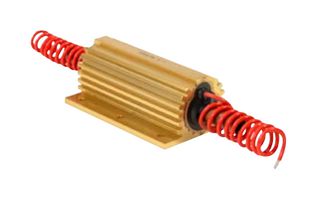

Ohmite HSW600 47R J	Wire Leads	Axial Box	47 Ohms	Pulse Withstanding	50 ppm/░C	Aluminum	5 %	600 W	4.488 in 114 mm	2.835 " 72 mm	Flanges	1.772 "	45 mm
Ohmite HSW600 4R7 J	Wire Leads	Axial Box	4.7 Ohms	Pulse Withstanding	50 ppm/░C	Aluminum	5 %	600 W	4.488 in 114 mm	2.835 " 72 mm	Flanges	1.772 "	45 mm
Ohmite HSW600 4R7 J	Wire Leads	Axial Box	4.7 Ohms	Pulse Withstanding	50 ppm/░C	Aluminum	5 %	600 W	4.488 in 114 mm	2.835 " 72 mm	Flanges	1.772 "	45 mm
Ohmite HSW600 1K J	Wire Leads	Axial Box	1000 Ohms	Pulse Withstanding	25 ppm/°C	Aluminum	5 %	600 W	4.488 in 114 mm	2.835 " 72 mm	Flanges	1.772 "	45 mm
Ohmite HSW600 47R J	Wire Leads	Axial Box	47 Ohms	Pulse Withstanding	50 ppm/░C	Aluminum	5 %	600 W	4.488 in 114 mm	2.835 " 72 mm	Flanges	1.772 "	45 mm
