EFM32GG11 Series

Catalog

IC MCU 32BIT 2MB FLASH 112BGA

...

Part	Core Size	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	RAM Size	Data Converters	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Number of I/O	Package / Case	Supplier Device Package	Peripherals	Oscillator Type	Program Memory Type	Speed	Program Memory Size	Supplier Device Package [x]	Supplier Device Package [y]
SILICON LABS EFM32GG11B310F2048GL112-AR	32-Bit 32-Bit Single-Core	ARM® Cortex®-M4	85 C	-40 ¯C	CANbus EBI/EMI I2C IrDA LINbus SmartCard SPI UART/USART	384 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	90	112-LFBGA	112-BGA (10x10)	Brown-out Detect/Reset DMA LCD POR PWM WDT	Internal	FLASH	72 MHz	2 MB
SILICON LABS EFM32GG11B110F2048GQ64-BR	32-Bit 32-Bit Single-Core	ARM® Cortex®-M4	85 C	-40 ¯C	CANbus EBI/EMI I2C IrDA LINbus SmartCard SPI UART/USART	384 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	53	64-TQFP	64-TQFP (10x10)	Brown-out Detect/Reset DMA POR PWM WDT	Internal	FLASH	72 MHz	2 MB
SILICON LABS EFM32GG11B510F2048IM64-BR	32-Bit 32-Bit Single-Core	ARM® Cortex®-M4	125 °C	-40 °C	CANbus EBI/EMI I2C IrDA LINbus SmartCard SPI UART/USART	384 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	53	64-VFQFN Exposed Pad	64-QFN	Brown-out Detect/Reset DMA LCD POR PWM WDT	Internal	FLASH	72 MHz	2 MB	9	9

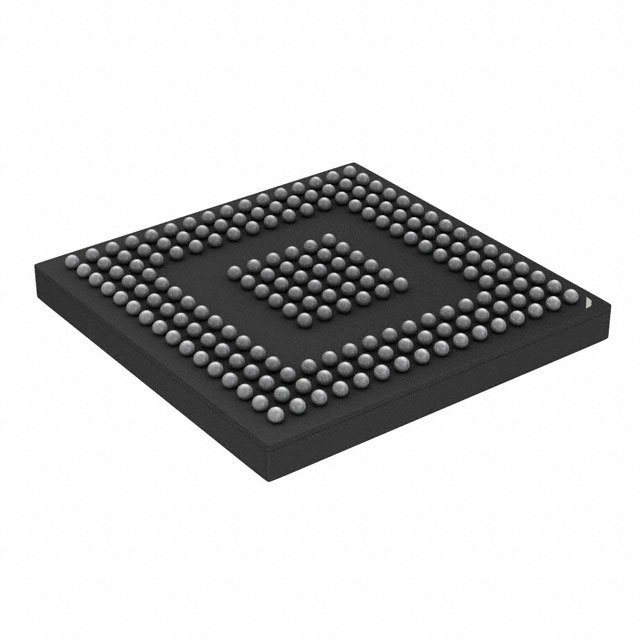

SILICON LABS EFM32GG11B840F1024GL192-AR	32-Bit 32-Bit Single-Core	ARM® Cortex®-M4	85 C	-40 ¯C	CANbus EBI/EMI Ethernet I2C IrDA LINbus MMC/SD/SDIO QSPI SmartCard SPI UART/USART USB	512 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	144	192-VFBGA	192-BGA (7x7)	Brown-out Detect/Reset DMA LCD POR PWM WDT	Internal	FLASH	72 MHz	1 MB
SILICON LABS EFM32GG11B510F2048IM64-A	32-Bit 32-Bit Single-Core	ARM® Cortex®-M4	125 °C	-40 °C	CANbus EBI/EMI I2C IrDA LINbus SmartCard SPI UART/USART	384 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	53	64-VFQFN Exposed Pad	64-QFN	Brown-out Detect/Reset DMA LCD POR PWM WDT	Internal	FLASH	72 MHz	2 MB	9	9
SILICON LABS EFM32GG11B520F2048GM64-B	32-Bit 32-Bit Single-Core	ARM® Cortex®-M4	85 C	-40 ¯C	CANbus EBI/EMI I2C IrDA LINbus SmartCard SPI UART/USART	512 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	53	64-VFQFN Exposed Pad	64-QFN	Brown-out Detect/Reset DMA LCD POR PWM WDT	Internal	FLASH	72 MHz	2 MB	9	9
SILICON LABS EFM32GG11B420F2048GM64-A	32-Bit 32-Bit Single-Core	ARM® Cortex®-M4	85 C	-40 ¯C	CANbus EBI/EMI Ethernet I2C IrDA LINbus MMC/SD/SDIO QSPI SmartCard SPI UART/USART USB	512 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	53	64-VFQFN Exposed Pad	64-QFN	Brown-out Detect/Reset DMA LCD POR PWM WDT	Internal	FLASH	72 MHz	2 MB	9	9
SILICON LABS EFM32GG11B510F2048IQ64-A	32-Bit 32-Bit Single-Core	ARM® Cortex®-M4	125 °C	-40 °C	CANbus EBI/EMI I2C IrDA LINbus SmartCard SPI UART/USART	384 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	50	64-TQFP	64-TQFP (10x10)	Brown-out Detect/Reset DMA LCD POR PWM WDT	Internal	FLASH	72 MHz	2 MB
SILICON LABS EFM32GG11B820F2048IM64-BR	32-Bit 32-Bit Single-Core	ARM® Cortex®-M4	125 °C	-40 °C	CANbus EBI/EMI Ethernet I2C IrDA LINbus MMC/SD/SDIO QSPI SmartCard SPI UART/USART USB	512 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	50	64-VFQFN Exposed Pad	64-QFN	Brown-out Detect/Reset DMA LCD POR PWM WDT	Internal	FLASH	72 MHz	2 MB	9	9
SILICON LABS EFM32GG11B520F2048IL120-B	32-Bit	ARM® Cortex®-M4	125 °C	-40 °C	CANbus EBI/EMI I2C IrDA LINbus SmartCard SPI UART/USART	512 K	A/D 16x12b SAR D/A 2x12b	3.8 V	1.8 V	Surface Mount	95	120-VFBGA	120-BGA (7x7)	Brown-out Detect/Reset DMA LCD POR PWM WDT	Internal	FLASH	72 MHz	2 MB
