SMS3RE Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN HEADER VERT 3POS 5.08MM

Part	Overall Contact Length	Style	Connector Type	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Type	Contact Material	Pitch - Mating	Number of Rows	Number of Positions	Insulation Height	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Fastening Type	Contact Length - Post	Contact Finish - Mating	Features	Shrouding	Insulation Color	Ingress Protection	Mounting Type	Contact Finish - Post	Current Rating	Contact Length - Mating	Termination	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)

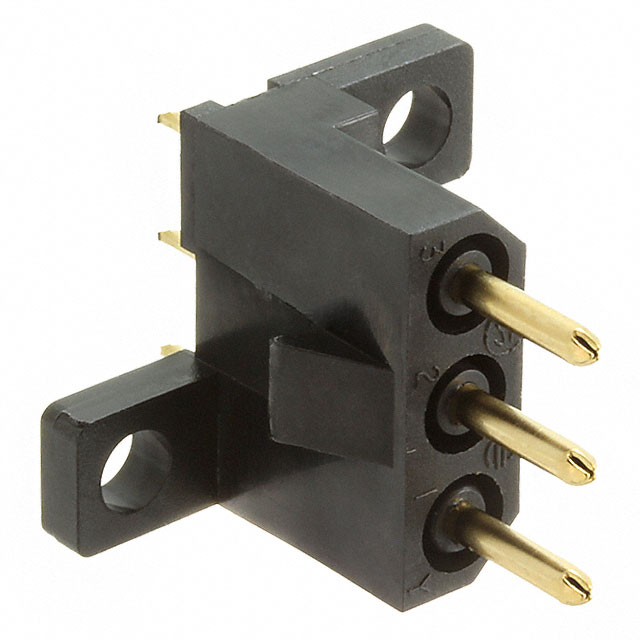

Amphenol Aerospace Operations SMS3RE4S6	0.972 in	Board Cable/Wire	Header	Circular	All	16 µin	Male Pin	Copper Alloy	0.2 in	1	3	0.52 in	125 °C	-55 °C	UL94 V-0	Locking Ramp	0.173 in	Gold	Mounting Flange	Unshrouded	Black	IP40	Through Hole	Tin	5 A	0.28 in	Solder	Glass Filled Polyester

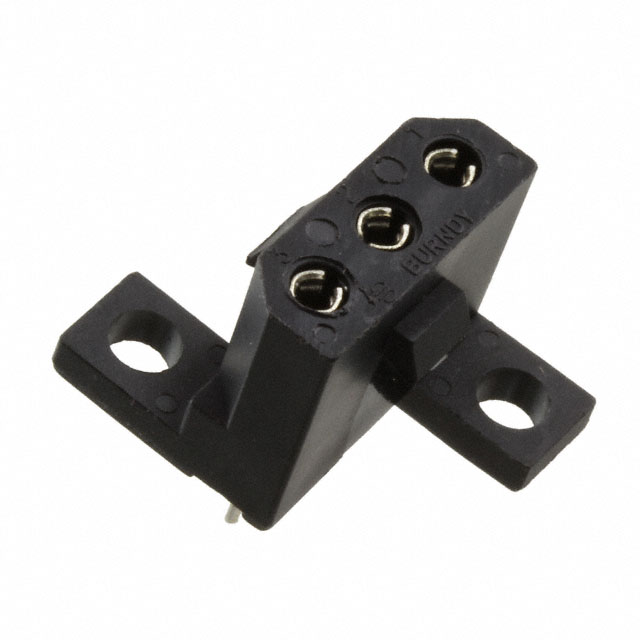

Amphenol Aerospace Operations SMS3RE3TR29		Board Board or Cable	Receptacle	Circular	All	118.1 µin	Female Socket	Copper Alloy	0.2 in	1	3	0.528 in	105 °C	-55 °C	UL94 V-0	Locking Ramp	0.173 in	Tin	Mounting Flange		Black	IP40	Through Hole	Tin	5 A		Solder	Glass Filled Thermoplastic	118.1 µin

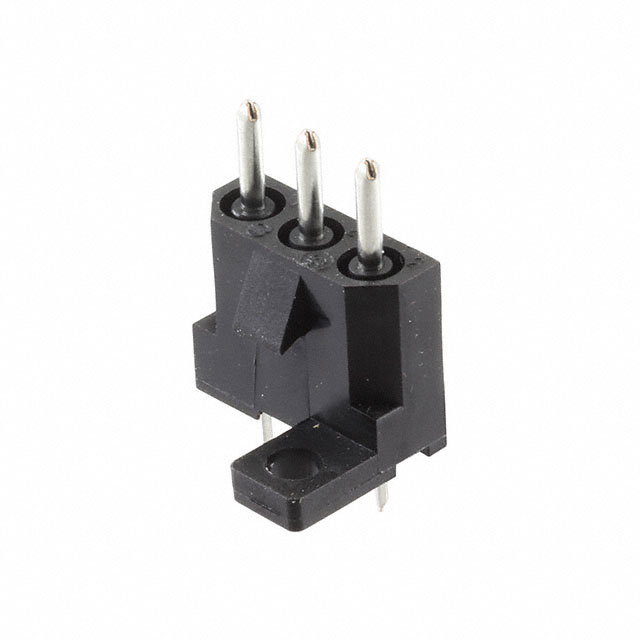

Amphenol Aerospace Operations SMS3RE4TR29	0.972 in	Board Cable/Wire	Header	Circular	All	118.1 µin	Male Pin	Copper Alloy	0.2 in	1	3	0.52 in	125 °C	-55 °C	UL94 V-0	Locking Ramp	0.173 in	Tin	Mounting Flange	Unshrouded	Black	IP40	Through Hole	Tin	5 A	0.28 in	Solder	Glass Filled Polyester	118.1 µin

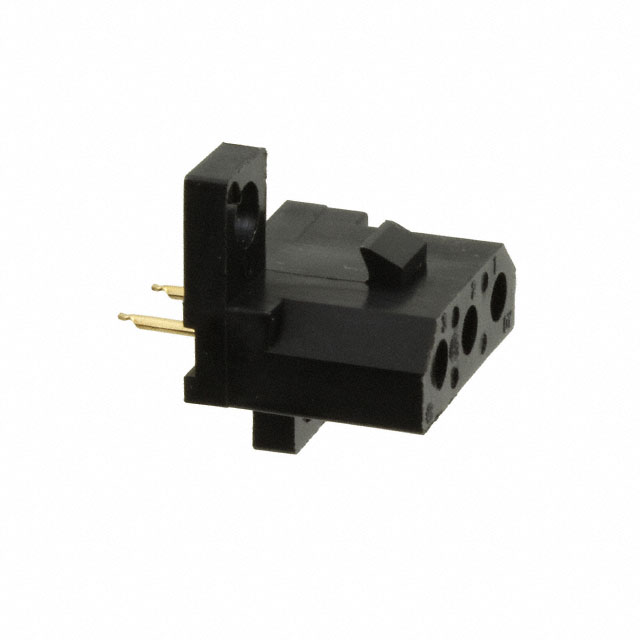

Amphenol Aerospace Operations SMS3RE3S6		Board Board or Cable	Receptacle	Circular	All	29.5 Ąin	Female Socket	Copper Alloy	0.2 in	1	3	0.528 in	105 °C	-55 °C	UL94 V-0	Locking Ramp	0.173 in	Gold	Mounting Flange		Black	IP40	Through Hole	Gold	5 A		Solder	Glass Filled Thermoplastic		Flash	Flash
