LCC17A3 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

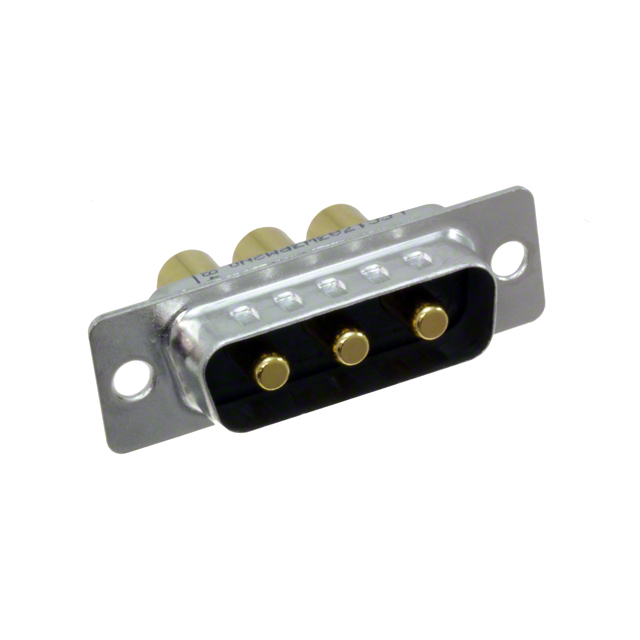

CONN D-SUB PLUG 3POS VERT SLDR
| Part | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Material Flammability Rating | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Mounting Type | Flange Feature | Flange Feature | Connector Type | Number of Positions | Current Rating (Amps) | Contact Finish | Features | Termination | Number of Rows | Contact Type | Backset Spacing | Backset Spacing | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | -40 C | 105 ░C | Thermoplastic Glass Filled | UL94 V-0 | 2 (DA A) - 3W3 | 30 Áin | 0.76 Ám | Combo D-Sub | Through Hole | Housing/Shell | 4-40 | Plug Male Pins | 3 | 55 A | Gold | Grounding Indents Mounting Brackets | Solder | 1 | Power | |||
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | -40 C | 105 ░C | Thermoplastic Glass Filled | UL94 V-0 | 2 (DA A) - 3W3 | 30 Áin | 0.76 Ám | Combo D-Sub | Right Angle Through Hole | Housing/Shell | 4-40 | Receptacle Female Sockets | 3 | 55 A | Gold | Mounting Brackets | Solder | 1 | Power | 0.478 in | 12.14 mm | |
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | -40 C | 105 ░C | Thermoplastic Glass Filled | UL94 V-0 | 2 (DA A) - 3W3 | 30 Áin | 0.76 Ám | Combo D-Sub | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 3 | 55 A | Gold | Crimp | 1 | Power | 8 AWG | ||||
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | -40 C | 105 ░C | Thermoplastic Glass Filled | UL94 V-0 | 2 (DA A) - 3W3 | 30 Áin | 0.76 Ám | Combo D-Sub | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Plug Male Pins | 3 | 55 A | Gold | 1 | Power | ||||||
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | -40 C | 105 ░C | Thermoplastic Glass Filled | UL94 V-0 | 2 (DA A) - 3W3 | 30 Áin | 0.76 Ám | Combo D-Sub | Through Hole | Board Side (4-40) | Receptacle Female Sockets | 3 | 55 A | Gold | Board Lock | Solder | 1 | Power | ||||
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | -40 C | 105 ░C | Thermoplastic Glass Filled | UL94 V-0 | 2 (DA A) - 3W3 | 30 Áin | 0.76 Ám | Combo D-Sub | Right Angle Through Hole | Housing/Shell | 4-40 | Plug Male Pins | 3 | 55 A | Gold | Grounding Indents Mounting Brackets | Solder | 1 | Power | 0.478 in | 12.14 mm | |
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | -40 C | 105 ░C | Thermoplastic Glass Filled | UL94 V-0 | 2 (DA A) - 3W3 | 30 Áin | 0.76 Ám | Combo D-Sub | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 3 | 55 A | Gold | 1 | Power | ||||||
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | -40 C | 105 ░C | Thermoplastic Glass Filled | UL94 V-0 | 2 (DA A) - 3W3 | 30 Áin | 0.76 Ám | Combo D-Sub | Right Angle Through Hole | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 3 | 55 A | Gold | Solder | 1 | Power | 0.478 in | 12.14 mm | |||
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | -40 C | 105 ░C | Thermoplastic Glass Filled | UL94 V-0 | 2 (DA A) - 3W3 | 30 Áin | 0.76 Ám | Combo D-Sub | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 3 | 55 A | Gold | 1 | Power |
