PXG.M0 Series
Manufacturer: LEMO
Beta
⌘K

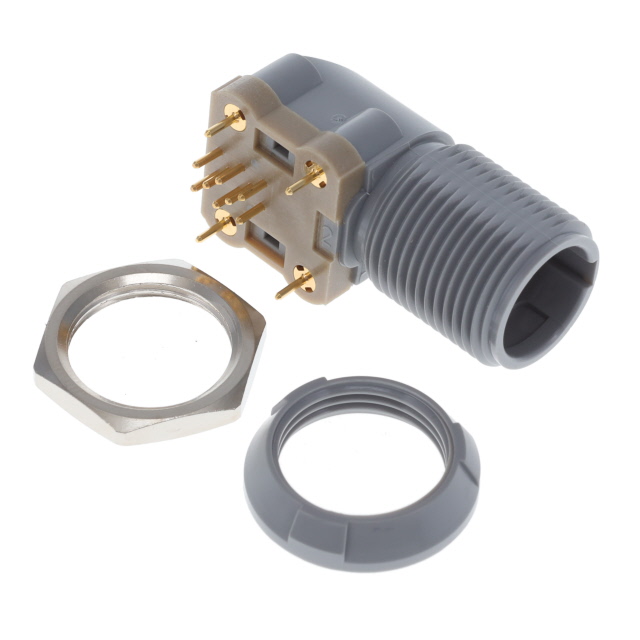

CONN RCPT FMALE 8POS GOLD SOLDER
| Part | Fastening Type | Contact Finish - Mating | Applications | Mounting Type | Connector Type | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Current Rating (Amps) | Color | Backshell Material, Plating | Orientation | Mounting Feature | Shell Size - Insert | Features | Number of Positions | Ingress Protection | Shell Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Detent Lock Push-Pull | Gold | Automotive Industrial Medical Testing Equipment & Measurement | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Unshielded | 150 °C | -50 °C | Plastic | 5 A | Blue Gray | Polysulfone (PSU) | G | Bulkhead - Front or Rear Side Nut | M08 | Backshell | 8 | IP50 | Polysulfone (PSU) | Solder |
LEMO | Detent Lock Push-Pull | Gold | Automotive Industrial Medical Testing Equipment & Measurement | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Unshielded | 150 °C | -50 °C | Plastic | 5 A | Gray | Polysulfone (PSU) | G | Bulkhead - Front or Rear Side Nut | Backshell | 7 | IP50 | Polysulfone (PSU) | Solder | |
 LEMO | Detent Lock Push-Pull | Gold | Automotive Industrial Medical Testing Equipment & Measurement | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Unshielded | 150 °C | -50 °C | Plastic | 5 A | Gray | Polysulfone (PSU) | G | Bulkhead - Front or Rear Side Nut | M08 | Backshell | 8 | IP50 | Polysulfone (PSU) | Solder |
LEMO | Detent Lock Push-Pull | Gold | Automotive Industrial Medical Testing Equipment & Measurement | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Unshielded | 150 °C | -50 °C | Plastic | 7 A | Gray | Polysulfone (PSU) | G | Bulkhead - Front or Rear Side Nut | M05 | Backshell | IP50 | Polysulfone (PSU) | Solder | |
LEMO | Detent Lock Push-Pull | Gold | Automotive Industrial Medical Testing Equipment & Measurement | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Unshielded | 150 °C | -50 °C | Plastic | 7 A | Gray White | Polysulfone (PSU) | G | Bulkhead - Front or Rear Side Nut | M05 | Backshell | IP50 | Polysulfone (PSU) | Solder | |
LEMO | Detent Lock Push-Pull | Gold | Automotive Industrial Medical Testing Equipment & Measurement | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Unshielded | 150 °C | -50 °C | Plastic | 8 A | Gray | Polysulfone (PSU) | G | Bulkhead - Front or Rear Side Nut | M04 | Backshell | 4 | IP50 | Polysulfone (PSU) | Solder |
LEMO | Detent Lock Push-Pull | Gold | Automotive Industrial Medical Testing Equipment & Measurement | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Unshielded | 150 °C | -50 °C | Plastic | 6 A | Gray | Polysulfone (PSU) | G | Bulkhead - Front or Rear Side Nut | M06 | Backshell | 6 | IP50 | Polysulfone (PSU) | Solder |
LEMO | Detent Lock Push-Pull | Gold | Automotive Industrial Medical Testing Equipment & Measurement | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Unshielded | 150 °C | -50 °C | Plastic | 10 A | Gray | Polysulfone (PSU) | G | Bulkhead - Front or Rear Side Nut | M02 | Backshell | 2 | IP50 | Polysulfone (PSU) | Solder |
LEMO | Detent Lock Push-Pull | Gold | Automotive Industrial Medical Testing Equipment & Measurement | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Unshielded | 150 °C | -50 °C | Plastic | 3 A | Gray | Polysulfone (PSU) | G | Bulkhead - Front or Rear Side Nut | M09 | Backshell | 9 | IP50 | Polysulfone (PSU) | Solder |
