A22KH Series

Catalog

PROCESS SEALED SUBMINIATURE TOGGLE

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Bushing Thread	Mounting Type	Actuator Length [x]	Termination Style	Illumination	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Circuit	Voltage Rating - DC	Switch Function	Mechanical Life	Approval Agency	Actuator Marking	Color - Actuator/Cap

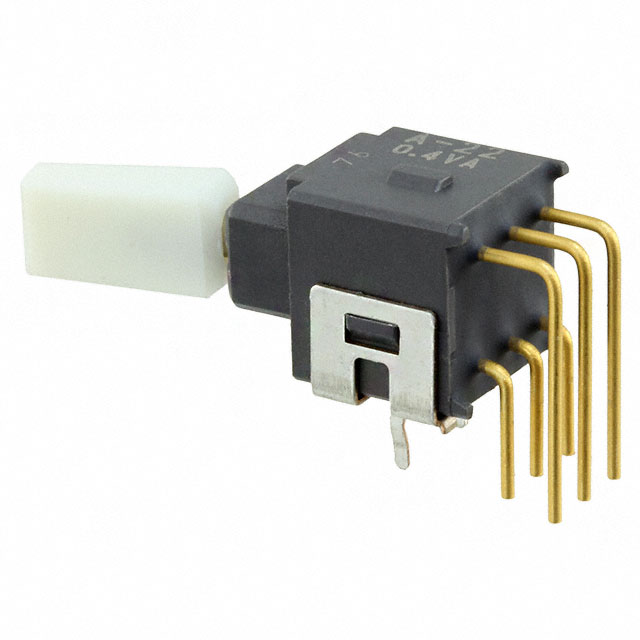

NKK Switches A22KH-AB	Glass Filled Nylon Polyamide (PA)	50000 Cycles	28 V	Unthreaded Square	Right Angle Through Hole	9.4 mm	PC Pin	Non-Illuminated	Snap On Paddle	0.4 VA	85 °C	-30 ░C	White Actuator	DPDT	28 V	On-On
NKK Switches A22KH-AA	Glass Filled Nylon Polyamide (PA)	50000 Cycles	28 V	Unthreaded Square	Right Angle Through Hole	9.4 mm	PC Pin	Non-Illuminated	Snap On Paddle	0.4 VA	85 °C	-30 ░C	Black Actuator	DPDT	28 V	On-On
NKK Switches A22KH-BB	Glass Filled Nylon Polyamide (PA)	50000 Cycles	28 V	Unthreaded Square	Right Angle Through Hole		PC Pin	Non-Illuminated	Snap On Paddle	0.4 VA	85 °C	-30 ░C	White Actuator	DPDT	28 V	On-On
NKK Switches A22KH-CB		50000 Cycles	28 V		Right Angle Through Hole		PC Pin		Concave	0.4 VA	85 °C	-30 ░C	Process Sealed	DPDT	28 V	On-On	100000 Cycles	CSA UL	No Marking	White
