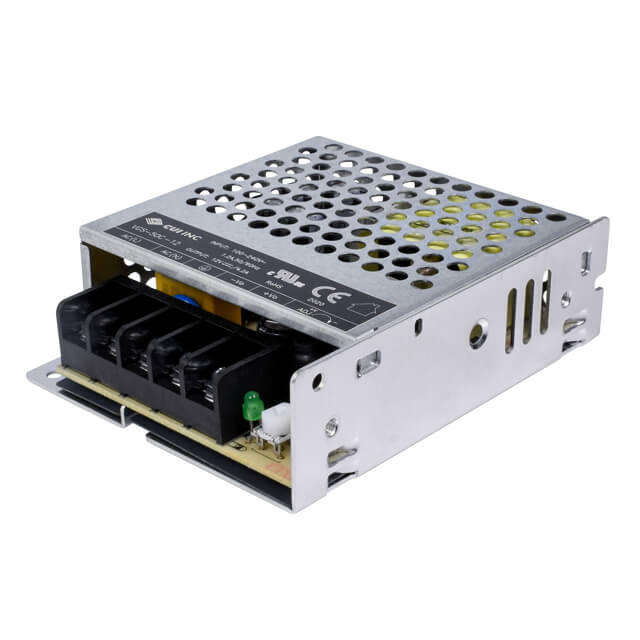

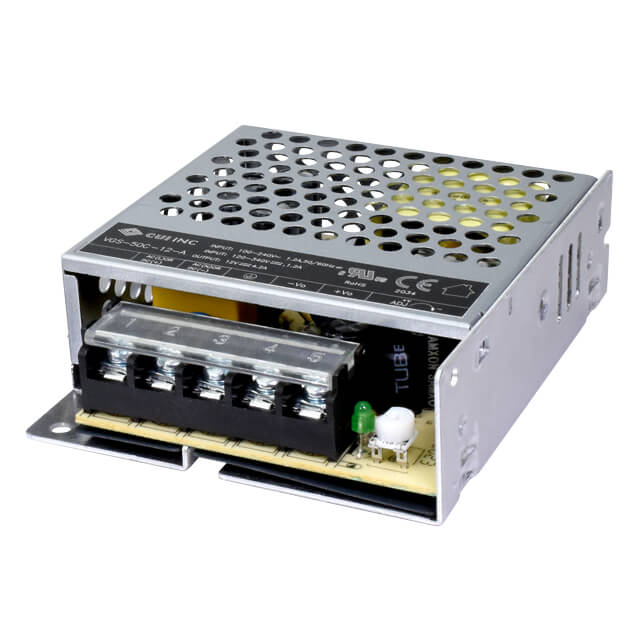

VGS-50C Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 5V 50W
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Voltage - Output 1 | Features | Current - Output 1 | Efficiency | Approval Agency | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Applications | Standard Number | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | Chassis Mount | 5 V | Adjustable Output Universal Input | 10 A | 86 % | CE cURus | 1 | 264 VAC 373 VDC | 85 VAC 120 VDC | 50 W | Household Appliances ITE (Commercial) | 60335-1 62368-1 | Enclosed | -30 °C | 70 °C | 4000 V |
 CUI Inc. | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | Chassis Mount | 48 V | Adjustable Output Universal Input | 1.1 A | 90 % | CE cURus | 1 | 264 VAC 373 VDC | 85 VAC 120 VDC | 53 W | Household Appliances ITE (Commercial) | 60335-1 62368-1 | Enclosed | -30 °C | 70 °C | 4000 V |
CUI Inc. | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | Chassis Mount | 24 V | Adjustable Output Universal Input | 2.2 A | 89 % | CE cURus | 1 | 264 VAC 373 VDC | 85 VAC 120 VDC | 53 W | Household Appliances ITE (Commercial) | 60335-1 62368-1 | Conformal Coated Enclosed | -30 °C | 70 °C | 4000 V |
CUI Inc. | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | Chassis Mount | 24 V | Adjustable Output Universal Input | 2.2 A | 89 % | CE cURus | 1 | 264 VAC 373 VDC | 85 VAC 120 VDC | 53 W | Household Appliances ITE (Commercial) | 60335-1 62368-1 | Enclosed | -30 °C | 70 °C | 4000 V |
CUI Inc. | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | Chassis Mount | 12 V | Adjustable Output Universal Input | 4.2 A | 87 % | CE cURus | 1 | 264 VAC 373 VDC | 85 VAC 120 VDC | 50 W | Household Appliances ITE (Commercial) | 60335-1 62368-1 | Enclosed | -30 °C | 70 °C | 4000 V |
CUI Inc. | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | Chassis Mount | 24 V | Adjustable Output Universal Input | 2.2 A | 89 % | CE cURus | 1 | 264 VAC 373 VDC | 85 VAC 120 VDC | 53 W | Household Appliances ITE (Commercial) | 60335-1 62368-1 | Enclosed | -30 °C | 70 °C | 4000 V |
CUI Inc. | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | Chassis Mount | 5 V | Adjustable Output Universal Input | 10 A | 86 % | CE cURus | 1 | 264 VAC 373 VDC | 85 VAC 120 VDC | 50 W | Household Appliances ITE (Commercial) | 60335-1 62368-1 | Enclosed | -30 °C | 70 °C | 4000 V |
CUI Inc. | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | Chassis Mount | 12 V | Adjustable Output Universal Input | 4.2 A | 87 % | CE cURus | 1 | 264 VAC 373 VDC | 85 VAC 120 VDC | 50 W | Household Appliances ITE (Commercial) | 60335-1 62368-1 | Enclosed | -30 °C | 70 °C | 4000 V |
