125SH-A Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 5POS 1.25MM

Part	Contact Length - Post [x]	Contact Length - Post	Connector Type	Number of Rows	Shrouding	Termination	Contact Finish - Post	Contact Type	Number of Positions Loaded	Material Flammability Rating	Style	Insulation Height [z]	Insulation Height [z]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Voltage Rating	Number of Positions	Insulation Color	Contact Material	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Features	Contact Length - Post	Insulation Material

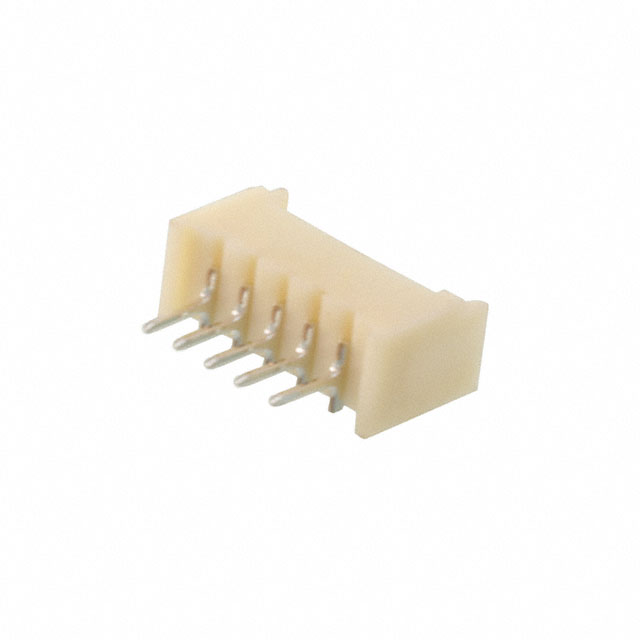

Adam Tech 125SH-A-05-TS	0.091 "	2.3 mm	Header	1	Shrouded - 4 Wall	Solder	Tin	Male Blade	All	UL94 V-0	Board to Cable/Wire	0.185 in	4.7 mm	Through Hole	85 °C	-40 C	Friction Lock	125 VAC	5	Natural	Phosphor Bronze	0.049 in	1.25 mm	Rectangular

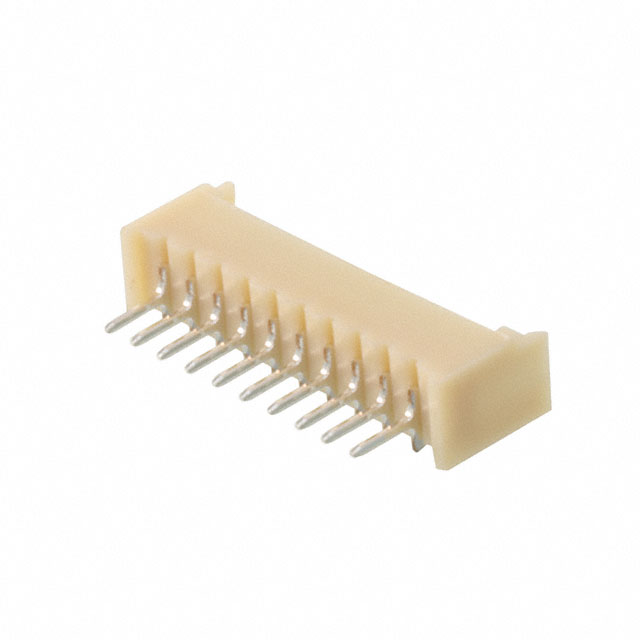

Adam Tech 125SH-A-10-TS	0.091 "	2.3 mm	Header	1	Shrouded - 4 Wall	Solder	Tin	Male Blade	All	UL94 V-0	Board to Cable/Wire	0.185 in	4.7 mm	Through Hole	85 °C	-40 C	Friction Lock	125 VAC	10	Natural	Phosphor Bronze	0.049 in	1.25 mm	Rectangular

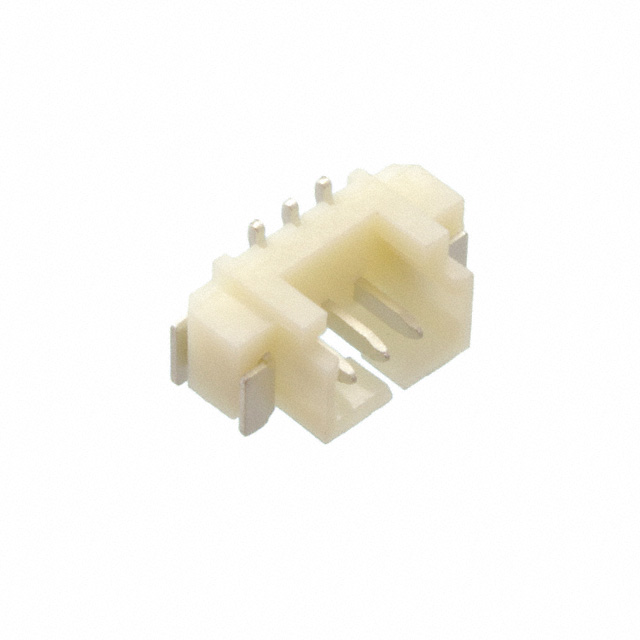

Adam Tech 125SH-A-03-TS-SMT			Header	1	Shrouded - 4 Wall	Solder	Tin	Male Pin	All	UL94 V-0	Board to Cable/Wire	0.181 in	4.6 mm	Surface Mount	85 °C	-40 C	Friction Lock	250 VAC		Black	Brass	0.049 in	1.25 mm	Square	0.098 in	2.5 mm	Solder Retention

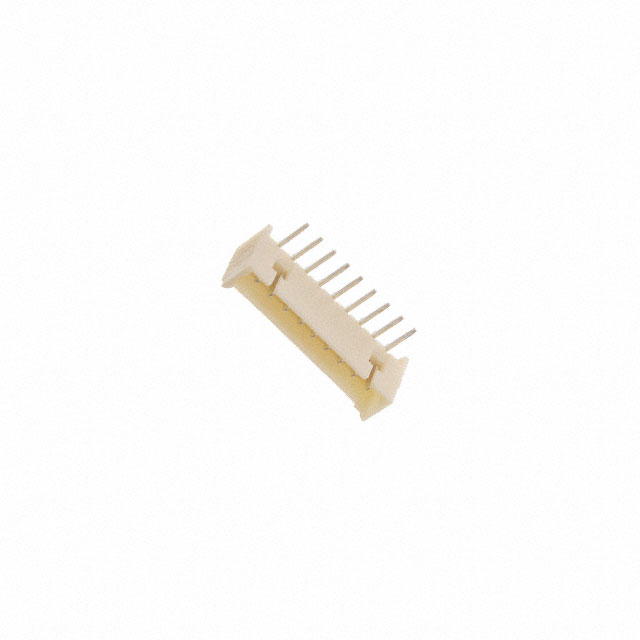

Adam Tech 125SH-A-09-TR		2.2 mm	Header	1	Shrouded - 4 Wall	Solder	Tin	Male Pin	All	UL94 V-0	Board to Cable/Wire	0.13 in	3.3 mm	Right Angle Through Hole	85 °C	-25 °C	Friction Lock	250 VAC	9	Black	Brass	0.049 in	1.25 mm	Square	0.098 in	2.5 mm		0.087 in	Nylon 4/6 Polyamide (PA46)

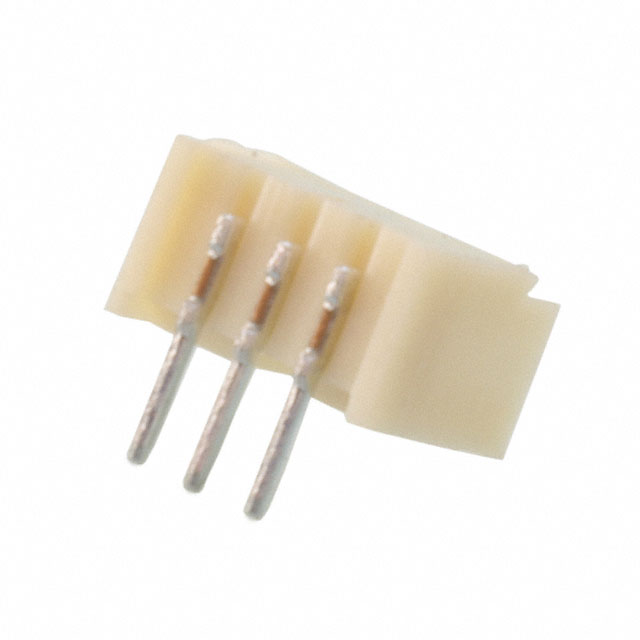

Adam Tech 125SH-A-03-TR		2.2 mm	Header	1	Shrouded - 4 Wall	Solder	Tin	Male Pin	All	UL94 V-0	Board to Cable/Wire	0.13 in	3.3 mm	Right Angle Through Hole	85 °C	-25 °C	Friction Lock	250 VAC		Black	Brass	0.049 in	1.25 mm	Square	0.098 in	2.5 mm		0.087 in	Nylon 4/6 Polyamide (PA46)

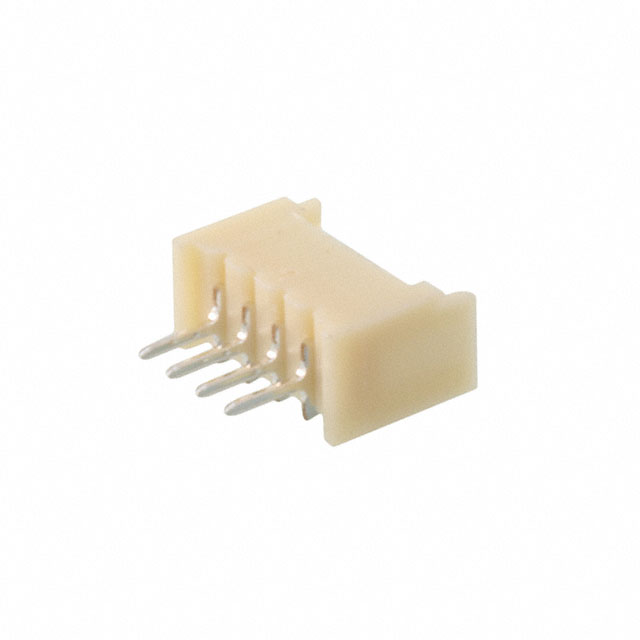

Adam Tech 125SH-A-04-TS	0.091 "	2.3 mm	Header	1	Shrouded - 4 Wall	Solder	Tin	Male Blade	All	UL94 V-0	Board to Cable/Wire	0.185 in	4.7 mm	Through Hole	85 °C	-40 C	Friction Lock	125 VAC	4	Natural	Phosphor Bronze	0.049 in	1.25 mm	Rectangular

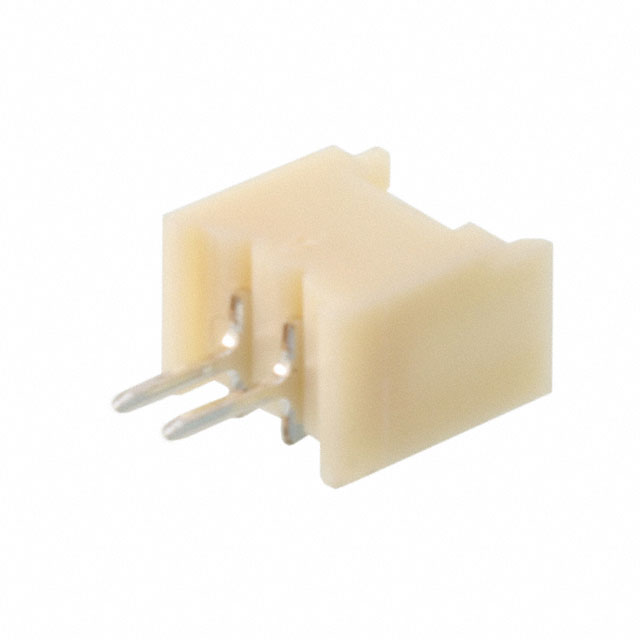

Adam Tech 125SH-A-02-TS	0.091 "	2.3 mm	Header	1	Shrouded - 4 Wall	Solder	Tin	Male Blade	All	UL94 V-0	Board to Cable/Wire	0.185 in	4.7 mm	Through Hole	85 °C	-40 C	Friction Lock	125 VAC	2	Natural	Phosphor Bronze	0.049 in	1.25 mm	Rectangular

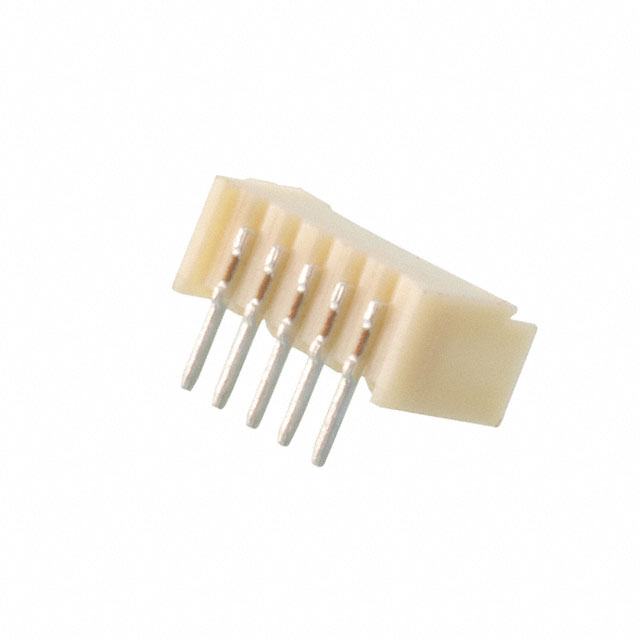

Adam Tech 125SH-A-05-TR		2.2 mm	Header	1	Shrouded - 4 Wall	Solder	Tin	Male Pin	All	UL94 V-0	Board to Cable/Wire	0.13 in	3.3 mm	Right Angle Through Hole	85 °C	-25 °C	Friction Lock	250 VAC	5	Black	Brass	0.049 in	1.25 mm	Square	0.098 in	2.5 mm		0.087 in	Nylon 4/6 Polyamide (PA46)

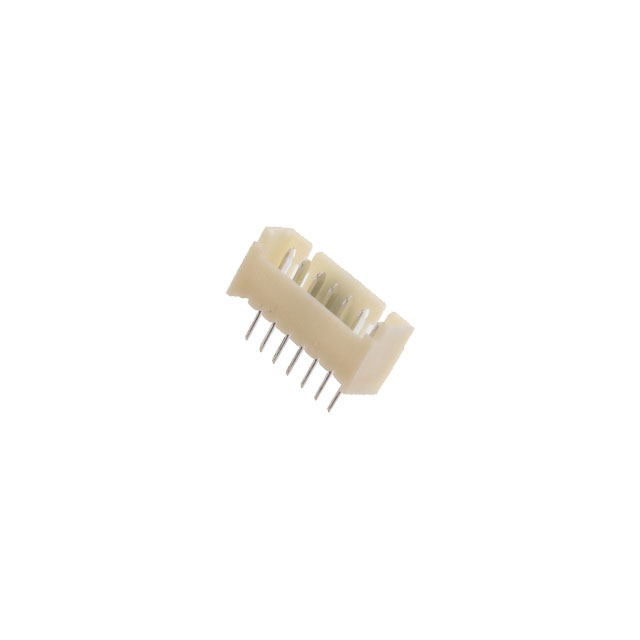

Adam Tech 125SH-A-07-TS	0.091 "	2.3 mm	Header	1	Shrouded - 4 Wall	Solder	Tin	Male Blade	All	UL94 V-0	Board to Cable/Wire	0.185 in	4.7 mm	Through Hole	85 °C	-40 C	Friction Lock	125 VAC	7	Natural	Phosphor Bronze	0.049 in	1.25 mm	Rectangular

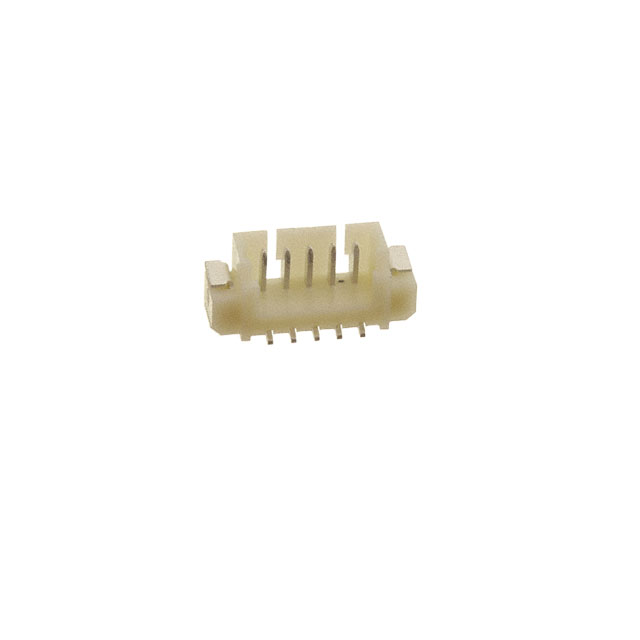

Adam Tech 125SH-A-05-TS-SMT			Header	1	Shrouded - 4 Wall	Solder	Tin	Male Pin	All	UL94 V-0	Board to Cable/Wire	0.181 in	4.6 mm	Surface Mount	85 °C	-40 C	Friction Lock	250 VAC	5	Black	Brass	0.049 in	1.25 mm	Square	0.098 in	2.5 mm	Solder Retention
