1533R Series
Manufacturer: Belden Inc.
Beta
⌘K

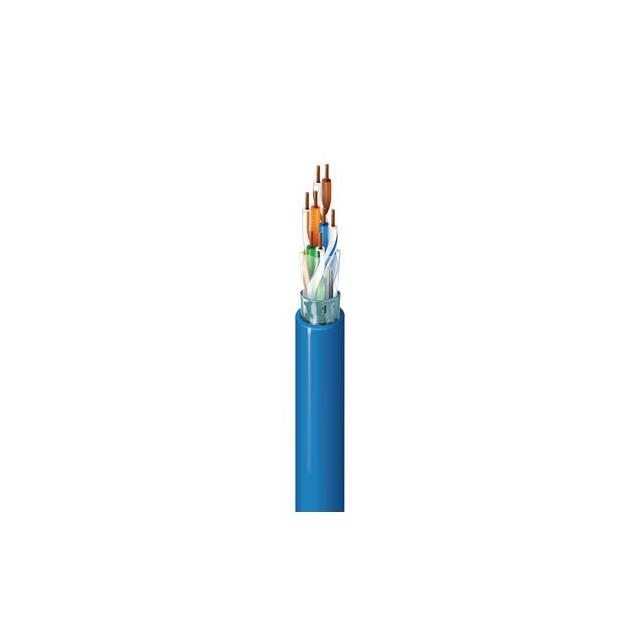

CAT5E 4PR F/UTP CMR REEL
| Part | Shield Coverage | Shield Material | Cable Type | Jacket Color | Shield Type | Ratings | Usage | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Voltage | Features | Conductor Insulation | Conductor Insulation | Number of Conductors | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Multi-Pair Cat5e | Blue | Foil | UL Style CMR | Ethernet | Copper Bare | 24 AWG | Poly-Vinyl Chloride (PVC) Riser | 300 VDC | Drain Wire | Polyolefin | PO | 8 | 304.8 m | 1000 ft | 6.6 mm | 0.26 in | Solid |
 Belden Inc. | 100 % | Aluminum Polyester | Multi-Pair Cat5e | Yellow | Foil | UL Style CMR | Ethernet | Copper Bare | 24 AWG | Poly-Vinyl Chloride (PVC) Riser | 300 VDC | Drain Wire | Polyolefin | PO | 8 | 304.8 m | 1000 ft | 6.6 mm | 0.26 in | Solid |
 Belden Inc. | 100 % | Aluminum Polyester | Multi-Pair Cat5e | Gray | Foil | UL Style CMR | Ethernet | Copper Bare | 24 AWG | Poly-Vinyl Chloride (PVC) Riser | 300 VDC | Drain Wire | Polyolefin | PO | 8 | 304.8 m | 1000 ft | 6.6 mm | 0.26 in | Solid |
Belden Inc. | 100 % | Aluminum Polyester | Multi-Pair Cat5e | Gray | Foil | UL Style CMR | Ethernet | Copper Bare | 24 AWG | Poly-Vinyl Chloride (PVC) Riser | 300 VDC | Drain Wire | Polyolefin | PO | 8 | 304.8 m | 1000 ft | 6.6 mm | 0.26 in | Solid |
