MT1000 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEATSHRINK 1/16"X2500' QTY=5000

Part	Color	Type	Features	Recovered Wall Thickness	Recovered Wall Thickness	Material	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Spool Size [x]	Spool Size [x]	Length
TE Connectivity AMP Connectors MT1000-1/16-X-SP	Clear	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant	0.01 in	0.25 mm	Fluoropolymer	155 °C	1.6 mm	0.063 in	0.031 in	0.79 mm	1	2	762 m	2500 ft	-55 C	150 °C
TE Connectivity AMP Connectors MT1000-NO.2-0-STK	Black	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant			Fluoropolymer	155 °C					1	2			-55 C	150 °C	4 ft	1.22 m
TE Connectivity AMP Connectors MT1000-3/16-0-STK	Black	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant	0.01 in	0.25 mm	Fluoropolymer	155 °C	4.75 mm	0.187 "	0.093 in	2.36 mm	1	2			-55 C	150 °C	4 ft	1.22 m
TE Connectivity AMP Connectors MT1000-3/32-0-SP	Black	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant	0.01 in	0.25 mm	Fluoropolymer	155 °C	2.36 mm	0.093 "	0.046 in	1.17 mm	1	2	762 m	2500 ft	-55 C	150 °C			762 m	2500 '	Enter Number of Feet in Order Quantity

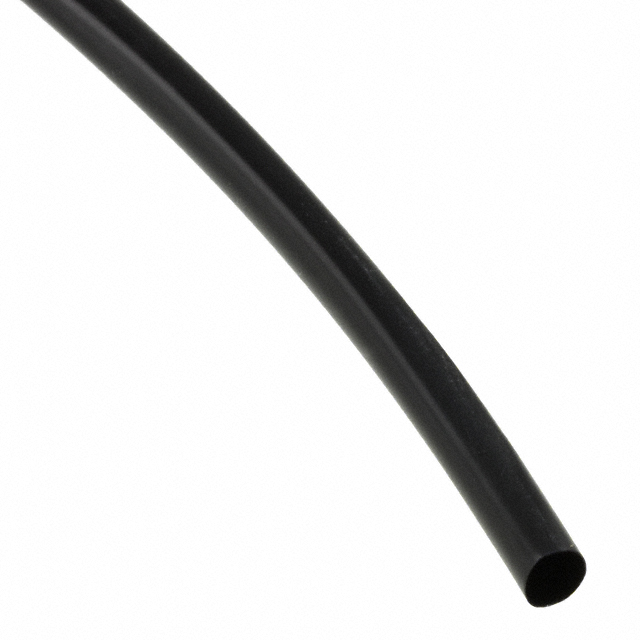

TE Connectivity AMP Connectors MT1000-3/16-0-SP	Black	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant	0.01 in	0.25 mm	Fluoropolymer	155 °C	4.75 mm	0.187 "	0.093 in	2.36 mm	1	2	381 m	1250 ft	-55 C	150 °C
TE Connectivity AMP Connectors MT1000-NO.551-0-SP	Black	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant			Fluoropolymer	155 °C					1	2			-55 C	150 °C
TE Connectivity AMP Connectors MT1000-1/2-0-STK	Black	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant	0.013 in	0.33 mm	Fluoropolymer	155 °C	12.7 mm	0.5 "	0.25 in	6.35 mm	1	2			-55 C	150 °C	4 ft	1.22 m
TE Connectivity AMP Connectors MT1000-0.208-0-SP	Black	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant			Fluoropolymer	155 °C	5.28 mm	0.208 in			1	2			-55 C	150 °C

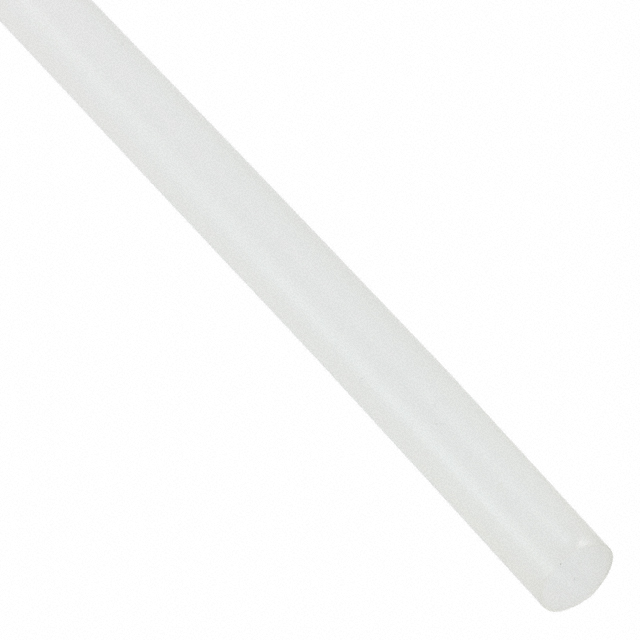

TE Connectivity AMP Connectors MT1000-3/16-X-STK	Clear	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant	0.01 in	0.25 mm	Fluoropolymer	155 °C	4.75 mm	0.187 "	0.093 in	2.36 mm	1	2			-55 C	150 °C	4 ft	1.22 m
TE Connectivity AMP Connectors MT1000-1/8-0-SP	Black	Tubing Semi Rigid	Abrasion and Cut Resistant Fluid Resistant Strain Resistant	0.01 in	0.25 mm	Fluoropolymer	155 °C	3.18 mm	0.125 in	0.062 in	1.57 mm	1	2	381 m	1250 ft	-55 C	150 °C
