845-027 Series
Manufacturer: EDAC Inc.
Beta
⌘K

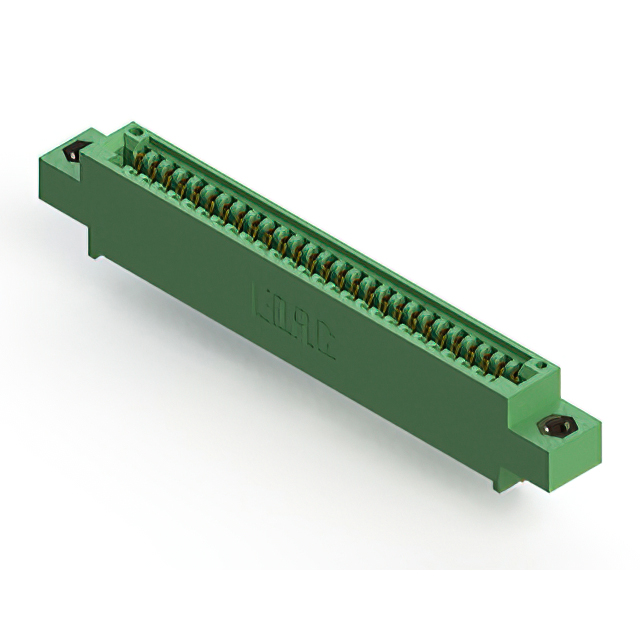

CONN EDGE SINGLE FML 27POS 0.100
| Part | Material - Insulation | Termination Rows | Card Type | Termination | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Color | Gender | Contact Type | Number of Positions/Bay/Row | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Read Out | Number of Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

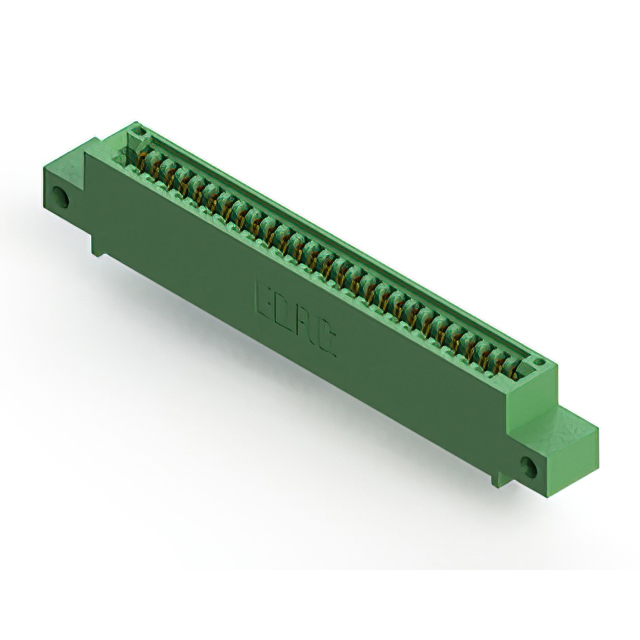

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Solder | Copper Alloy | Right Angle Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 0.1 " | 2.54 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Solder | Copper Alloy | Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 4-40 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Solder Eyelet(s) | Copper Alloy | Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 0.1 " | 2.54 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Solder | Copper Alloy | Right Angle Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Solder | Copper Alloy | Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Solder | Copper Alloy | Right Angle Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | Flush Mount M3 Threaded Insert Top Opening | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Wire Wrap | Copper Alloy | Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Solder Eyelet(s) | Copper Alloy | Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 4-40 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Solder | Copper Alloy | Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Wire Wrap | Copper Alloy | Through Hole | 125 °C | -40 C | 27 | 0.25 Ám | 10 Áin | Green | Female | Cantilever | 27 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 0.1 " | 2.54 mm |
