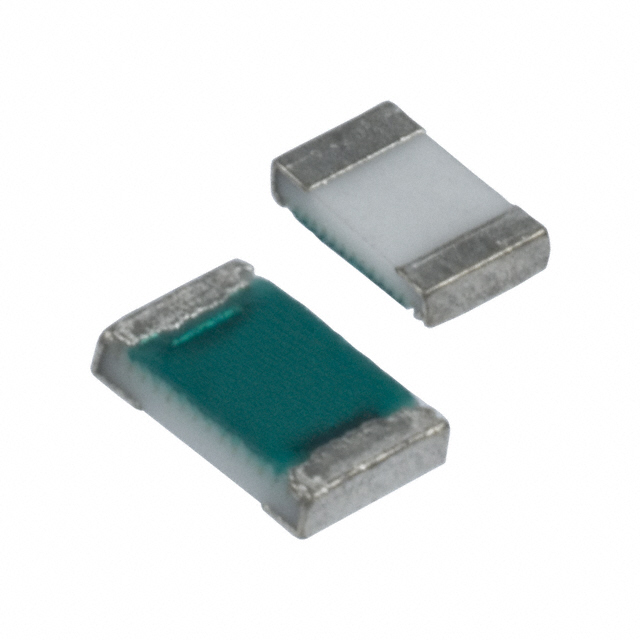

RL Series

Manufacturer: Susumu

Catalog

CURRENT SENSE RESISTORS - SMD 1/5W 1.3 OHM 1% 0603 200PPM

Part	Tolerance	Package / Case	Package / Case	Temperature Coefficient [Max]	Number of Terminations [custom]	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Resistance	Supplier Device Package	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Susumu RL0816S-1R3-F	1 %	1608 Metric	0603	200 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	0.2 W	0.2 W	1.3 Ohms
Susumu RL1220S-R30-G	2 %		0805	200 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense		0.02 in	0.049 "	2 mm		0.079 in	0.333 W	0.3333333333333333 W	0.3 Ohms	0805	1.25 mm	0.5 mm
Susumu RL0816S-4R7-F	1 %	1608 Metric	0603	200 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	0.2 W	0.2 W	4.7 Ohms
Susumu RL0816S-R22-F	1 %	1608 Metric	0603	200 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	0.2 W	0.2 W	220 mOhms
Susumu RL0816S-R10-F	1 %	1608 Metric	0603	200 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	0.2 W	0.2 W	0.1 Ohms
Susumu RL0510S-3R6-F	1 %		0402 (1005 Metric)	200 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense			0.02 in	1 mm		0.039 "	0.167 W	0.16666666666666666 W	3.6 Ohms	0402	0.5 mm		0.018 "	0.45 mm
Susumu RL0816S-150-F	1 %	1608 Metric	0603	200 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	0.2 W	0.2 W	15 Ohms
Susumu RL1220T-R039-J	5 %		0805	350 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense		0.02 in	0.049 "	2 mm		0.079 in	0.25 W	0.25 W	39 mOhms	0805	1.25 mm	0.5 mm
Susumu RL0510S-1R5-F	1 %		0402 (1005 Metric)	200 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense			0.02 in	1 mm		0.039 "	0.167 W	0.16666666666666666 W	1.5 Ohms	0402	0.5 mm		0.018 "	0.45 mm
Susumu RL1632R-R240-F	1 %		1206 (3216 Metric)	100 ppm/°C	2	Thin Film	-55 C	125 °C	Current Sense	0.65 mm	0.026 in	0.063 "	3.2 mm		0.126 "	0.5 W	0.5 W	240 mOhms	1206	1.6 mm
