BP MLO Series

Catalog

SIGNAL CONDITIONING SIZE 5021 FC1.19GHZ PB 0.99 TO 1.44GHZ

Part	Bandwidth	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Filter Type	Frequency	Mounting Type	Insertion Loss	Height (Max) [z]	Height (Max) [z]	Ripple

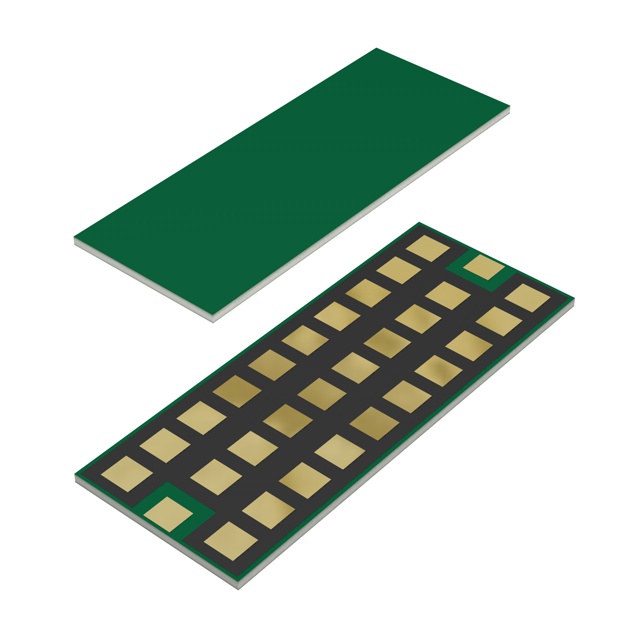

KYOCERA AVX BP0FA1190A7TR	450 MHz	31-ULGA	0.206 in	0.866 "	5.25 mm	21.99 mm	Band Pass	1.19 GHz	Surface Mount	1.56 dB	0.022 in 0.56 mm
KYOCERA AVX BP0DA0595A700	289 MHz	25-SMD No Lead	0.156 in	0.402 in	3.97 mm	10.2 mm	Band Pass	595 MHz	Surface Mount	5 dB	1.02 mm	0.04 in	1.5 dB
KYOCERA AVX BP0CA1070A700	465 MHz	23-SMD No Lead	0.156 in	0.341 in	3.98 mm	8.67 mm	Band Pass	1.07 GHz	Surface Mount	5 dB	1.02 mm	0.04 in	1.5 dB
KYOCERA AVX BP0DA0650A700	297 MHz	25-SMD No Lead	0.156 in	0.402 in	3.97 mm	10.2 mm	Band Pass	650 MHz	Surface Mount	5 dB	1.02 mm	0.04 in	1.5 dB
KYOCERA AVX BP0EA4440A700	2.17 GHz	30-ULGA	0.17 in	0.46 in	4.32 mm	11.68 mm	Band Pass	4.44 GHz	Surface Mount	0.98 dB	0.022 in 0.56 mm

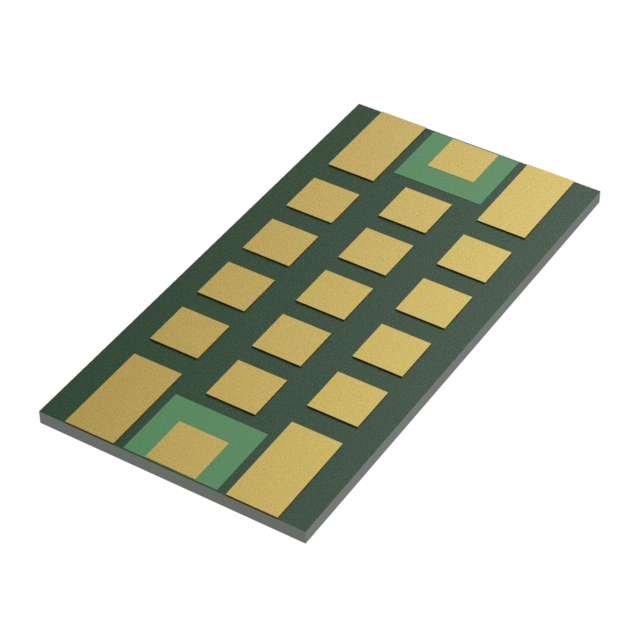

KYOCERA AVX BP0BA2150A700	829 MHz	19-SMD No Lead	0.156 in	0.306 in	3.98 mm	7.79 mm	Band Pass	2.15 GHz	Surface Mount	5 dB	1.02 mm	0.04 in	1.5 dB
KYOCERA AVX BP0FA1130A7TR	550 MHz	31-ULGA	0.206 in	0.866 "	5.25 mm	21.99 mm	Band Pass	1.13 GHz	Surface Mount	1.43 dB	0.022 in 0.56 mm
KYOCERA AVX BP0EA4649A700	1.365 GHz	30-SMD No Lead	0.17 in	0.46 in	4.32 mm	11.68 mm	Band Pass	4.649 GHz	Surface Mount	5 dB	0.022 in 0.56 mm		1.5 dB
