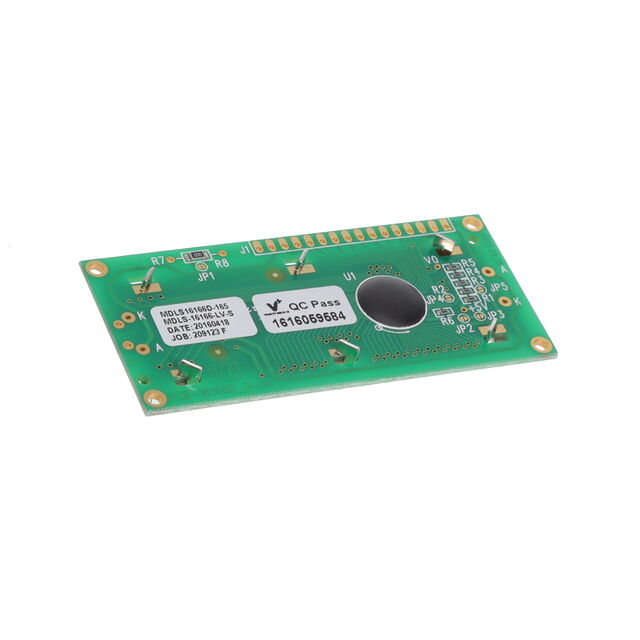

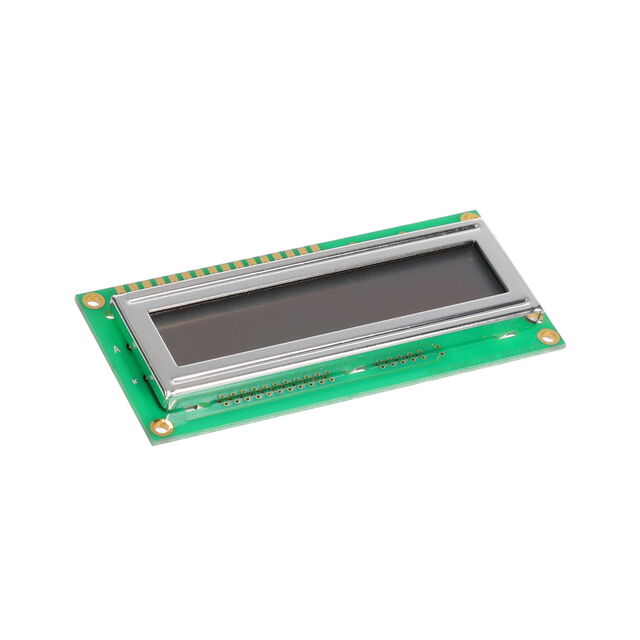

MDLS16166 Series
Manufacturer: Varitronix
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
LCD MOD 16 DIG 16 X 1 REFLECTIVE
| Part | Display Type | Operating Temperature (Max) | Operating Temperature (Min) | Text Color | Character Width (Dots) | Character Height (Dots) | Background Color | Interface | Display Mode | Number of Characters | Character Width | Character Height | Viewing Area Width | Viewing Area Length | Display Columns | Display Rows | Voltage - Supply | Backlight | Dot Size Width | Dot Size Height | Outline Height | Outline Width | Outline Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Varitronix | TN - Twisted Nematic | 50 °C | -5 °C | Black | 5 Dots | 8 Dots | Green | Parallel | Reflective | 16 characters | 3.15 mm | 6.3 mm | 13.8 mm | 64.5 mm | 16 | 1 | 5 VDC | Without Backlight | 0.55 mm | 0.7 mm | 6.8 mm | 36 mm | 80 mm |
