ALCOSWITCH FSMJRT Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

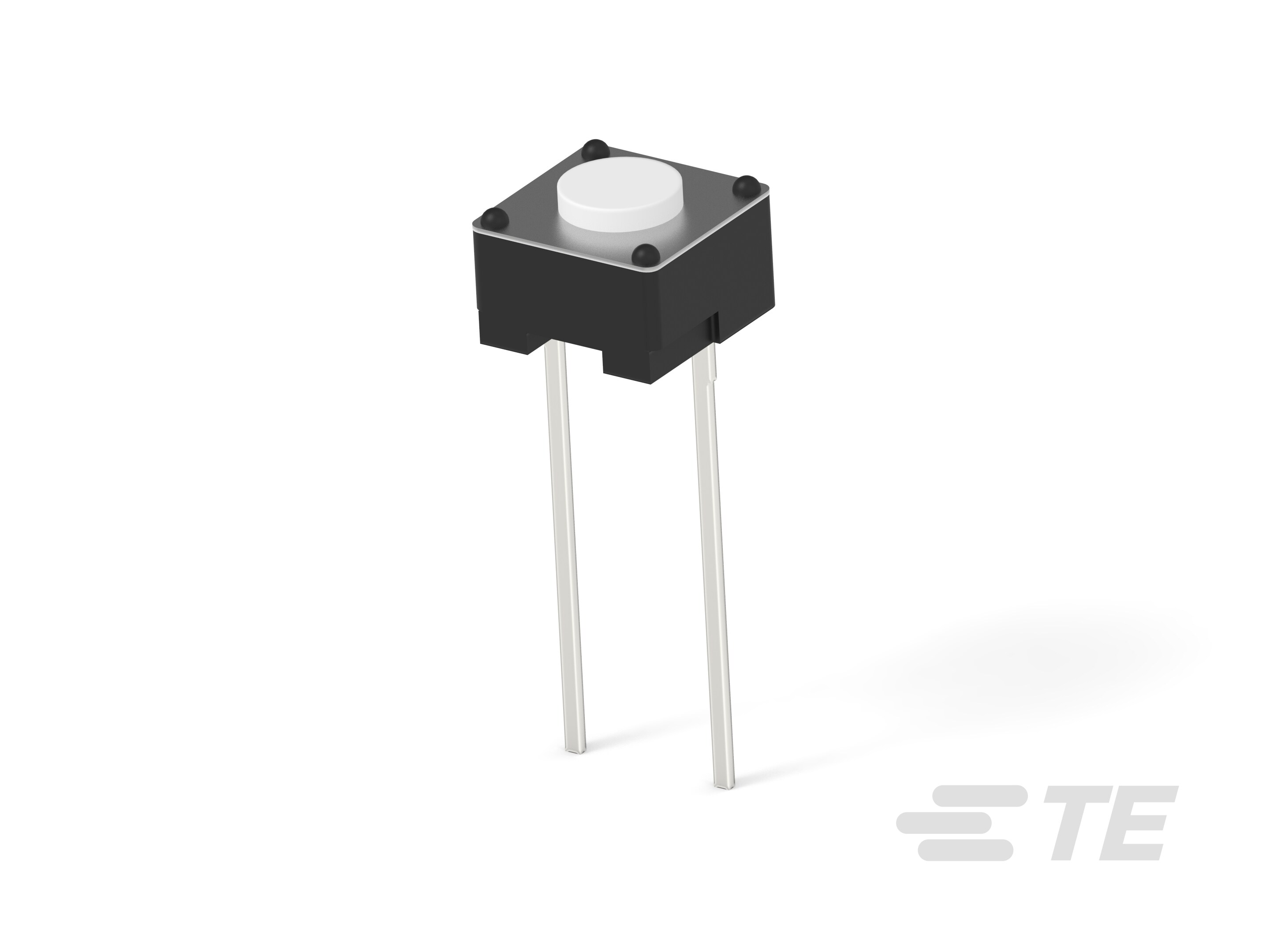

SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Termination Style | Actuator Type | Actuator Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Height off PCB, Vertical [z] | Switch Function | Contact Rating @ Voltage | Mounting Type | Outline [x] | Outline [y] | Circuit | Operating Force | Illumination | Mechanical Life | Switch Travel | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | PC Pin | Standard | Top Actuated | -35 °C | 105 ░C | 4.3 mm | Off-Mom | 0.05 A 24 VDC | Through Hole | 6 mm | 6 mm | SPST-NO | 160 gf | Non-Illuminated | |||
 TE Connectivity AMP Connectors | PC Pin | Standard | Top Actuated | -35 °C | 105 ░C | 9.5 mm | Off-Mom | 0.05 A 24 VDC | Through Hole | 6 mm | 6 mm | SPST-NO | 160 gf | Non-Illuminated | |||
 TE Connectivity AMP Connectors | PC Pin | Standard | Top Actuated | -35 °C | 105 ░C | 5 mm | Off-Mom | 0.05 A 24 VDC | Through Hole | 6 mm | 6 mm | SPST-NO | 260 gf | Non-Illuminated | 100000 Cycles | 0.25 mm | Polybutylene Terephthalate (PBT) |
TE Connectivity AMP Connectors | PC Pin | Standard | Top Actuated | -35 °C | 105 ░C | 4.3 mm | Off-Mom | 0.05 A 12 VDC | Through Hole | 6 mm | 6 mm | SPST-NO | 260 gf | Non-Illuminated |
