VL-MPEE Series

Catalog

1 GBE ETHERNET MINI PCIE MODULE

Part	Expansion Site/Bus	Function	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	Ethernet	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Digital I/O Lines	RS-232 (422, 485)	Analog Input:Output [custom]	Analog Input:Output [custom]	Video Core	Cooling Type	Video Outputs

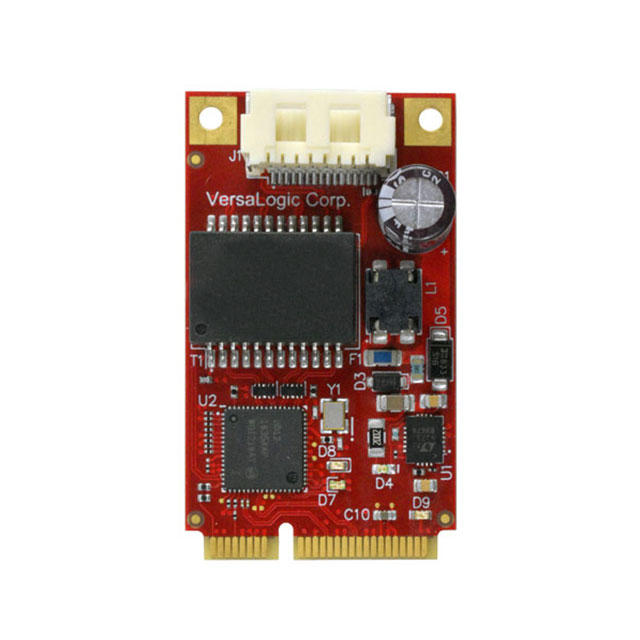

VersaLogic Corporation VL-MPEE-E6E	PCI Express	Ethernet / miniPCIe	85 °C	-40 C	Mini PCIe module (full size)	10 Mbps 100 Mbps 1000 Mbps	2.005 "	1.181 in	50.95 mm	30 mm	0.59 W

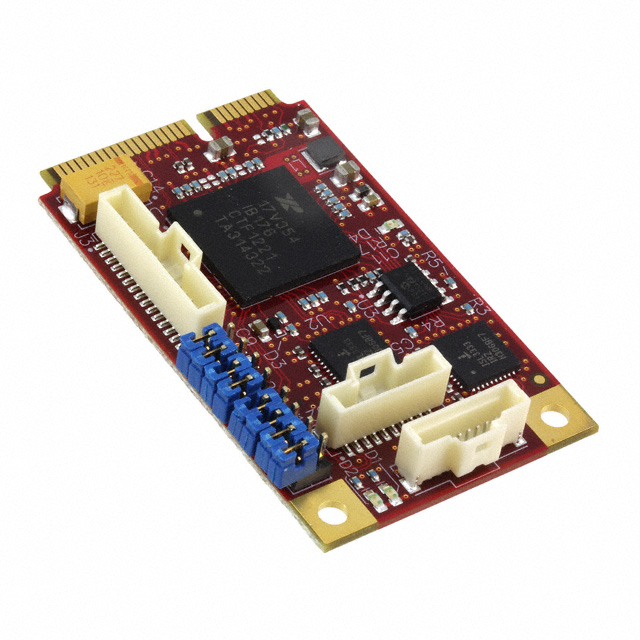

VersaLogic Corporation VL-MPEE-U2E	PCI Express	Four serial ports	85 °C	-40 C	Mini PCIe module (full size)		2.005 "	1.181 in	50.95 mm	30 mm	0.25 W	12	4

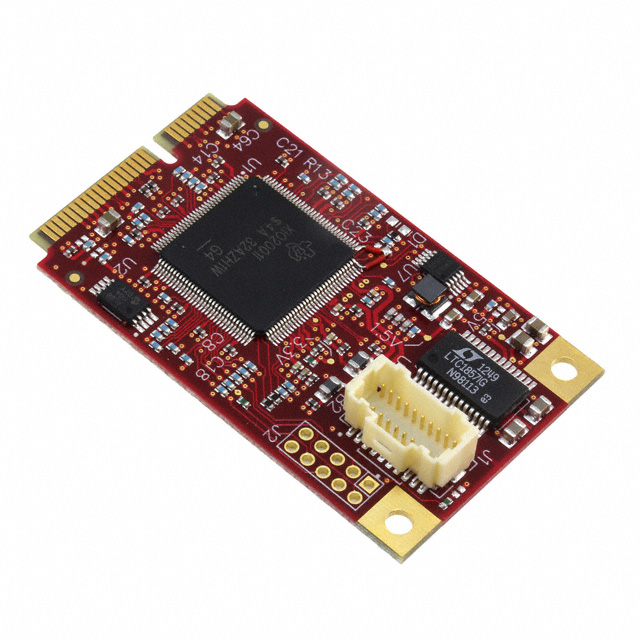

VersaLogic Corporation VL-MPEE-A2E	PCI Express	Analog Input	85 °C	-40 C	Mini PCIe module (full size)		2.005 "	1.181 in	50.95 mm	30 mm	450 mW	3		0	8
VersaLogic Corporation VL-MPEE-A1E	PCI Express	Analog Input	85 °C	-40 C	Mini PCIe module (full size)		2.005 "	1.181 in	50.95 mm	30 mm	450 mW	3		0	8

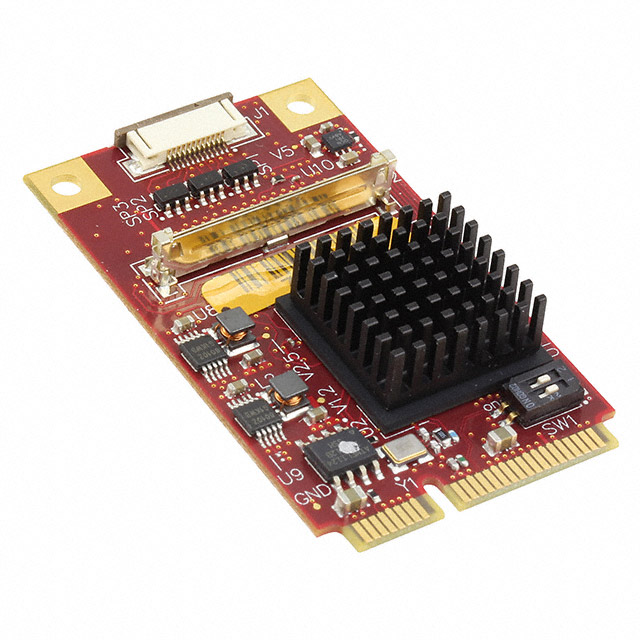

VersaLogic Corporation VL-MPEE-V5E	PCI Express	Video Card/Module	85 °C	-40 C	Mini PCIe module (full size)		2.005 "	1.181 in	50.95 mm	30 mm	1.52 W					Silicon Motion SM750 2D Graphic Accelerator	Heat Sink	LVDS VGA
VersaLogic Corporation VL-MPEE-E6E-P	PCI Express	Ethernet / miniPCIe with POE+	85 °C	-40 C	Mini PCIe module (full size)	10 Mbps 100 Mbps 1000 Mbps	2.005 "	1.181 in	50.95 mm	30 mm	0.59 W
