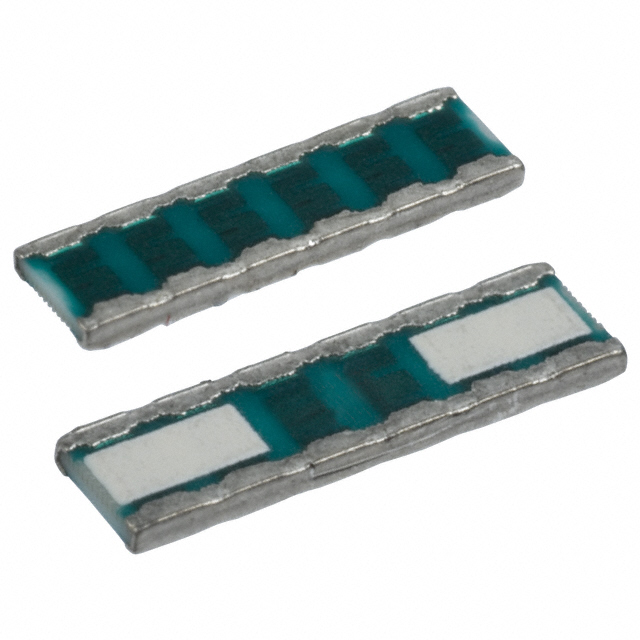

RL_W Series

Manufacturer: Susumu

Catalog

SMD CURRENT SENSE RESISTOR, 0.02 OHM, RL SERIES, 3008 WIDE [7620 METRIC], 2 W, ± 1%, THIN FILM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Composition	Package / Case	Number of Terminations [custom]	Resistance	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient [Max]	Power (Watts)	Supplier Device Package	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]
Susumu RL7520WT-R020-F	-55 C	125 °C	Thin Film	0830 Wide 3008 (2075 Metric)	2	0.02 Ohms	1 %	0.295 in 7.5 mm	0.079 in 2 mm	350 ppm/°C	2 W	0830	Current Sense	0.7 mm	0.028 "
Susumu RL3720WS-R33-F	-55 C	125 °C	Thin Film	0815 Wide 1508 (3720 Metric)	2	330 mOhms	1 %	0.148 in	0.079 in	200 ppm/°C	1 W	0815	Current Sense	0.7 mm	0.028 "	3.75 mm	2 mm
Susumu RL7520WT-R003-J	-55 C	125 °C	Thin Film	0830 Wide 3008 (2075 Metric)	2	3 mOhms	5 %	0.295 in 7.5 mm	0.079 in 2 mm	800 ppm/°C	2 W	0830	Current Sense	0.7 mm	0.028 "
Susumu RL7520WS-R22-F	-55 C	125 °C	Thin Film	0830 Wide 3008 (2075 Metric)	2	220 mOhms	1 %	0.295 in 7.5 mm	0.079 in 2 mm	200 ppm/°C	2 W	0830	Current Sense	0.7 mm	0.028 "
