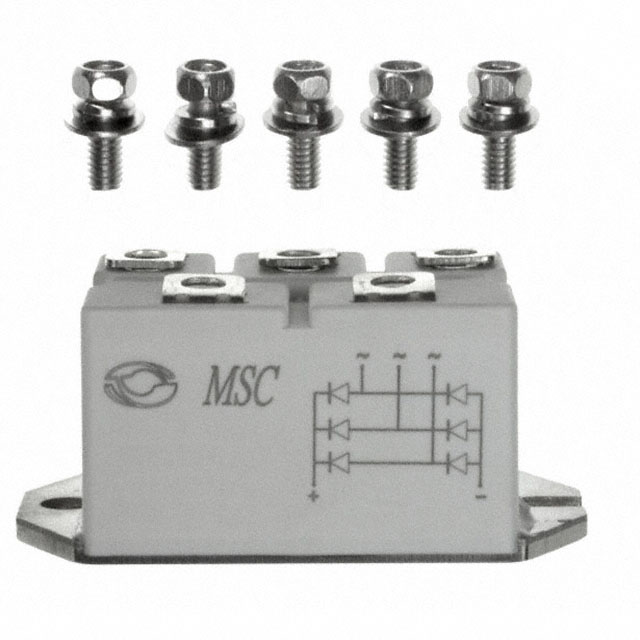

MSD75 Series

Catalog

BRIDGE RECT 3PHASE 1.8KV 75A

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If	Technology	Mounting Type	Voltage - Peak Reverse (Max)	Current - Reverse Leakage @ Vr	Diode Type	Current - Average Rectified (Io)	Supplier Device Package
Microsemi Corporation MSD75-18	M2	-40 °C	150 °C	1.6 V	Standard	Chassis Mount	1.8 kV	300 µA	Three Phase	75 A
Microsemi Corporation MSD75-16	M2	-40 °C	150 °C	1.6 V	Standard	Chassis Mount	1.6 kV	300 µA	Three Phase	75 A	SM2
Microsemi Corporation MSD75-08	M2	-40 °C	150 °C	1.6 V	Standard	Chassis Mount	800 V	300 µA	Three Phase	75 A	SM2
Microsemi Corporation MSD75-12	M2	-40 °C	150 °C	1.6 V	Standard	Chassis Mount	1.2 kV	300 µA	Three Phase	75 A	SM2
