39K102 Series
Manufacturer: Rosenberger
Beta
⌘K

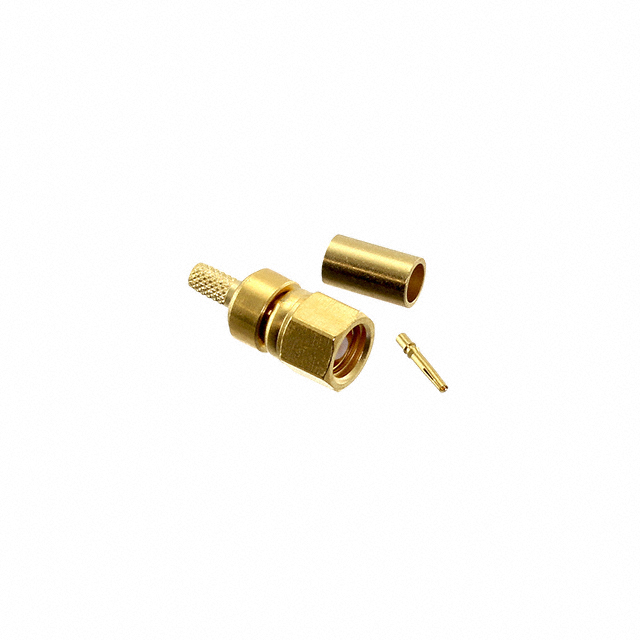

CONN SMC JACK STR 50OHM CRIMP
| Part | Mating Cycles | Voltage Rating | Body Finish | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Center Contact Plating | Impedance | Contact Termination | Connector Type | Cable Group | Number of Ports | Frequency - Max [Max] | Center Contact Material | Mounting Type | Fastening Type | Connector Style | Housing Color | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | 250 V | Gold | Brass | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Crimp | Female Socket Jack | 188A 316 RG-174A | 1 | 6000 MHz | Beryllium Copper | Free Hanging (In-Line) | Threaded | SMC | Gold | Crimp |
