PR20204H Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, THR, DUAL ROW, .100"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Contact Material | Termination | Mounting Type | Connector Type | Contact Length - Post | Contact Length - Post | Contact Length - Mating | Contact Length - Mating | Contact Finish - Mating | Number of Positions Loaded | Insulation Material | Contact Shape | Contact Finish Thickness - Mating | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Insulation Height | Insulation Height | Insulation Color | Shrouding | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

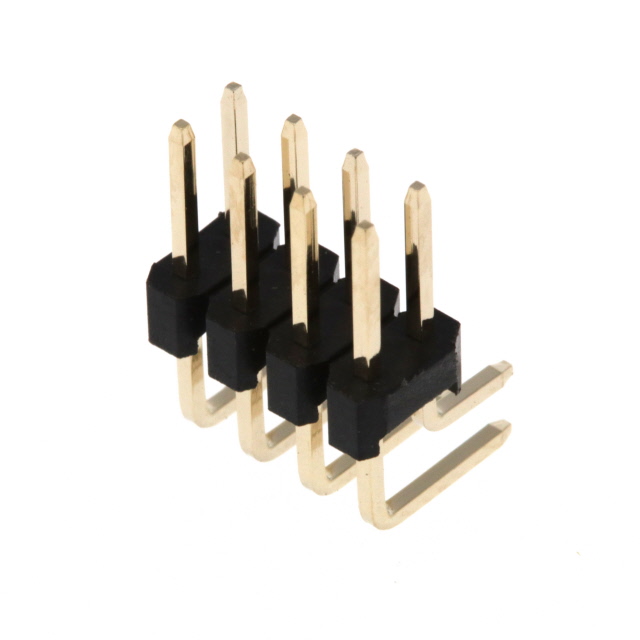

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Male Pin | 0.1 " | 2.54 mm | 2 | Copper Zinc | Solder | Right Angle Through Hole | Header | 0.118 in | 3 mm | 6 mm | 0.236 in | Gold | All | Polyethylene | Square | Flash | Push-Pull | 0.1 in | 2.54 mm | 8 | 0.098 " | 2.5 mm | Black | Unshrouded | |

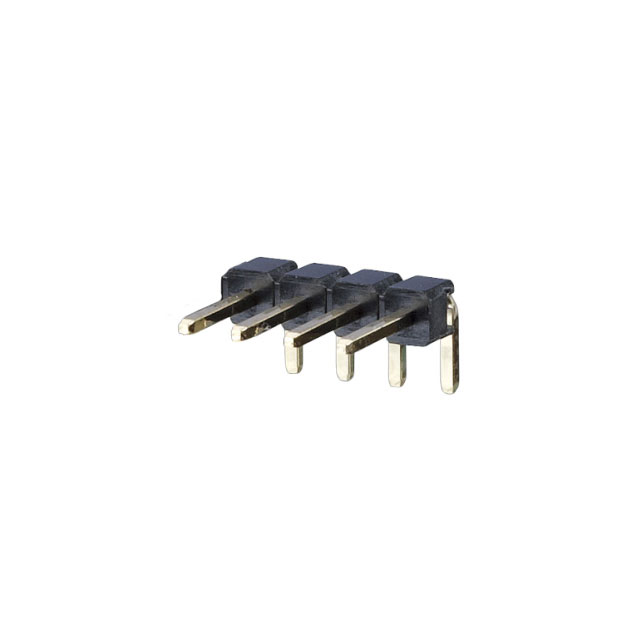

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Male Pin | 0.1 " | 2.54 mm | Copper Alloy | Solder | Right Angle Through Hole | Header | 0.118 in | 3 mm | 6 mm | 0.236 in | Gold | All | Polyethylene | Square | Flash | Push-Pull | 4 | 0.098 " | 2.5 mm | Black | Unshrouded | 1 |
