MV10 Series

Catalog

CONN SPADE TERM 10-12AWG #6 YEL

Part	Length - Termination [x]	Length - Termination [x]	Material - Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Contact Material	Insulation	Features	Mounting Type	Color	Terminal Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Thickness	Thickness	Number of Wire Entries	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [y]	Width - Outer Edges [y]
3M Electronic Specialty MV10-6FBK	0.55 in	13.97 mm	Vinyl	6.35 mm	0.25 in	7.37 mm	0.29 in	Crimp	0.32 in	8.13 mm	6 Stud	Copper ETP	Insulated	Brazed Seam	Free Hanging (In-Line)	Yellow	Standard	Tin	26.16 mm	1.03 in	10 AWG	12 AWG

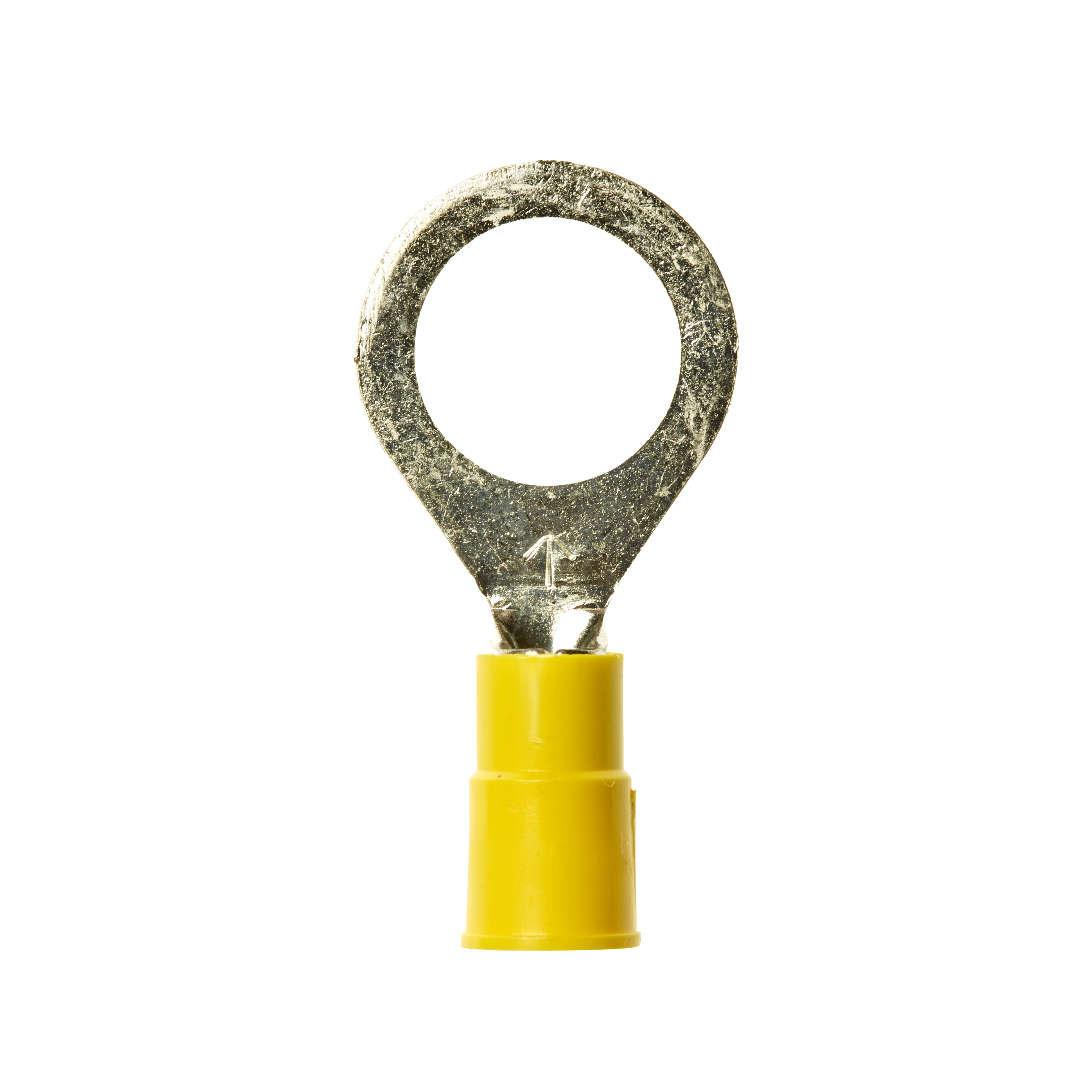

3M Electronic Specialty MV10-12RK			Vinyl	6.35 mm	0.25 in			Crimp	0.75 in	19.05 mm	0.5 Stud	Copper ETP	Insulated	Brazed Seam	Free Hanging (In-Line)	Yellow	Circular	Tin	38.1 mm	1.5 "	10 AWG	12 AWG	0.04 in	1.02 mm
3M Electronic Specialty MV10BCX-BOTTLE								Crimp					Fully Insulated			Yellow	Butt Splice Individual Openings Inline				10 AWG	12 AWG			2

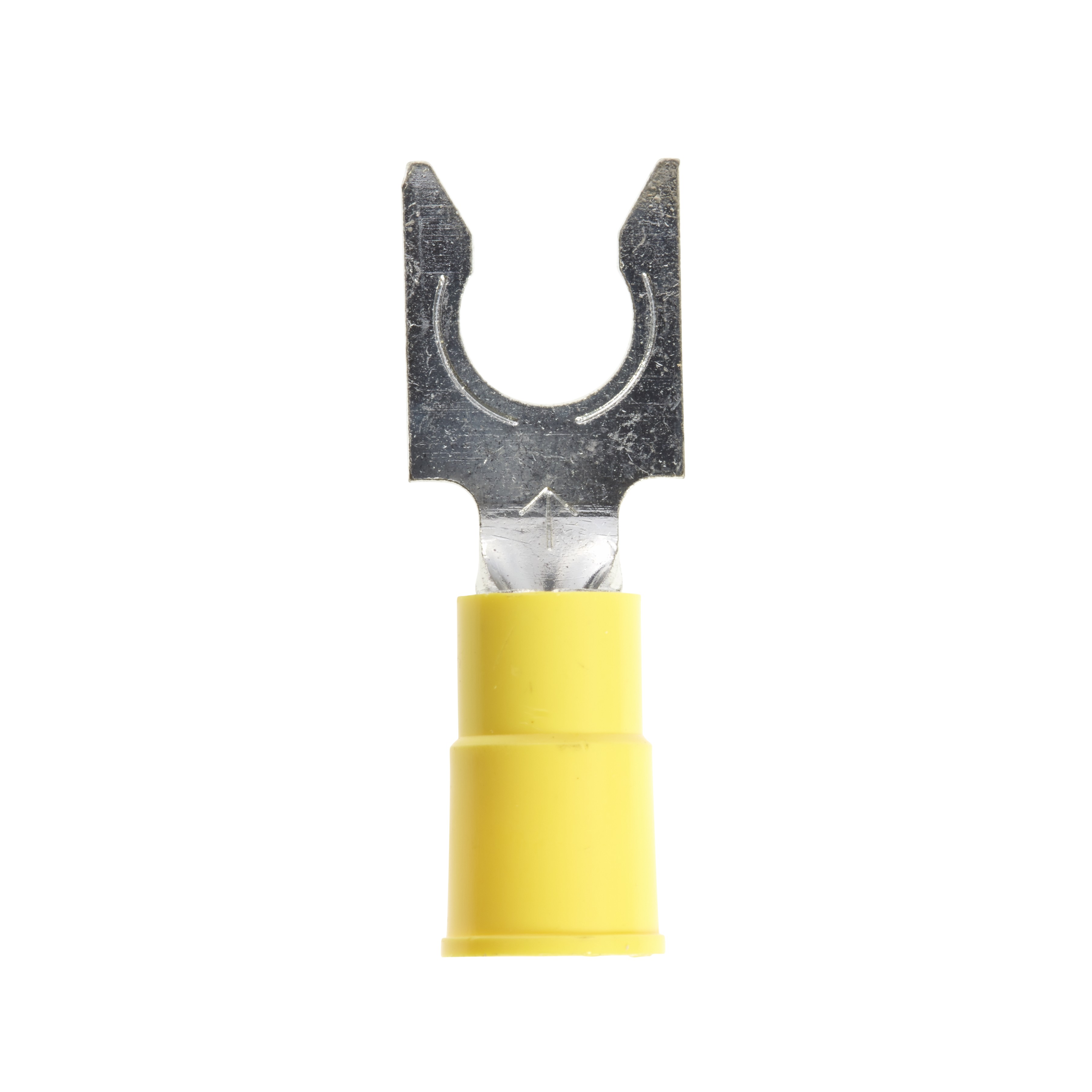

3M Electronic Specialty MV10-14FLK	0.55 in	13.97 mm	Vinyl	6.35 mm	0.25 in	11.18 mm	0.44 "	Crimp			0.25 Stud	Copper ETP	Insulated	Brazed Seam	Free Hanging (In-Line)	Yellow	Snap Spring	Tin	31.5 mm	1.24 in	10 AWG	12 AWG				0.43 in	10.92 mm

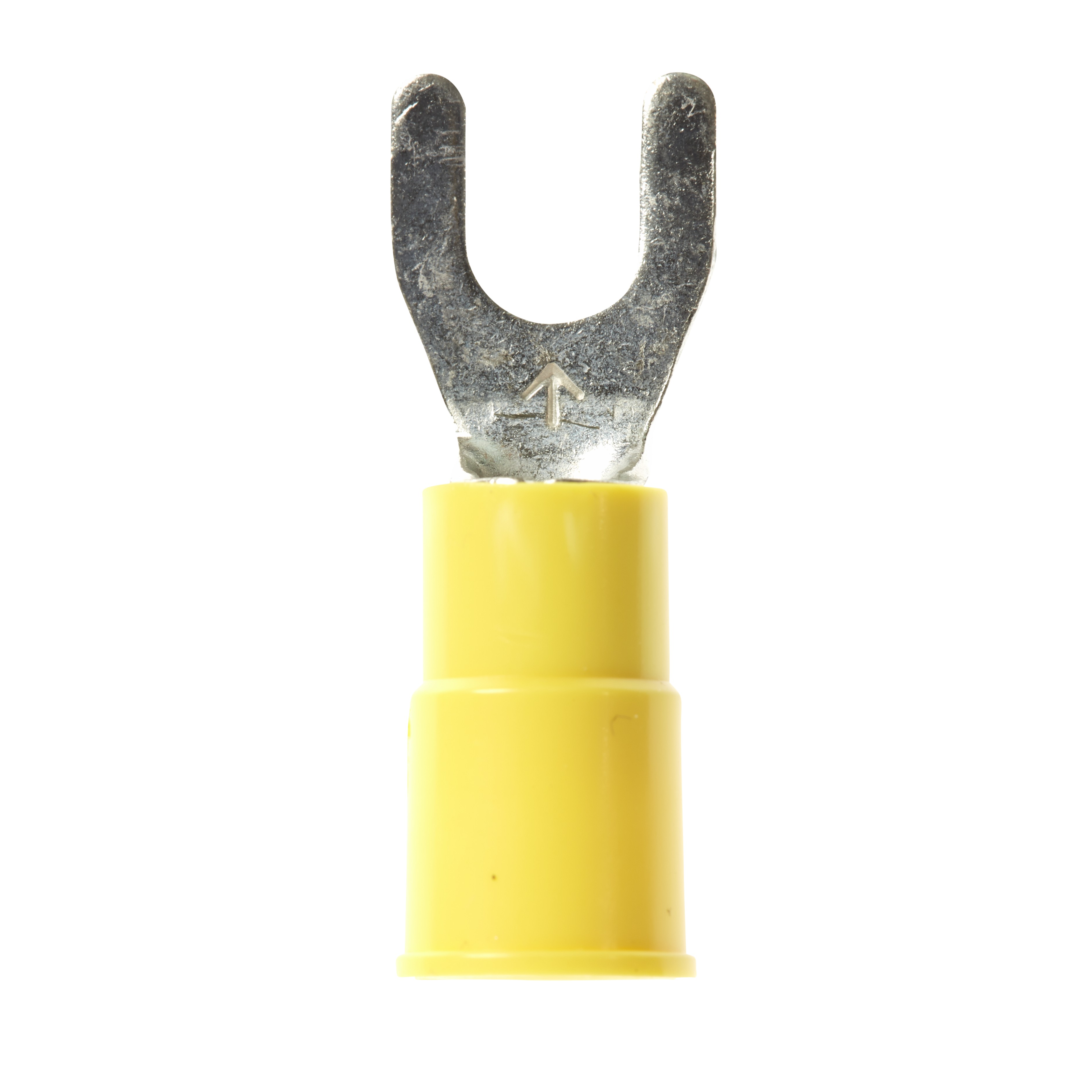

3M Electronic Specialty MV10-8FK	0.55 in	13.97 mm	Vinyl	6.35 mm	0.25 in	7.37 mm	0.29 in	Crimp	0.38 in	9.65 mm	8 Stud	Copper ETP	Insulated	Brazed Seam	Free Hanging (In-Line)	Yellow	Standard	Tin	26.16 mm	1.03 in	10 AWG	12 AWG

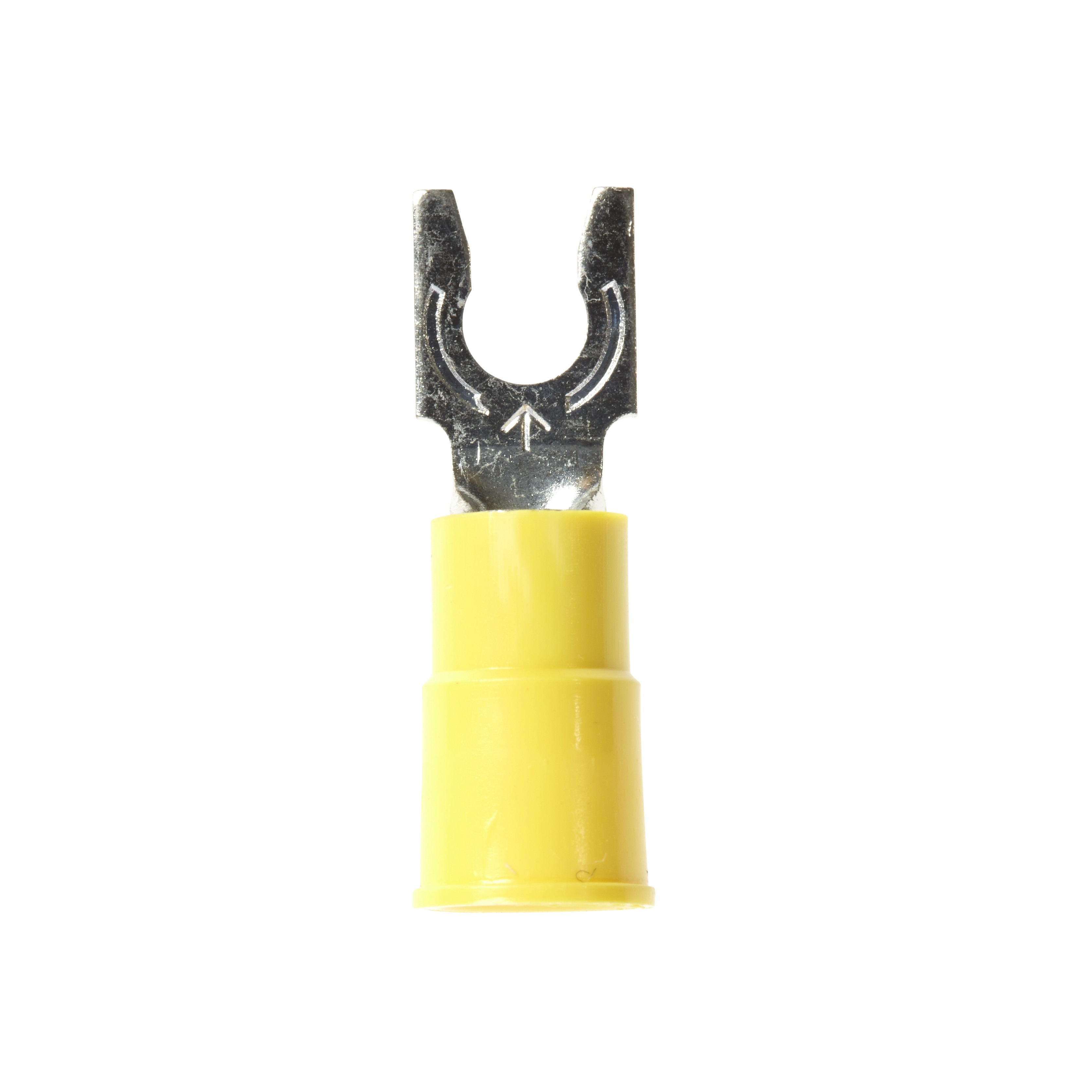

3M Electronic Specialty MV10-8FLK	0.55 in	13.97 mm	Vinyl	6.35 mm	0.25 in	7.11 mm	0.28 in	Crimp	0.32 in	8.13 mm	8 Stud	Copper ETP	Insulated	Brazed Seam	Free Hanging (In-Line)	Yellow	Snap Spring	Tin	26.16 mm	1.03 in	10 AWG	12 AWG
3M Electronic Specialty MV10-8FBX-BOTTLE	0.55 in	13.97 mm	Vinyl	6.35 mm	0.25 in	7.37 mm	0.29 in	Crimp	0.32 in	8.13 mm	8 Stud	Copper ETP	Insulated	Brazed Seam	Free Hanging (In-Line)	Yellow	Standard	Tin	26.16 mm	1.03 in	10 AWG	12 AWG
3M Electronic Specialty MV10-10FLX	0.55 in	13.97 mm	Vinyl	6.35 mm	0.25 in	7.11 mm	0.28 in	Crimp	0.32 in	8.13 mm	10 Stud	Copper ETP	Insulated	Brazed Seam	Free Hanging (In-Line)	Yellow	Snap Spring	Tin	26.16 mm	1.03 in	10 AWG	12 AWG
3M Electronic Specialty MV10-8FLX-BOTTLE	0.55 in	13.97 mm	Vinyl	6.35 mm	0.25 in	7.11 mm	0.28 in	Crimp	0.32 in	8.13 mm	8 Stud	Copper ETP	Insulated	Brazed Seam	Free Hanging (In-Line)	Yellow	Snap Spring	Tin	26.16 mm	1.03 in	10 AWG	12 AWG
3M Electronic Specialty MV10-610RX-BOTTLE			Vinyl	6.35 mm	0.25 in			Crimp			6 Stud 8 Stud 10 Stud	Copper ETP	Insulated	Brazed Seam	Free Hanging (In-Line)	Yellow	Multi-Stud	Tin	30.23 mm	1.19 in	10 AWG	12 AWG	0.04 in	1.02 mm				0.39 in	9.91 mm
