MEAS 89 Series

Catalog

PRESS,ISO,1/4-19BSP FTG

Part	Operating Pressure	Operating Pressure	Output Type	Applications	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Accuracy	Port Size	Port Size	Port Size	Maximum Pressure	Maximum Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Package / Case	Port Style	Voltage - Supply	Output [Min]	Output [Max]	Features
TE Connectivity AMP Connectors 89BSD-012BS-5
TE Connectivity AMP Connectors 89BSD-012BA-4
TE Connectivity AMP Connectors 89BSD-018BA-B
TE Connectivity AMP Connectors 89BSD-006BS-A	87.02 PSI	6 bar	Digital - I2C	Industrial Automation	PC Pins	85 °C	-40 C	Sealed Gauge	0.3 %	7.94 mm	Male UNEF	0.3125 in	1200 kPa	174.05 PSI	3.6 V	1.8 V	24 b	Cylinder	Threaded

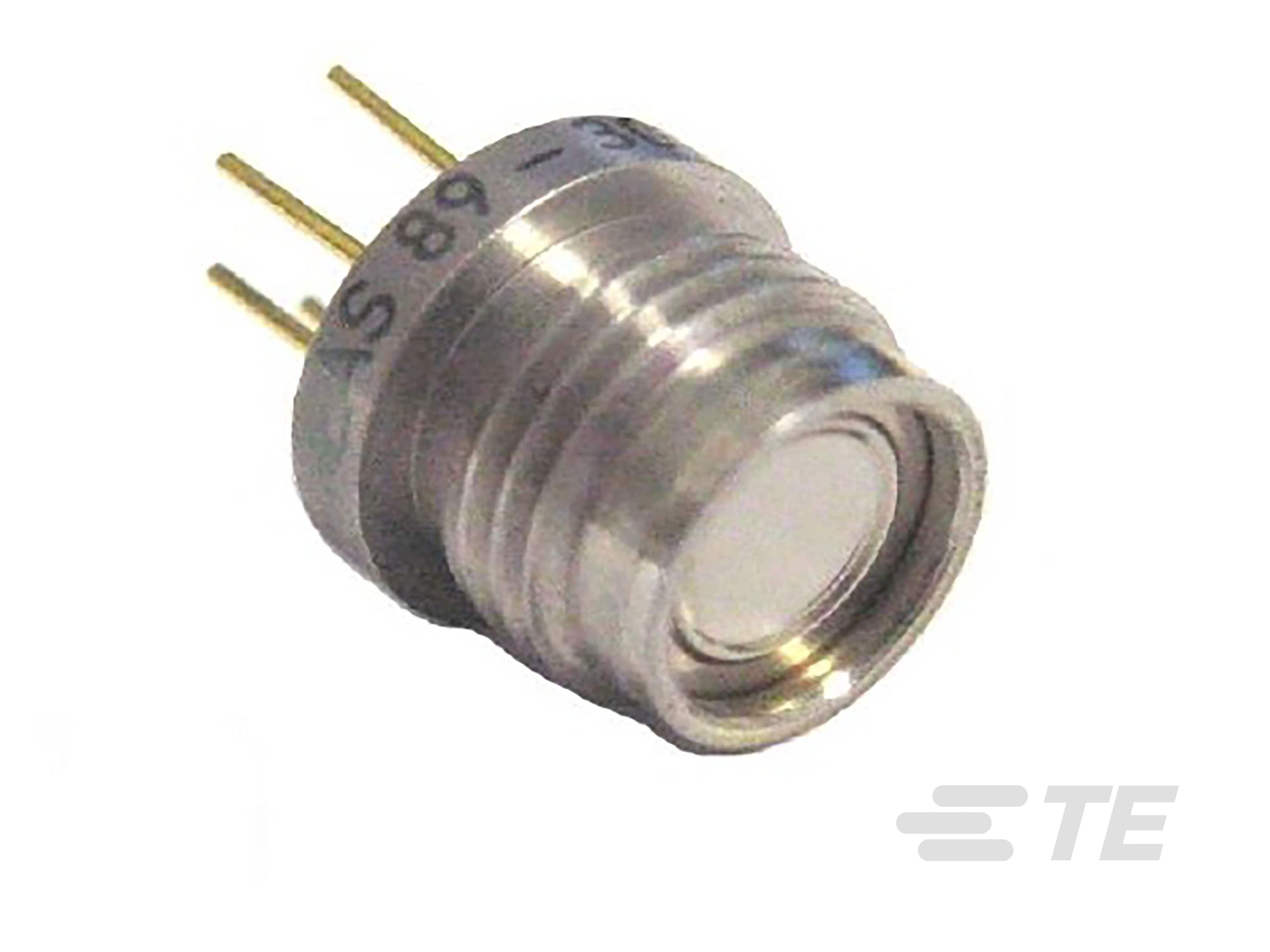

TE Connectivity AMP Connectors 89-01KA-0U	1000 PSI	6894.76 kPa	Wheatstone Bridge	Board Mount	PC Pin	125 °C	-40 C		0.25 %				20684.27 kPa	3000 PSI				Cylinder	No Port	9.5 V	0 mV	208 mV
TE Connectivity AMP Connectors 89BSD-018BA-A
TE Connectivity AMP Connectors 89-10KA-0U	10000 PSI	68947.57 kPa	Wheatstone Bridge	Board Mount	PC Pins	125 °C	-40 C		0.25 %				206842.32 kPa	30000 PSI				Cylinder	No Port	9.5 V	0 mV	100 mV
TE Connectivity AMP Connectors 89BSD-006BA-B	87.02 PSI	6 bar	I2C	Industrial Automation	Cable with Connector	85 °C	-40 C		0.3 %				1200 kPa	174.05 PSI	3.6 V	1.8 V	24 b	Cylinder	No Port
TE Connectivity AMP Connectors 89-05KS-4R	5000 PSI	34473.79 kPa	Wheatstone Bridge	Board Mount	PC Pin	125 °C	-40 C	Sealed Gauge	0.25 %	0.25 in	Male NPT	0.25 "	103421.36 kPa	15000 PSI				Cylinder	Threaded		0 mV	125 mV	Temperature Compensated
TE Connectivity AMP Connectors 89-01KS-0R
