009155 Series

Catalog

CONN SPRING BATTERY 5POS R/A SMD

Part	Pitch	Pitch	Connector Type	Contact Finish	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts	Material

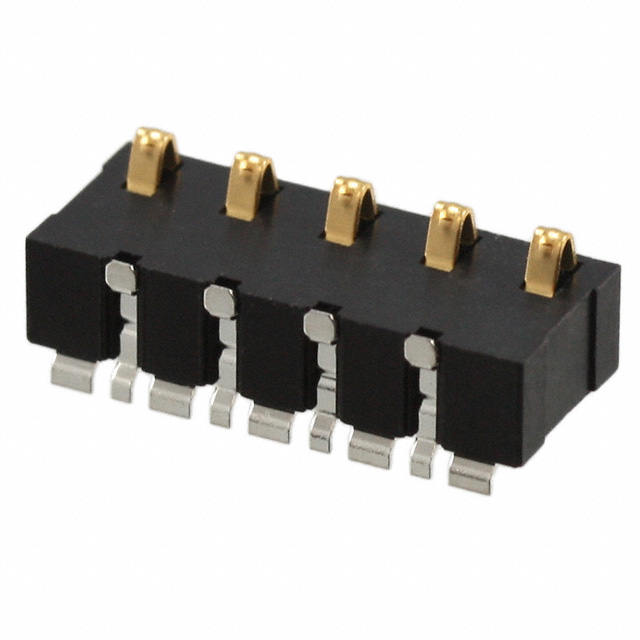

KYOCERA AVX 009155005301006	0.118 in	3 mm	Battery Contact	Gold	Right Angle Surface Mount	1	0.38 µm	15 µin	5

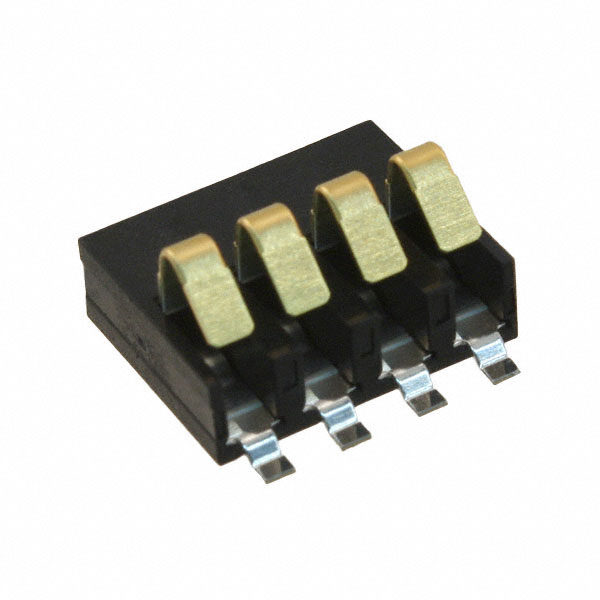

KYOCERA AVX 009155004003016	0.098 in	2.5 mm	Battery Contact	Gold	Surface Mount	1	0.38 µm	15 µin	4
KYOCERA AVX 009155003401006	0.157 in	4 mm	Battery Contact	Gold	Surface Mount	1	0.41 µm	16 µin	3	Beryllium Copper
KYOCERA AVX 009155006401006	0.157 in	4 mm	Battery Contact	Gold	Surface Mount	1	0.41 µm	16 µin	6	Beryllium Copper
KYOCERA AVX 009155004001016	0.098 in	2.5 mm	Battery Contact	Gold	Surface Mount	1	0.38 µm	15 µin	4
KYOCERA AVX 009155002100006	0.098 in	2.5 mm	Battery Contact	Gold	Surface Mount	1	0.38 µm	15 µin	2

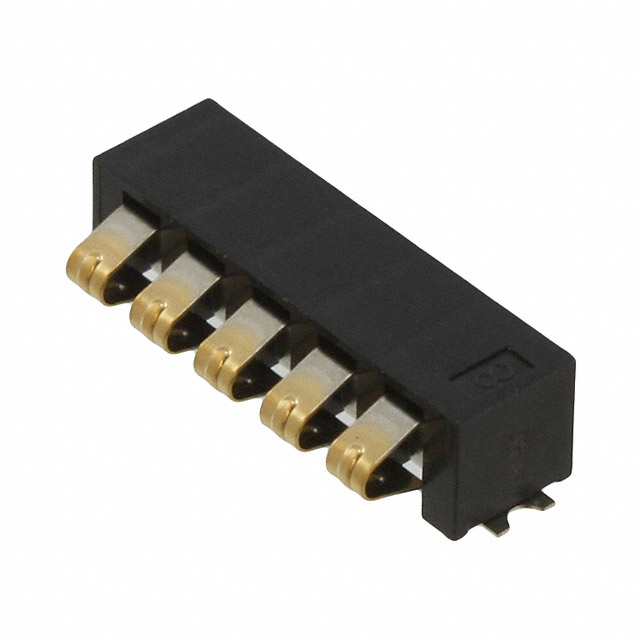

KYOCERA AVX 009155005541006	0.098 in	2.5 mm	Battery Contact	Gold	Right Angle Surface Mount	1	0.38 µm	15 µin	5	Beryllium Copper

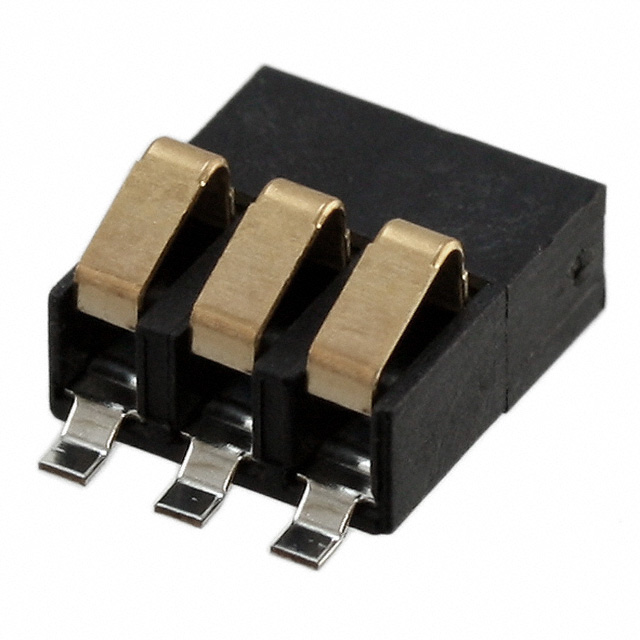

KYOCERA AVX 009155003001016	0.098 in	2.5 mm	Battery Contact	Gold	Surface Mount	1	0.38 µm	15 µin	3
KYOCERA AVX 009155002101006	0.098 in	2.5 mm	Battery Contact	Gold	Surface Mount	1	0.38 µm	15 µin	2

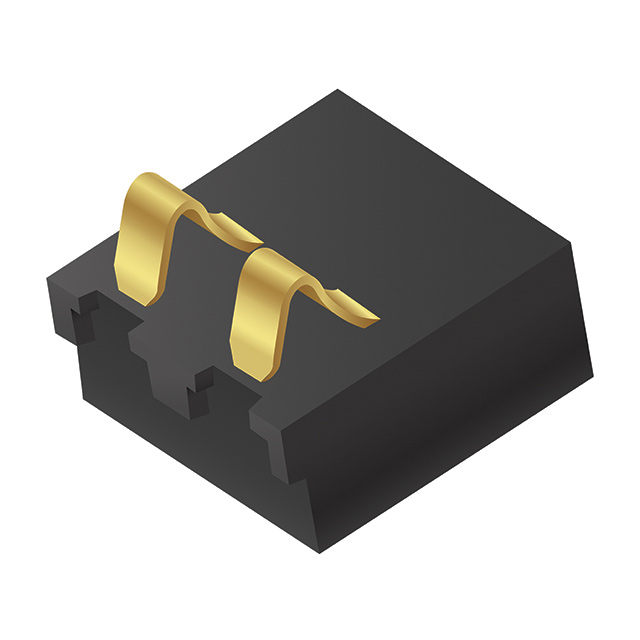

KYOCERA AVX 009155002301006	0.118 in	3 mm	Battery Contact	Gold	Right Angle Surface Mount	1	0.38 µm	15 µin	2
