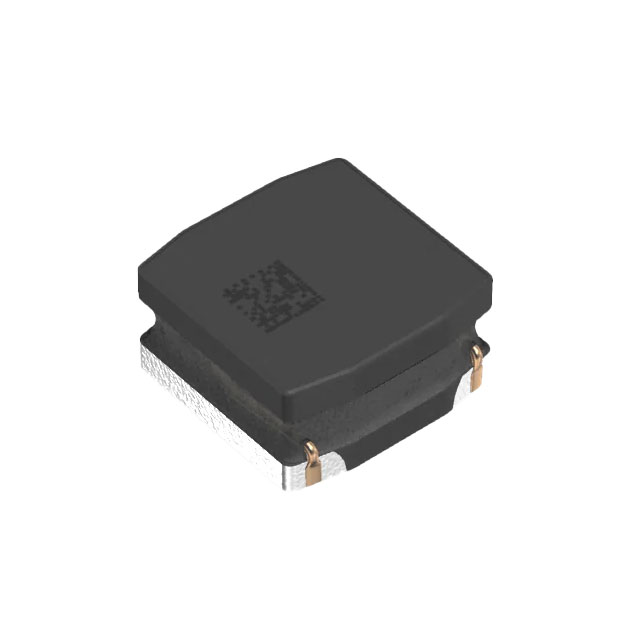

VLS-CX-H Series

Catalog

POWER INDUCTORS - SMD 2.2UH 20% 0.06OHM 1.48A AEC-Q200

Part	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Ratings	Current Rating (Amps)	Current - Saturation (Isat)	Package / Case	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Material - Core	Shielding	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Type	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
TDK Corporation VLS3015CX-2R2M-H	1 MHz	0.059 "	1.5 mm	Surface Mount	AEC-Q200	2.14 A	1.48 A	Nonstandard	20 %	3 mm	0.118 in	3 mm	0.118 "	2.2 µH	Ferrite	Shielded	3015	125 °C	-40 C	Drum Core Wirewound
TDK Corporation VLS4015CX-470M-H	1 MHz	0.059 "	1.5 mm	Surface Mount	AEC-Q200	0.63 A	570 mA	1616 (4040 Metric)	20 %	4 mm	0.157 "	4 mm	0.157 in	47 µH	Ferrite	Shielded	1616	125 °C	-40 C	Drum Core Wirewound	1.2 Ohm
TDK Corporation VLS4015CX-1R0M-H	1 MHz	0.059 "	1.5 mm	Surface Mount	AEC-Q200	2.98 A	3.58 A	1616 (4040 Metric)	20 %	4 mm	0.157 "	4 mm	0.157 in	1 µH	Ferrite	Shielded	1616	125 °C	-40 C	Drum Core Wirewound	48 mOhm
TDK Corporation VLS4015CX-151M-H	1 MHz	0.059 "	1.5 mm	Surface Mount	AEC-Q200	0.33 A	390 mA	1616 (4040 Metric)	20 %	4 mm	0.157 "	4 mm	0.157 in	150 µH	Ferrite	Shielded	1616	125 °C	-40 C	Drum Core Wirewound	4.21 Ohm
TDK Corporation VLS4020CX-1R0M-H	1 MHz			Surface Mount	AEC-Q200	3.44 A	3.6 A	1616 (4040 Metric)	20 %	4 mm	0.157 "	4 mm	0.157 in	1 µH	Ferrite	Shielded	1616	125 °C	-40 C	Wirewound	48 mOhm	0.079 in	2 mm
TDK Corporation VLS4020CX-101M-H	1 MHz			Surface Mount	AEC-Q200	470 mA	530 mA	1616 (4040 Metric)	20 %	4 mm	0.157 "	4 mm	0.157 in	100 µH	Ferrite	Shielded	1616	125 °C	-40 C	Wirewound		0.079 in	2 mm	2.04 Ohm
