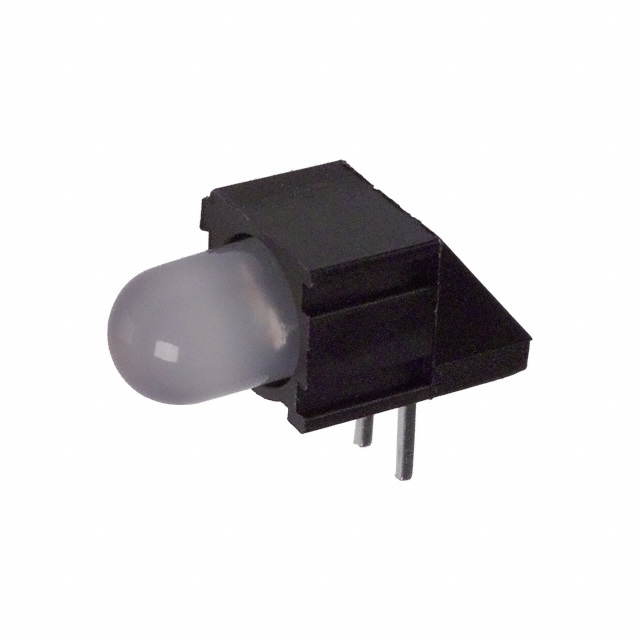

SSF-LXH100 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED CBI 5MM BLU RA PCB

Part	Color	Wavelength - Peak	Viewing Angle	Lens Size	Lens Size	Current	Configuration	Voltage Rating	Lens Type	Mounting Type	Lens Style	Millicandela Rating
Lumex Opto/Components Inc. SSF-LXH100USBD-01	Blue	470 nm	60 °	5 mm	T-1 3/4	20 mA	Single	3.5 V	Diffused Tinted	Right Angle Through Hole	Round with Domed Top	40 mcd

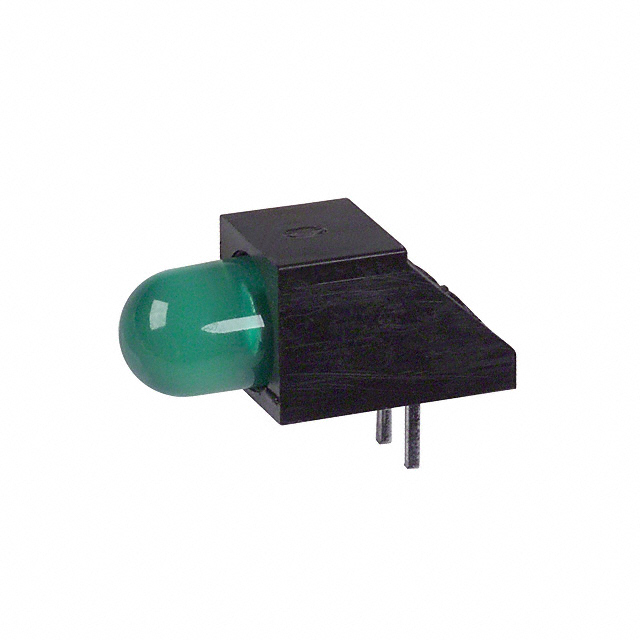

Lumex Opto/Components Inc. SSF-LXH100GD-01	Green	565 nm	60 °	5 mm	T-1 3/4	20 mA	Single		Diffused Tinted	Right Angle Through Hole	Round with Domed Top	30 mcd
Lumex Opto/Components Inc. SSF-LXH100LYD	Yellow	585 nm	60 °	5 mm	T-1 3/4	20 mA	Single	2.1 V	Diffused Tinted	Right Angle Through Hole	Round with Domed Top	30 mcd

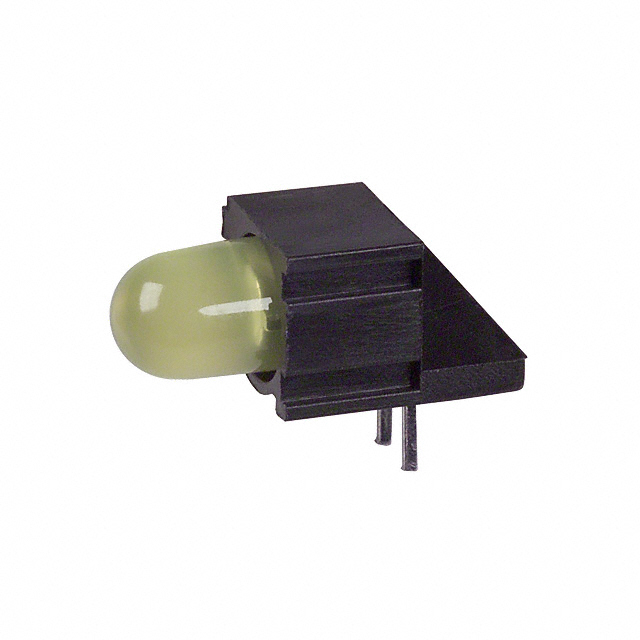

Lumex Opto/Components Inc. SSF-LXH100MYD	Yellow	585 nm	60 °	5 mm	T-1 3/4	20 mA	Single	2.1 V	Diffused Tinted	Right Angle Through Hole	Round with Domed Top	30 mcd

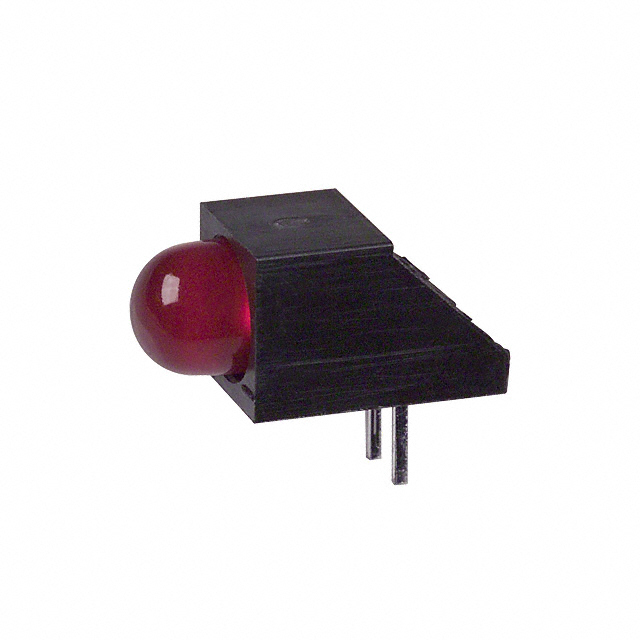

Lumex Opto/Components Inc. SSF-LXH100SRD	Red	660 nm	60 °	5 mm	T-1 3/4	20 mA	Single	1.7 V	Diffused Tinted	Right Angle Through Hole	Round with Domed Top	60 mcd

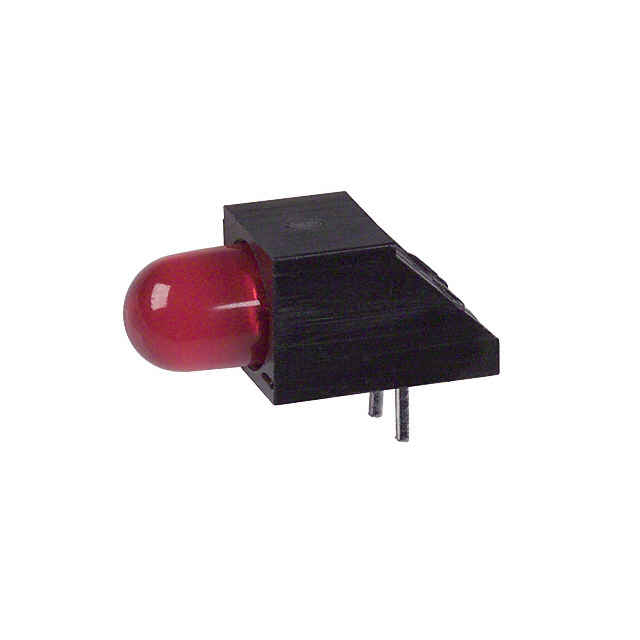

Lumex Opto/Components Inc. SSF-LXH100LID-01	Red			5 mm	T-1 3/4	20 mA	Single	2 V	Diffused Tinted	Right Angle Through Hole	Round with Domed Top

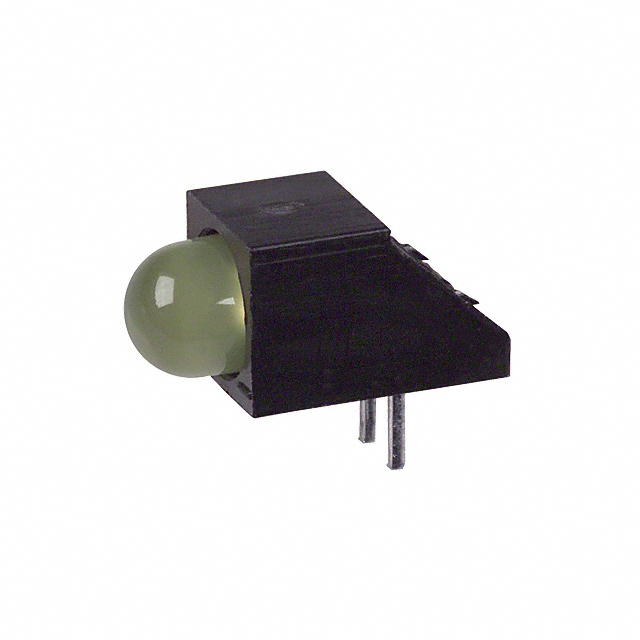

Lumex Opto/Components Inc. SSF-LXH100YD	Yellow	585 nm	60 °	5 mm	T-1 3/4	20 mA	Single	2.1 V	Diffused Tinted	Right Angle Through Hole	Round with Domed Top	30 mcd
Lumex Opto/Components Inc. SSF-LXH100HD	Red	695 nm	60 °				Single		Diffused	Right Angle Through Hole	Round with Domed Top	6 mcd

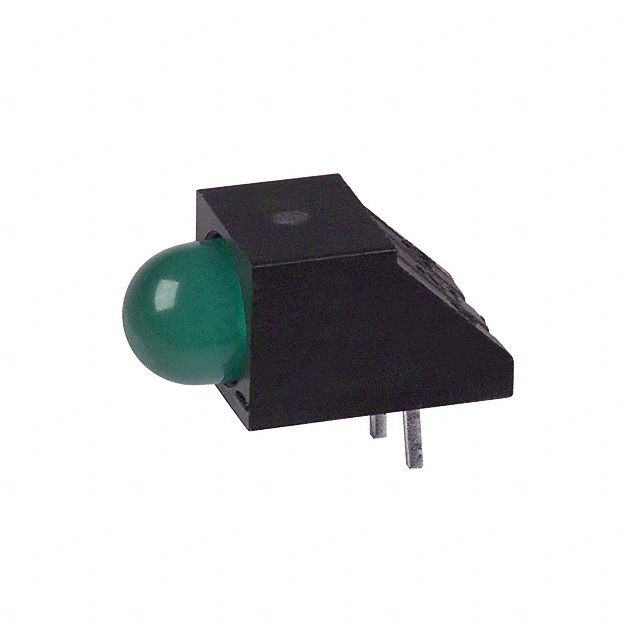

Lumex Opto/Components Inc. SSF-LXH100GD	Green	565 nm	60 °	5 mm	T-1 3/4	20 mA	Single		Diffused Tinted	Right Angle Through Hole	Round with Domed Top	30 mcd
Lumex Opto/Components Inc. SSF-LXH100LGD	Green	565 nm	60 °	5 mm	T-1 3/4	20 mA	Single		Diffused Tinted	Right Angle Through Hole	Round with Domed Top	30 mcd
