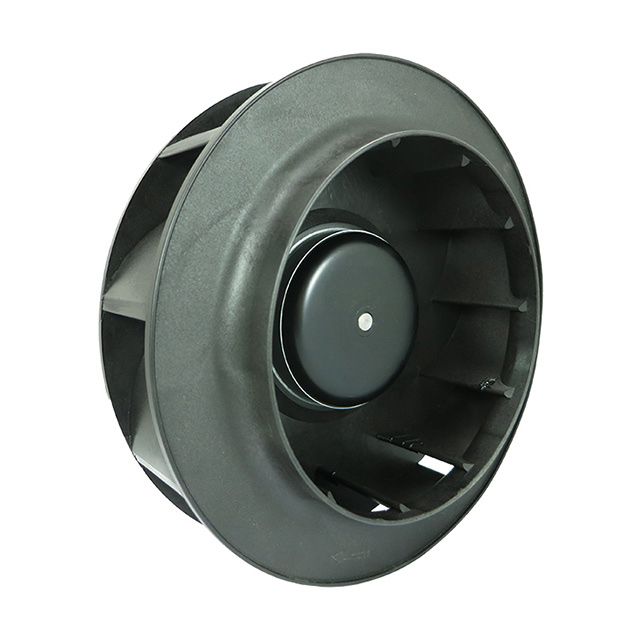

ODB250110 Series
Manufacturer: ORION FANS
Beta
⌘K
FAN BLOWER, 250MM, 129.6W, 48VDC ROHS COMPLIANT: YES
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Fan Type | Size / Dimension [diameter] | Size / Dimension | Power (Watts) | Operating Temperature | Voltage - Rated | Width [x] | Features | Termination | RPM | Approval Agency | Static Pressure | Static Pressure | Weight | Weight | Noise | Air Flow | Air Flow | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 36 VDC | 56 VDC | Aluminum | Thermoplastic | 40000 Hrs | 2.7 A | Motorized Impellers | 250 mm | Round | 130 W | 14 ~ 149°F (-10 ~ 65°C) | 48 VDC | 106.5 mm | PWM Control Speed Sensor (Tach) | 4 Wire Leads | 2600 RPM | CE cURus TUV UR | 553 Pa | 2.22 in H2O | 2.3 kg | 5.1 lbs | 78 dB(A) | 790 CFM | 22.12 m³/min | Ball |
ORION FANS | 16 VDC | 28 V | Aluminum | Thermoplastic | 40000 Hrs | 5.4 A | Motorized Impellers | 250 mm | Round | 130 W | 14 ~ 149°F (-10 ~ 65°C) | 24 VDC | 106.5 mm | PWM Control Speed Sensor (Tach) | 4 Wire Leads | 2600 RPM | CE cURus TUV UR | 553 Pa | 2.22 in H2O | 2.3 kg | 5.1 lbs | 78 dB(A) | 790 CFM | 22.12 m³/min | Ball |
