REM2A Series

Catalog

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, INDUSTRIAL & MEDICAL, 2:1, 2 W, 1 OUTPUT, 5 VDC

Part	Control Features	Type	Standard Number	Applications	Number of Outputs	Voltage - Output 1	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Efficiency	Features	Approval Agency	Power (Watts)	Voltage - Isolation	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Recom Power REM2A-1205S/SMD	Active High Enable	Isolated Module	60601-1; 62368-1	ITE (Commercial) Medical	1	5 V	Surface Mount	18 V	16-SMD Module 7 Leads	105 C	-40 °C	400 mA	24.3 mm	0.57 "	10.5 mm	0.96 "	14.4 mm	0.41 in	9 V	78 %	Remote On/Off	cURus UL	2 W	5000 V
Recom Power REM2A-2412D/SMD	Active High Enable	Isolated Module	60601-1; 62368-1	ITE (Commercial) Medical	2	12 V	Surface Mount	36 V	16-SMD Module 7 Leads	105 C	-40 °C		24.3 mm	0.57 "	10.5 mm	0.96 "	14.4 mm	0.41 in	18 V	81 %	Remote On/Off	cURus UL	2 W	5000 V	-12 V	83 mA	83 mA

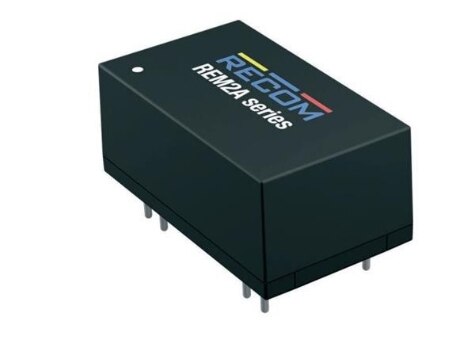

Recom Power REM2A-2405S	Active High Enable	Isolated Module	60601-1; 62368-1	ITE (Commercial) Medical	1	5 V	Through Hole	36 V	16-DIP Module 7 Leads	105 C	-40 °C	400 mA	24.3 mm	0.57 "	10.2 mm	0.96 "	14.4 mm	0.4 "	18 V	79 %	Remote On/Off	cURus UL	2 W	5000 V
Recom Power REM2A-2424S/SMD	Active High Enable	Isolated Module	60601-1; 62368-1	ITE (Commercial) Medical	1	24 V	Surface Mount	36 V	16-SMD Module 7 Leads	105 C	-40 °C	83 mA	24.3 mm	0.57 "	10.5 mm	0.96 "	14.4 mm	0.41 in	18 V	81 %	Remote On/Off	cURus UL	2 W	5000 V
Recom Power REM2A-0505S/SMD	Active High Enable	Isolated Module	60601-1; 62368-1	ITE (Commercial) Medical	1	5 V	Surface Mount	12 V	16-SMD Module 7 Leads	105 C	-40 °C	400 mA	24.3 mm	0.57 "	10.5 mm	0.96 "	14.4 mm	0.41 in	4.5 V	78 %	Remote On/Off	cURus UL	2 W	5000 V
Recom Power REM2A-2412D	Active High Enable	Isolated Module	60601-1; 62368-1	ITE (Commercial) Medical	2	12 V	Through Hole	36 V	16-DIP Module 7 Leads	105 C	-40 °C		24.3 mm	0.57 "	10.2 mm	0.96 "	14.4 mm	0.4 "	18 V	81 %	Remote On/Off	cURus UL	2 W	5000 V	-12 V	83 mA	83 mA
