3010-26 Series

Manufacturer: CNC Tech

Catalog

CONN EJECTOR HEADER HDR 26 POS 2.54MM SOLDER ST THRU-HOLE

Part	Contact Length - Post [x]	Contact Length - Post	Connector Type	Number of Positions	Insulation Material	Material Flammability Rating	Style	Contact Finish Thickness - Mating	Number of Rows [custom]	Insulation Height	Insulation Height	Mounting Type	Termination	Contact Shape	Contact Type	Contact Material	Fastening Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Mating	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Number of Positions Loaded	Features	Insulation Height [z]
CNC Tech 3010-26-001-13-00	0.134 "	3.4 mm	Header	26	Polybutylene Terephthalate (PBT)	UL94 V-0	Board to Cable/Wire	Flash	2	17 mm	0.669 in	Through Hole	Solder	Square	Male Pin	Brass	Latch Lock/Eject Hooks Long	0.1 "	2.54 mm	3 A	Gold	250 VAC	0.1 in	2.54 mm	-40 C	105 ░C	Shrouded - 4 Wall	All	Keying Slot

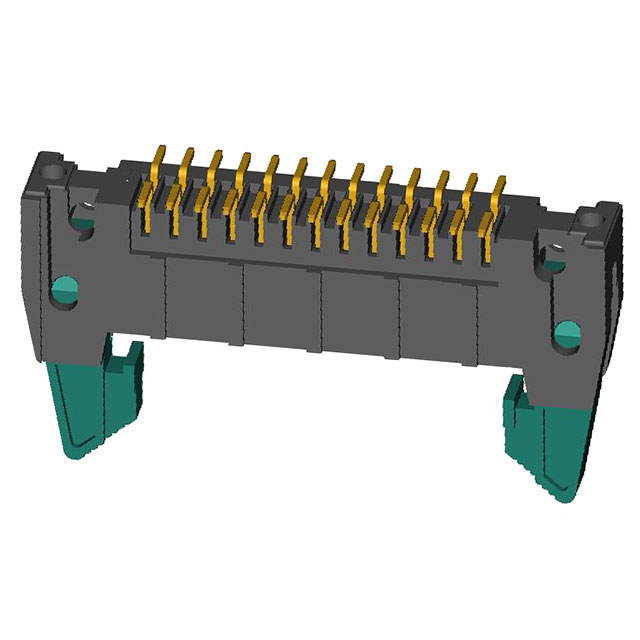

CNC Tech 3010-26-003-12-00			Header	26	Nylon 9T Polyamide (PA9T)	UL94 V-0	Board to Cable/Wire	Flash	2	17 mm	0.669 in	Surface Mount	Solder	Square	Male Pin	Brass	Latch Lock/Eject Hooks	0.1 "	2.54 mm	3 A	Gold	250 VAC	0.1 in	2.54 mm	-40 C	105 ░C	Shrouded - 4 Wall	All	Keying Slot

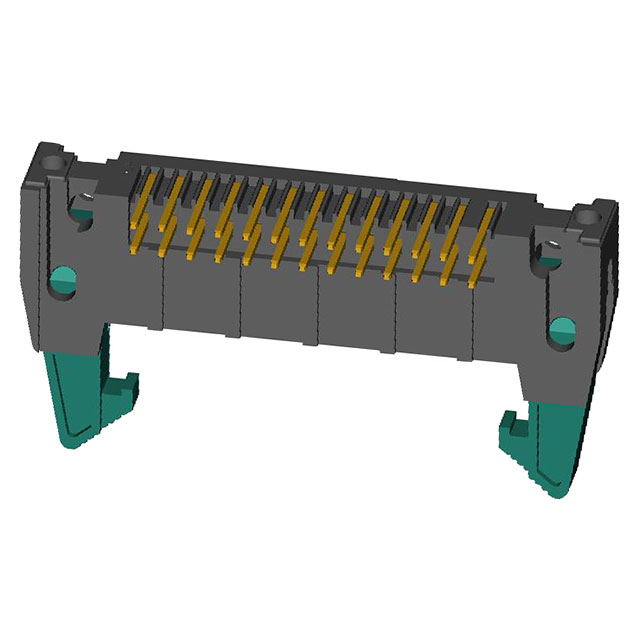

CNC Tech 3010-26-002-13-00	0.134 "	3.4 mm	Header	26	Polybutylene Terephthalate (PBT)	UL94 V-0	Board to Cable/Wire	Flash	2	8.3 mm		Right Angle Through Hole	Solder	Square	Male Pin	Brass	Latch Lock/Eject Hooks Long	0.1 "	2.54 mm	3 A	Gold	250 VAC	0.1 in	2.54 mm	-40 C	105 ░C	Shrouded - 4 Wall	All	Keying Slot	0.327 "

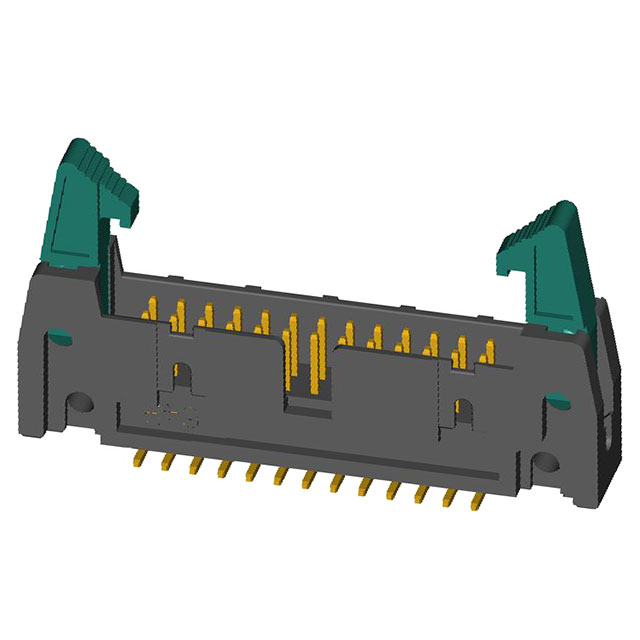

CNC Tech 3010-26-003-13-00			Header	26	Nylon 9T Polyamide (PA9T)	UL94 V-0	Board to Cable/Wire	Flash	2	17 mm	0.669 in	Surface Mount	Solder	Square	Male Pin	Brass	Latch Lock/Eject Hooks Long	0.1 "	2.54 mm	3 A	Gold	250 VAC	0.1 in	2.54 mm	-40 C	105 ░C	Shrouded - 4 Wall	All	Keying Slot
CNC Tech 3010-26-001-12-00	0.134 "	3.4 mm	Header	26	Polybutylene Terephthalate (PBT)	UL94 V-0	Board to Cable/Wire	Flash	2	17 mm	0.669 in	Through Hole	Solder	Square	Male Pin	Brass	Latch Lock/Eject Hooks	0.1 "	2.54 mm	3 A	Gold	250 VAC	0.1 in	2.54 mm	-40 C	105 ░C	Shrouded - 4 Wall	All	Keying Slot

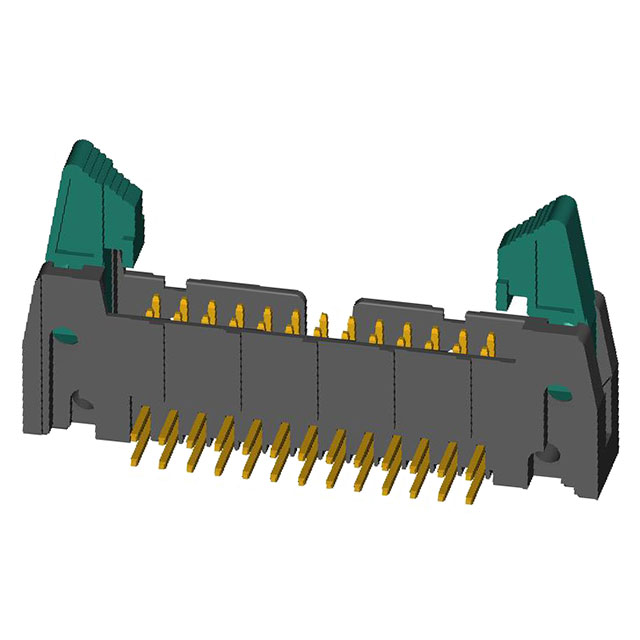

CNC Tech 3010-26-002-12-00	0.134 "	3.4 mm	Header	26	Polybutylene Terephthalate (PBT)	UL94 V-0	Board to Cable/Wire	Flash	2	8.3 mm		Right Angle Through Hole	Solder	Square	Male Pin	Brass	Latch Lock/Eject Hooks	0.1 "	2.54 mm	3 A	Gold	250 VAC	0.1 in	2.54 mm	-40 C	105 ░C	Shrouded - 4 Wall	All	Keying Slot	0.327 "
