RFB-1110 Series
Manufacturer: RF Industries
Beta
⌘K

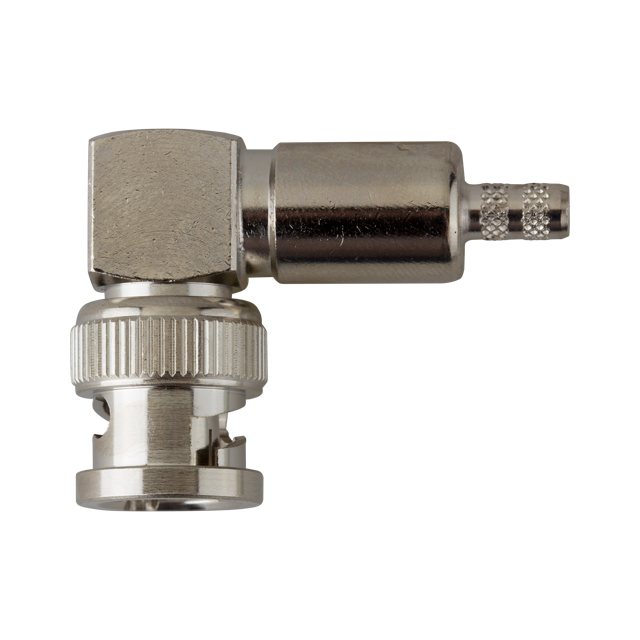

BNC MALE R/A CRIMP; 50 OHMS
| Part | Body Finish | Voltage Rating | Insertion Loss | Center Contact Plating | Body Material | Dielectric Material | Impedance | Housing Color | Number of Ports | Frequency - Max [Max] | Connector Type | Contact Termination | Shield Termination | Fastening Type | Connector Style | Center Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Nickel | 500 V | 0.3 dB | Gold | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | Silver | 1 | 4 GHz | Plug Male Pin | Crimp | Crimp | Bayonet Lock | BNC | Brass | Free Hanging (In-Line) Right Angle |
