39-405 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH PUSH SPST-NO 0.15A 28V
| Part | Electrical Life | Termination Style | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Type | Actuator Type | Actuator Marking | Mounting Type | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

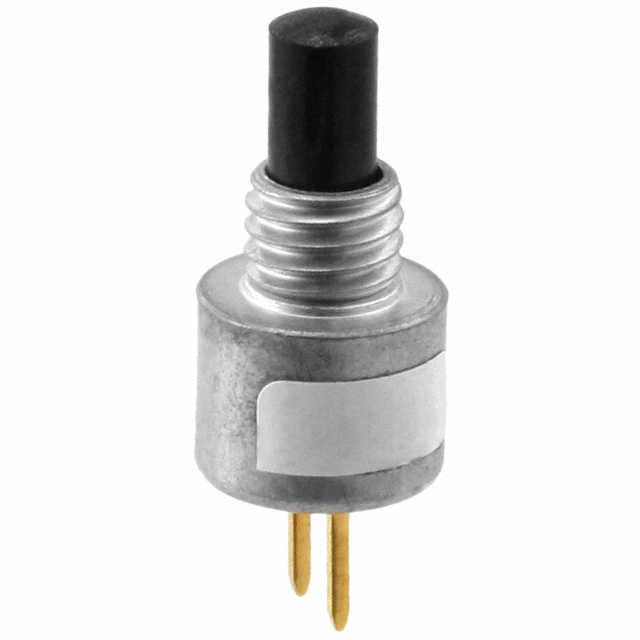

 Grayhill Inc. | 1000000 Cycles | PC Pin | Off-Mom | 85 °C | -40 C | SPST-NO | Standard | Plunger Round | No Marking | Panel Mount Rear | 150 mA | 4.37 mm | 28 V | Black |

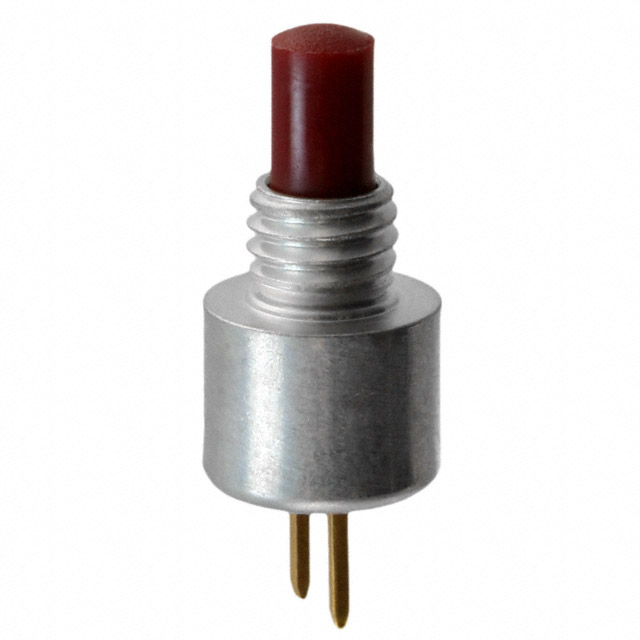

 Grayhill Inc. | 1000000 Cycles | PC Pin | Off-Mom | 85 °C | -40 C | SPST-NO | Standard | Plunger Round | No Marking | Panel Mount Rear | 150 mA | 4.37 mm | 28 V | Red |
