VEC50 Series

Manufacturer: XP Power

Catalog

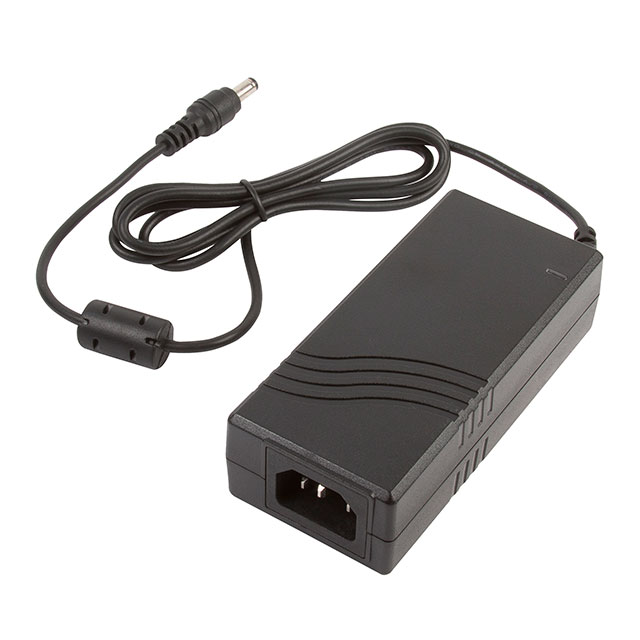

AC/DC DESKTOP ADAPTER 19V 50W

Part	Weight	Weight	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Form	Polarization	No Load Power Consumption	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Output Connector [diameter]	Output Connector	Output Connector [x]	Voltage - Output	Current - Output (Max) [Max]	Approval Agency	Input Type	Standard Number	Cord Length	Cord Length	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency
XP Power VEC50US19	244.94 g	0.54 lb	ITE (Commercial)	264 VAC	90 VAC	50 W	Desktop (Class I)	Positive Center	150 mW	International	0 °C	65 °C	IEC 320-C14	2.5 mm 5.5 mm	Barrel Plug	11 mm	19 V	2.63 A	CB CE TUV	Cord (Sold Separately)	62368-1	1.2 m	47.2 in	4.58 in 116.3 mm	2.06 in 52.4 mm	1.23 in 31.3 mm	CoC Tier 2 Level VI
XP Power VEC50US24	244.94 g	0.54 lb	ITE (Commercial)	264 VAC	90 VAC	50 W	Desktop (Class I)	Positive Center	150 mW	International	0 °C	65 °C	IEC 320-C14	2.5 mm 5.5 mm	Barrel Plug	11 mm	24 V	2.08 A	CB CE TUV	Cord (Sold Separately)	62368-1	1.2 m	47.2 in	4.58 in 116.3 mm	2.06 in 52.4 mm	1.23 in 31.3 mm	CoC Tier 2 Level VI
