8402 Series
Manufacturer: Belden Inc.
Beta
⌘K

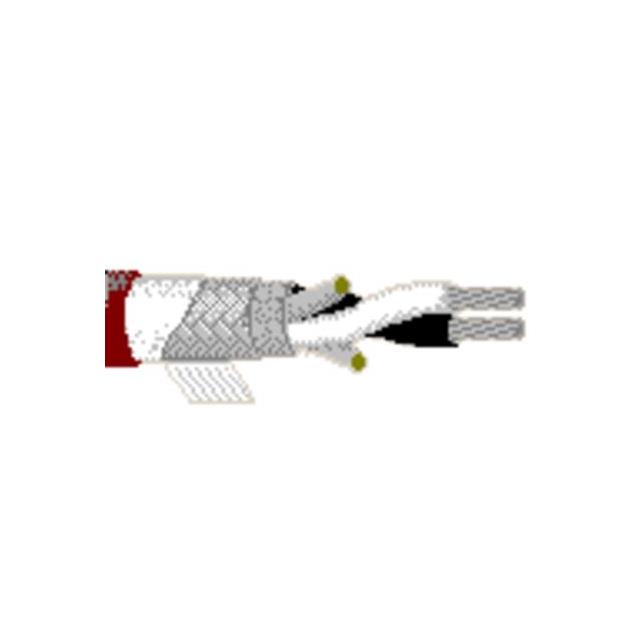

2 #20 EPDM SHLD HPN
| Part | Shield Coverage | Shield Material | Conductor Material | Wire Gauge | Cable Type | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Shield Type | Number of Conductors | Conductor Insulation | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned Viscose | Copper Tinned | 20 AWG | Microphone | Audio | 0.035 in | 0.889 mm | -20 ░C | 60 °C | 26 | 34 AWG | 304.8 m | 1000 ft | Brown | 6.68 mm | 0.263 " | Chlorosulfonated Polyethylene (CSPE) | Double Braid | 2 | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V |
