3220-40 Series
Manufacturer: CNC Tech
Beta
⌘K

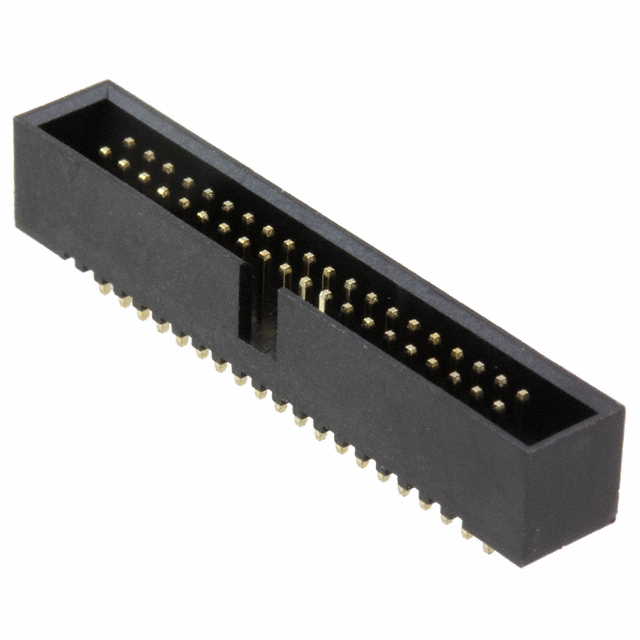

CONN HEADER SMD 40POS 1.27MM
| Part | Contact Finish Thickness - Post | Shrouding | Features | Voltage Rating | Number of Positions | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Termination | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Insulation Material | Style | Insulation Height [z] | Insulation Height [z] | Contact Finish - Mating | Fastening Type | Contact Type | Contact Material | Contact Shape | Insulation Color | Contact Finish - Post | Material Flammability Rating | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | Flash | Shrouded - 4 Wall | Keying Slot | 50 VAC | 40 | 2 | -40 C | 105 ░C | 1.27 mm | 0.05 in | Solder | Surface Mount | 0.05 in | 1.27 mm | Header | Nylon 9T Polyamide (PA9T) | Board to Cable/Wire | 0.213 " | 5.4 mm | Gold | Push-Pull | Male Pin | Brass | Square | Black | Gold | UL94 V-0 | All | Flash | ||
 CNC Tech | Shrouded - 4 Wall | Keying Slot | 50 VAC | 40 | 2 | -40 C | 105 ░C | 1.27 mm | 0.05 in | Solder | Through Hole | 0.05 in | 1.27 mm | Header | Nylon 9T Polyamide (PA9T) | Board to Cable/Wire | 0.213 " | 5.4 mm | Gold | Push-Pull | Male Pin | Brass | Square | Black | UL94 V-0 | All | Flash | 0.083 in | 2.11 mm | ||
 CNC Tech | Flash | Shrouded - 4 Wall | Keying Slot Pick and Place | 50 VAC | 40 | 2 | -40 C | 105 ░C | 1.27 mm | 0.05 in | Solder | Surface Mount | 0.05 in | 1.27 mm | Header | Nylon 9T Polyamide (PA9T) | Board to Cable/Wire | 0.213 " | 5.4 mm | Gold | Push-Pull | Male Pin | Brass | Square | Black | Gold | UL94 V-0 | All | Flash |
