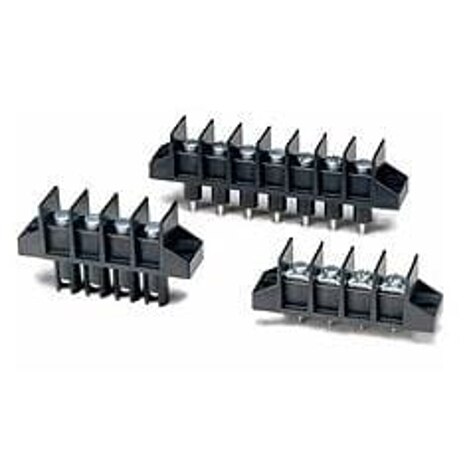

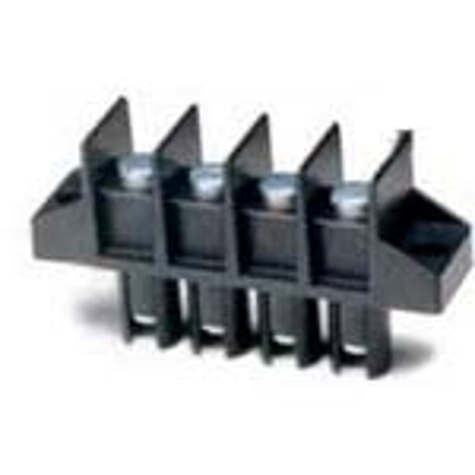

Barrier Terminal Blocks MAGNUM 4000
Barrier Terminal Blocks MAGNUM 4000
| Part | Material - Insulation | Material Flammability Rating | Terminal Screw Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Terminal Screw Material | Wire Gauge [Max] | Wire Gauge [Min] | Voltage Rating | Pitch | Pitch | Top Termination | Barrier Type | Number of Wire Entries | Features | Terminal Block Type | Number of Rows | Number of Circuits | Color | Bottom Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Thermoplastic | UL94 V-0 | Zinc | -40 C | 105 ░C | Chassis Panel | Steel | 16 AWG | 8 AWG | 600 V | 0.562 " | 14.27 mm | Screws with Quick Connect Tabs | 2 Wall (Dual) | 2 | Flange | Barrier Block | 1 | 2 | Black | Closed | 50 A |
 Eaton - Electronics Division | Thermoplastic | UL94 V-0 | Zinc | -40 C | 105 ░C | Chassis Panel | Steel | 16 AWG | 10 AWG | 600 V | 0.562 " | 14.27 mm | Screws with Captive Plate | 2 Wall (Dual) | 4 | Flange | Barrier Block | 1 | 4 | Black | Solder Turret Insulated | 35 A |
 Eaton - Electronics Division | 16 AWG | 8 AWG | 150 VDC | 0.562 " | 14.27 mm | Screws | 2 Wall (Dual) | 10 | Flange Positions Stamped | Barrier Block | 1 | 10 | Black | Screw | 50 A | |||||||
Eaton - Electronics Division | 16 AWG | 10 AWG | 600 V | 0.562 " | 14.27 mm | Screws with Captive Plate | 2 Wall (Dual) | 3 | Flange | Barrier Block | 1 | 3 | Black | Solder Turret Insulated | 35 A | |||||||
Eaton - Electronics Division | Thermoplastic | UL94 V-0 | Nickel | -40 C | 105 ░C | Chassis Panel | Brass | 16 AWG | 10 AWG | 600 V | 0.562 " | 14.27 mm | Screws with Captive Plate | 2 Wall (Dual) | 6 | Flange | Barrier Block | 1 | 6 | Black | Solder Turret Insulated | 35 A |
Eaton - Electronics Division | 16 AWG | 8 AWG | 150 VDC | 0.562 " | 14.27 mm | Screws with Captive Plate | 2 Wall (Dual) | 6 | Flange | Barrier Block | 1 | 6 | Black | Screw | 50 A | |||||||
Eaton - Electronics Division | Thermoplastic | UL94 V-0 | Nickel | -40 C | 105 ░C | Chassis Panel | Brass | 16 AWG | 10 AWG | 600 V | 0.562 " | 14.27 mm | Screws with Captive Plate | 2 Wall (Dual) | 14 | Flange | Barrier Block | 1 | 14 | Black | Solder Turret | 35 A |
Eaton - Electronics Division | 16 AWG | 8 AWG | 150 VDC | 0.562 " | 14.27 mm | Screws with Solder Lugs Single | 2 Wall (Dual) | 4 | Flange | Barrier Block | 1 | 4 | Black | Screw | 50 A | |||||||
Eaton - Electronics Division | Thermoplastic | UL94 V-0 | Zinc | -40 C | 105 ░C | Chassis Panel | Steel | 16 AWG | 10 AWG | 600 V | 0.562 " | 14.27 mm | Screws with Captive Plate | 2 Wall (Dual) | 6 | Flange | Barrier Block | 1 | 6 | Black | Solder Turret Insulated | 35 A |
