02K722 Series
Manufacturer: Rosenberger
Beta
⌘K

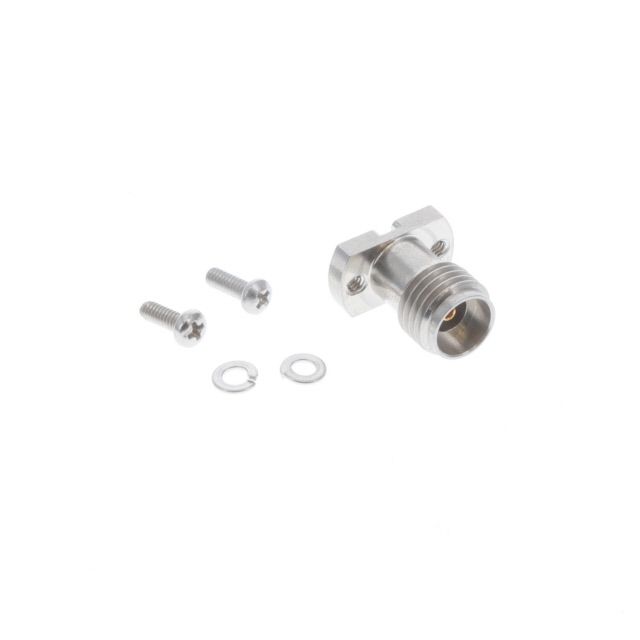

2.92MM VERTICAL JACK PCB 26.5GHZ
| Part | Voltage Rating | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Contact Termination | Center Contact Material | Number of Ports | Frequency - Max [Max] | Shield Termination | Connector Type | Connector Style [x] | Impedance | Housing Color | Mounting Feature | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 250 V | Stainless Steel | 500 | 0 °C | 85 °C | Gold | Polytetrafluoroethylene (PTFE) | Compression | Beryllium Copper | 1 | 40 GHz | Screw | Female Socket Jack | 2.92 mm | 50 Ohms | Silver | Flange | Panel Mount | Threaded |
