SM8S15 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
TVS DIODE 15VWM 24.4VC DO218AB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current - Peak Pulse (10/1000µs) | Voltage - Clamping (Max) @ Ipp [Max] | Power Line Protection | Type | Package / Case | Voltage - Breakdown (Min) [Min] | Qualification | Power - Peak Pulse | Power - Peak Pulse | Grade | Voltage - Reverse Standoff (Typ) | Unidirectional Channels [custom] | Supplier Device Package | Mounting Type | Bidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | -55 °C | 175 ░C | 270 A | 24.4 V | Zener | DO-218AB | 16.7 V | AEC-Q101 | 6600 W | 6.6 kW | Automotive | 15 V | 1 | DO-218AB | Surface Mount | ||
Vishay General Semiconductor - Diodes Division | -55 °C | 175 ░C | 270 A | 24.4 V | Zener | DO-218AB | 16.7 V | AEC-Q101 | 6600 W | 6.6 kW | Automotive | 15 V | 1 | DO-218AB | Surface Mount | ||

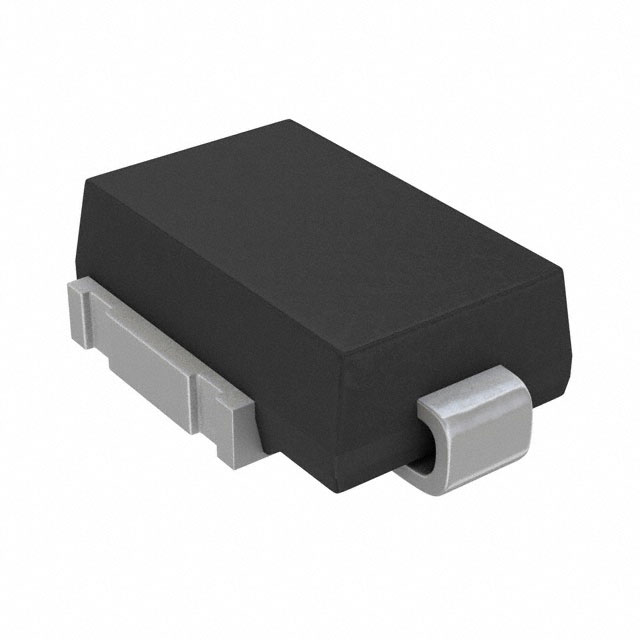

 Vishay General Semiconductor - Diodes Division | -55 °C | 175 ░C | 270 A | 24.4 V | Zener | DO-218AC | 16.7 V | AEC-Q101 | 6600 W | 6.6 kW | Automotive | 15 V | 1 | DO-218AC | Surface Mount | ||
Vishay General Semiconductor - Diodes Division | -55 °C | 175 ░C | 270 A | 24.4 V | Zener | DO-218AB | 16.7 V | AEC-Q101 | 6600 W | 6.6 kW | Automotive | 15 V | DO-218AB | Surface Mount | 1 |
