GVHRSF-0 Series

Catalog

CONN RCPT HSG 8POS 1.25MM

Part	Note	Fastening Type	Number of Rows	Connector Type	Contact Termination	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Number of Positions	Mounting Type	Pitch	Pitch	Color
JST Sales America Inc. GVHRSF-08V-S	Contacts Not Included	Latch Lock	1	Receptacle	Crimp	Female Socket	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	8	Free Hanging (In-Line) Right Angle	0.049 in	1.25 mm	Natural

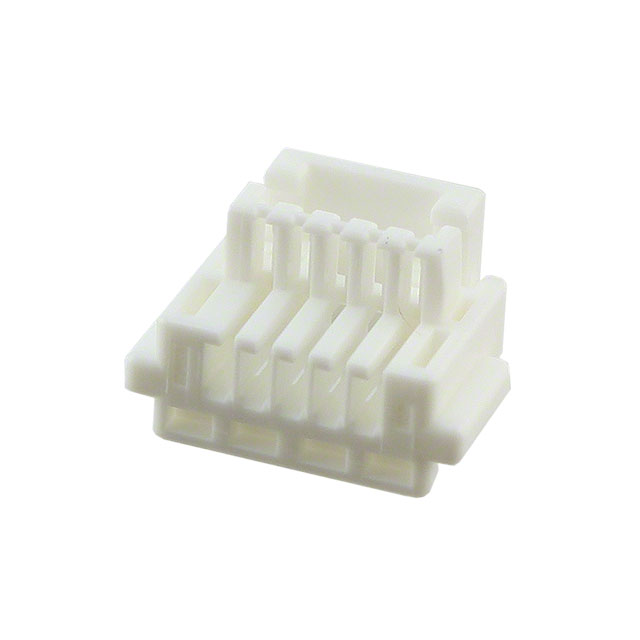

JST Sales America Inc. GVHRSF-05V-S	Contacts Not Included	Latch Lock	1	Receptacle	Crimp	Female Socket	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	5	Free Hanging (In-Line) Right Angle	0.049 in	1.25 mm	Natural

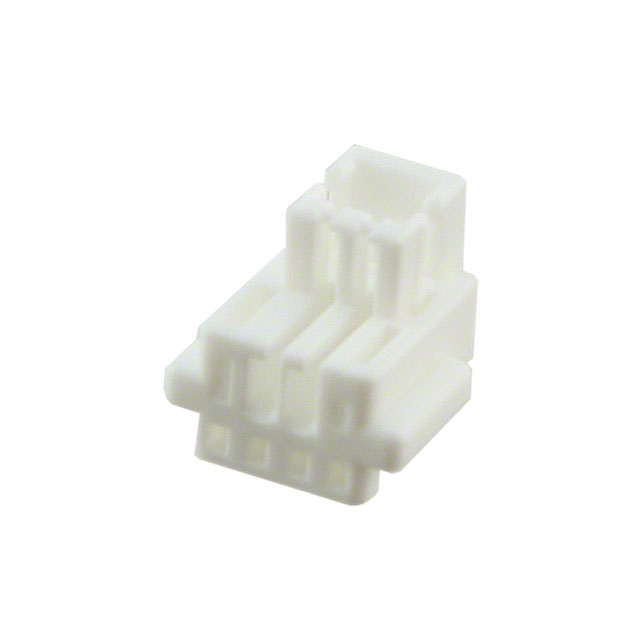

JST Sales America Inc. GVHRSF-02V-S	Contacts Not Included	Latch Lock	1	Receptacle	Crimp	Female Socket	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	2	Free Hanging (In-Line) Right Angle	0.049 in	1.25 mm	Natural

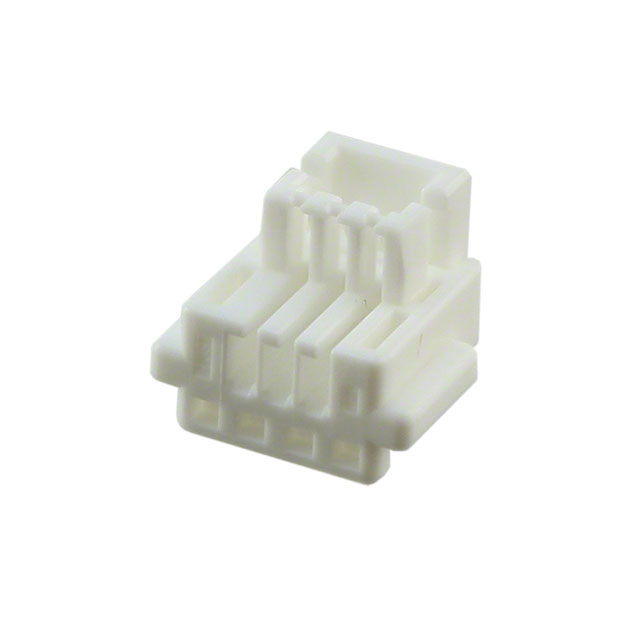

JST Sales America Inc. GVHRSF-03V-S	Contacts Not Included	Latch Lock	1	Receptacle	Crimp	Female Socket	85 °C	-25 °C	Polybutylene Terephthalate (PBT)		Free Hanging (In-Line) Right Angle	0.049 in	1.25 mm	Natural

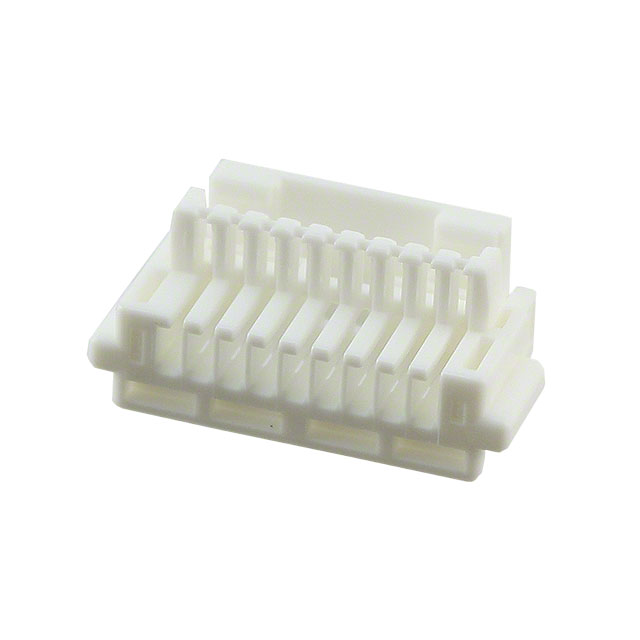

JST Sales America Inc. GVHRSF-09V-S	Contacts Not Included	Latch Lock	1	Receptacle	Crimp	Female Socket	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	9	Free Hanging (In-Line) Right Angle	0.049 in	1.25 mm	Natural

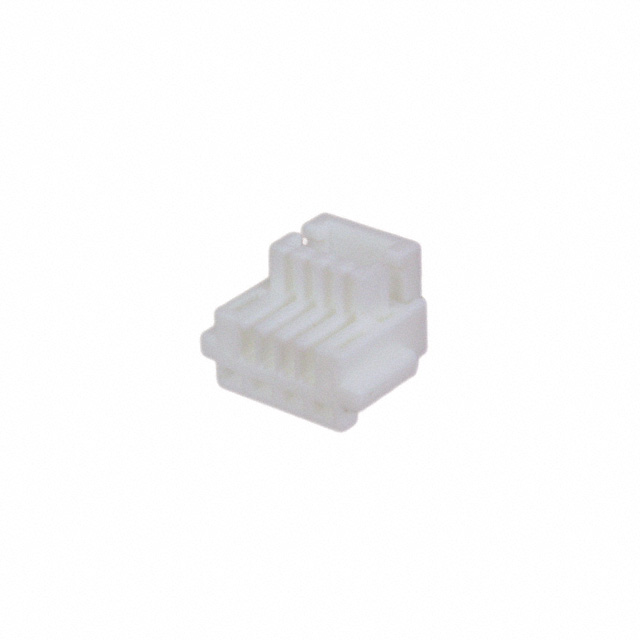

JST Sales America Inc. GVHRSF-04V-S	Contacts Not Included	Latch Lock	1	Receptacle	Crimp	Female Socket	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	4	Free Hanging (In-Line) Right Angle	0.049 in	1.25 mm	Natural

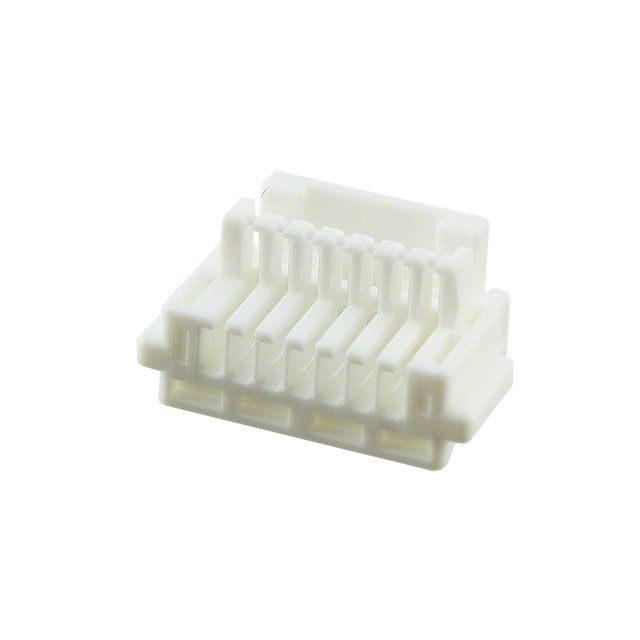

JST Sales America Inc. GVHRSF-07V-S	Contacts Not Included	Latch Lock	1	Receptacle	Crimp	Female Socket	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	7	Free Hanging (In-Line) Right Angle	0.049 in	1.25 mm	Natural

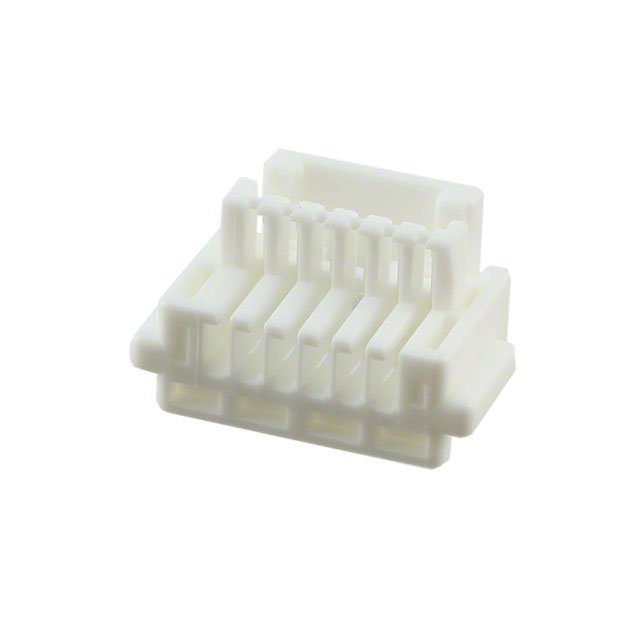

JST Sales America Inc. GVHRSF-06V-S	Contacts Not Included	Latch Lock	1	Receptacle	Crimp	Female Socket	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	6	Free Hanging (In-Line) Right Angle	0.049 in	1.25 mm	Natural
