160337 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

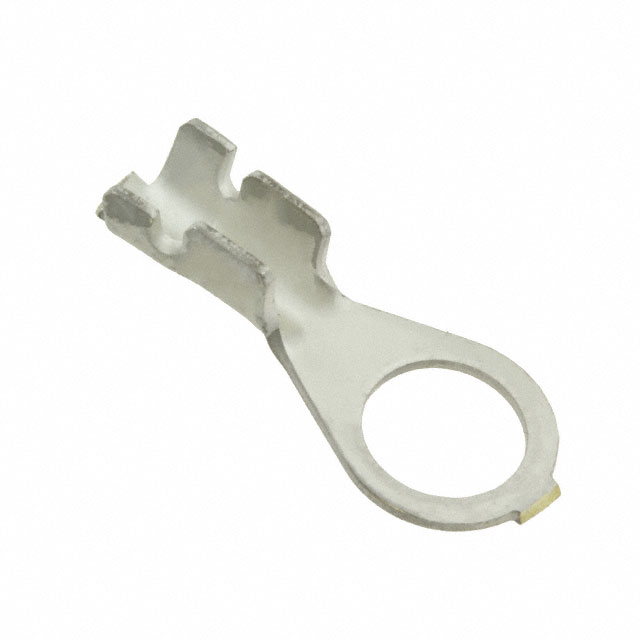

RING TONGUE IS 18-14 0.295 X .940 TPBR
| Part | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Contact Finish | Stud/Tab Size | Insulation | Termination | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Width - Outer Edges [x] | Width - Outer Edges [x] | Thickness | Thickness | Contact Material | Length - Overall [x] | Length - Overall [x] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3 mm | 0.098 in | 2.5 mm | 0.118 " | Tin | M6 Stud | Non-Insulated | Crimp | Free Hanging (In-Line) | 14 AWG | 18 AWG | 0.343 in | 8.71 mm | 0.79 mm | 0.031 in | Brass | 19.89 mm | 0.783 in | Circular |
