ESM050W Series

Catalog

LED DRIVER CC AC/DC 23-34V 1.4A

Part	Mounting Type	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Topology	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Termination Style	Efficiency	Dimming	Approval Agency	Ratings	Voltage - Input (Min) [Min]	Features	Voltage - Input (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max) [Max]	Number of Outputs

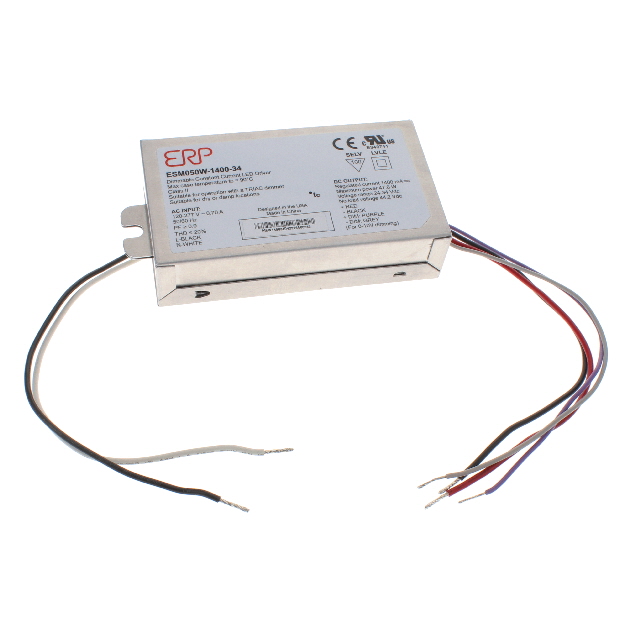

ERP Power, LLC ESM050W-1400-34	Chassis Mount	252 g	0.556 lb	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	AC DC Converter	48 W	-30 ░C	90 °C	Constant Current	Wire Leads	87 %	ELV TRIAC	CB CE cRUcs cUL FC UL	IP20 NEMA 410	120 VAC	OCP OTP SCP	277 VAC	34 V	23 V	1.4 A	1
ERP Power, LLC ESM050W-1050-42	Chassis Mount	252 g	0.556 lb	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	AC DC Converter	44 W	-30 ░C	90 °C	Constant Current	Wire Leads	87 %	ELV TRIAC	CB CE cRUcs cUL FC UL	IP20 NEMA 410	120 VAC	OCP OTP SCP	277 VAC	42 V	28 V	1.05 A	1
ERP Power, LLC ESM050W-1200-42	Chassis Mount	252 g	0.556 lb	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	AC DC Converter	50 W	-30 ░C	90 °C	Constant Current	Wire Leads	87 %	ELV TRIAC	CB CE cRUcs cUL FC UL	IP20 NEMA 410	120 VAC	OCP OTP SCP	277 VAC	42 V	28 V	1.2 A	1
