0394-0 Series

Catalog

CONN PIN RCPT .065-.082 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth [z]	Socket Depth [z]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Material	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]

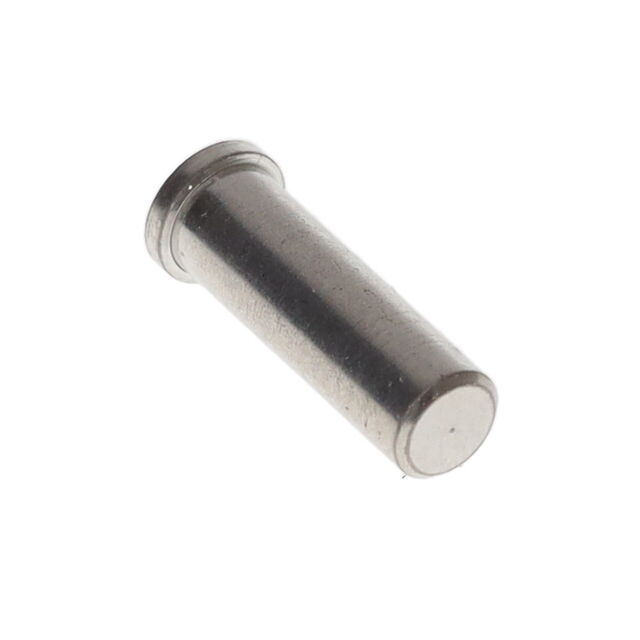

Mill-Max Manufacturing Corp. 0394-0-15-01-07-01-10-0	-55 C	125 °C	9.07 mm	0.357 in	200 Áin	5.08 Ám	3.63 mm	0.143 in	Tin-Lead	Beryllium Copper	10.16 mm	0.4 in	0.12 in	3.05 mm	No Tail	2.08 mm	0.082 "	0.065 "	1.65 mm	Solder	2.72 mm	0.107 in
Mill-Max Manufacturing Corp. 0394-0-15-80-07-14-10-0	-55 C	125 °C	9.07 mm	0.357 in	10 Áin	0.25 Ám	3.63 mm	0.143 in	Gold	Beryllium Copper	10.16 mm	0.4 in	0.12 in	3.05 mm	No Tail	2.08 mm	0.082 "	0.065 "	1.65 mm	Solder	2.72 mm	0.107 in

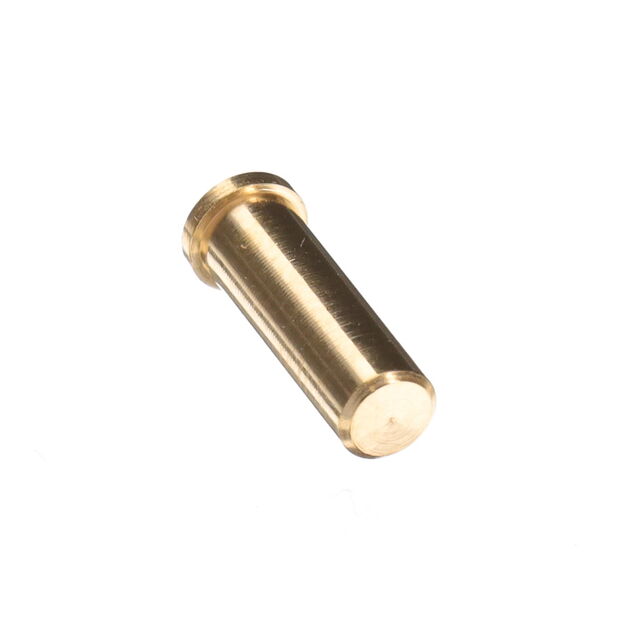

Mill-Max Manufacturing Corp. 0394-0-15-15-07-14-10-0	-55 C	125 °C	9.07 mm	0.357 in	10 Áin	0.25 Ám	3.63 mm	0.143 in	Gold	Beryllium Copper	10.16 mm	0.4 in	0.12 in	3.05 mm	No Tail	2.08 mm	0.082 "	0.065 "	1.65 mm	Solder	2.72 mm	0.107 in
Mill-Max Manufacturing Corp. 0394-0-15-01-07-14-10-0	-55 C	125 °C	9.07 mm	0.357 in	10 Áin	0.25 Ám	3.63 mm	0.143 in	Gold	Beryllium Copper	10.16 mm	0.4 in	0.12 in	3.05 mm	No Tail	2.08 mm	0.082 "	0.065 "	1.65 mm	Solder	2.72 mm	0.107 in
