207017 Series

Mini-Fit Sigma Sealed Plug Housing, Dual Row, 4.20mm Pitch, 16 Circuits, UL94V-0, Natural

Manufacturer: Molex

Catalog

Mini-Fit Sigma Sealed Plug Housing, Dual Row, 4.20mm Pitch, 16 Circuits, UL94V-0, Natural

Part	Connector Type	Mounting Type	Contact Type	Color	Features	Row Spacing	Row Spacing	Fastening Type	Number of Rows	Pitch [x]	Pitch [x]	Insulation Material	Number of Positions	Note	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Positions

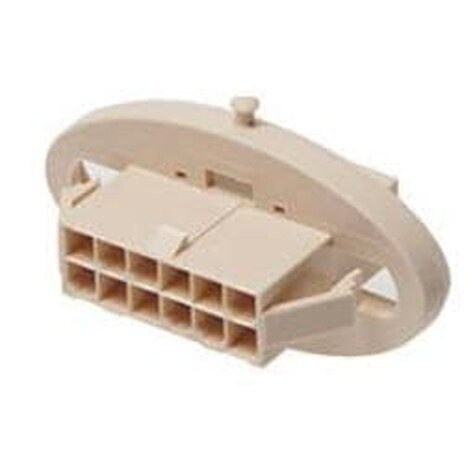

Molex 2070170012	Plug	Panel Mount Snap-In	Male Pin	Natural	Sealed	4.2 mm	0.165 in	Locking Ramp	2	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	12	Contacts Not Included	-40 °C	105 ░C	Crimp
Molex 2070170004	Plug	Panel Mount Snap-In	Female Socket	Natural	Sealed	4.2 mm	0.165 in	Locking Ramp	2	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	4		-40 °C	105 ░C	Crimp
Molex 2070170008	Plug	Panel Mount Snap-In	Male Pin	Natural	Sealed	4.2 mm	0.165 in	Locking Ramp	2	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	8	Contacts Not Included	-40 °C	105 ░C	Crimp

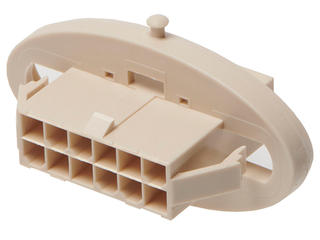

Molex 2070170016	Plug	Panel Mount Snap-In	Female Socket	Natural	Sealed	4.2 mm	0.165 in	Locking Ramp	2	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6			-40 °C	105 ░C	Crimp	16

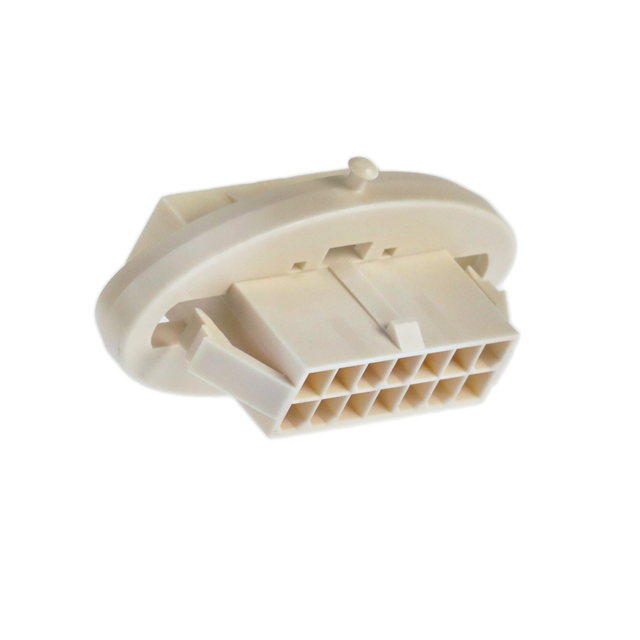

Molex 2070170014	Plug	Panel Mount Snap-In	Male Pin	Natural	Sealed	4.2 mm	0.165 in	Locking Ramp	2	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	14	Contacts Not Included	-40 °C	105 ░C	Crimp
Molex 2070170006	Plug	Panel Mount Snap-In	Female Socket	Natural	Sealed	4.2 mm	0.165 in	Locking Ramp	2	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	6		-40 °C	105 ░C	Crimp

Mini-Fit Sigma Sealed Plug Housing, Dual Row, 4.20mm Pitch, 16 Circuits, UL94V-0, Natural
