MCS-16-NO Series

Catalog

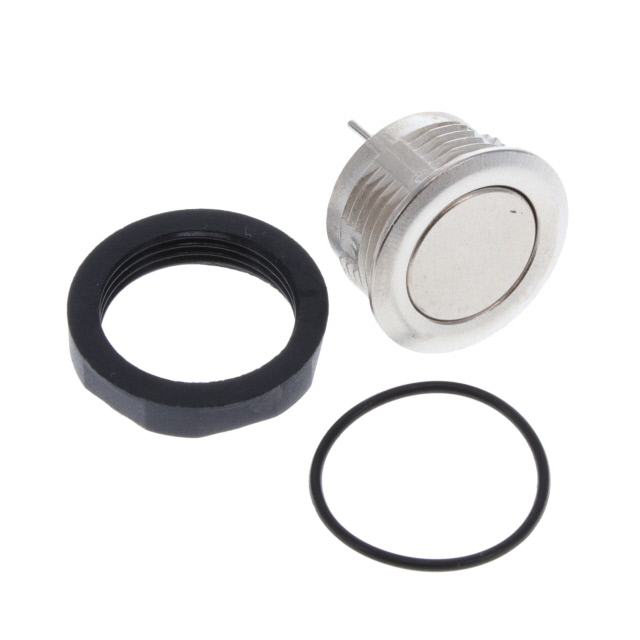

MCS 16, METAL SWITCH SHORT STROK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Color - Actuator/Cap	Mounting Type	Electrical Life	Voltage Rating - DC	Termination Style	Mechanical Life	Actuator Marking	Panel Cutout Dimensions [diameter]	Circuit	Ingress Protection	Switch Function	Actuator Type	Type	Features	Illumination Type, Color	Illumination Voltage (Nominal)
SCHURTER Inc. MCS-16-NO00A08-Z0NCZ0NCWF-00000000-P0000-S	-20 ░C	60 °C	80 mA	Silver	Panel Mount Front	1000000 Cycles	24 V	PC Pin	1000000 Cycles	No Marking	16.1 mm	SPST-NO	IP67 - Dust Tight Waterproof	Off-Mom	Button Flush Round	Anti-Vandal
SCHURTER Inc. MCS-16-NO00A12-Z0NCS3NCWF-00000000-S0000-S	-20 ░C	60 °C	125 mA	Silver	Panel Mount Front	1000000 Cycles	48 V	Solder Lug	1000000 Cycles	No Marking	16.1 mm	SPST-NO	IP67 - Dust Tight Waterproof	Off-Mom	Button Flush Round	Anti-Vandal	Stainless Steel
SCHURTER Inc. MCS-16-NO00A12-Z0NCS3NCWF-PI0RG00R-S0000-S	-20 ░C	60 °C	125 mA	Silver	Panel Mount Front	1000000 Cycles	48 V	Solder Lug	1000000 Cycles	No Marking	16.1 mm	SPST-NO	IP67 - Dust Tight Waterproof	Off-Mom	Button Flush Round	Anti-Vandal Illuminated	Stainless Steel	Green/Red LED	2 VDC
SCHURTER Inc. MCS-16-NO00A12-Z0NCZ0NCWF-00000000-S0000-S	-20 ░C	60 °C	125 mA	Silver	Panel Mount Front	1000000 Cycles	48 V	Solder Lug	1000000 Cycles	No Marking	16.1 mm	SPST-NO	IP67 - Dust Tight Waterproof	Off-Mom	Button Flush Round	Anti-Vandal
SCHURTER Inc. MCS-16-NO00A12-Z0NCZ0NCWF-PI0RG00R-S0000-S	-20 ░C	60 °C	125 mA	Silver	Panel Mount Front	1000000 Cycles	48 V	Solder Lug	1000000 Cycles	No Marking	16.1 mm	SPST-NO	IP67 - Dust Tight Waterproof	Off-Mom	Button Flush Round	Anti-Vandal Illuminated		Green/Red LED	2 VDC
SCHURTER Inc. MCS-16-NO00A12-Z0NCZ0NCWF-00000000-P0000-S	-20 ░C	60 °C	125 mA	Silver	Panel Mount Front	1000000 Cycles	48 V	PC Pin	1000000 Cycles	No Marking	16.1 mm	SPST-NO	IP67 - Dust Tight Waterproof	Off-Mom	Button Flush Round	Anti-Vandal
