M50-360 Series

Catalog

CONN HEADER SMD 50POS 1.27MM

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Style	Number of Positions	Mounting Type	Shrouding	Contact Shape	Material Flammability Rating	Fastening Type	Contact Type	Insulation Material	Connector Type	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Material	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features

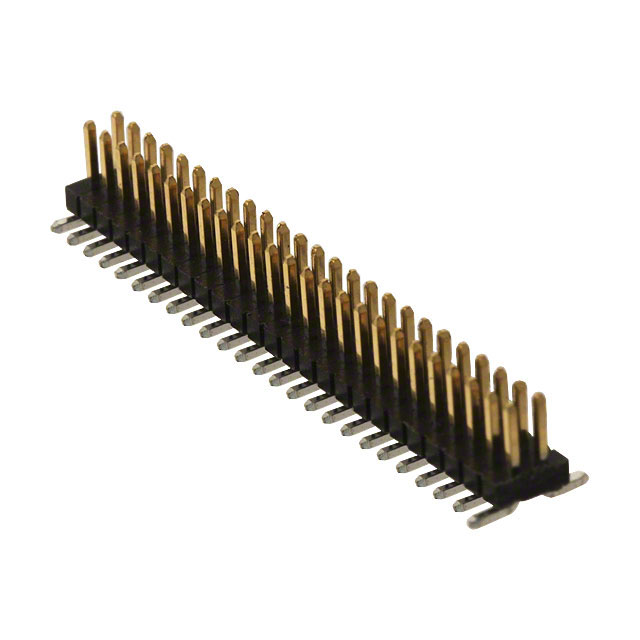

Harwin Inc. M50-3602542	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	2.5 µm	98.4 µin	All	0.05 in	1.27 mm	3 mm	0.118 in	Board to Board Cable	50	Surface Mount	Unshrouded	Square	UL94 V-0	Push-Pull	Male Pin	Thermoplastic	Header	Solder	1.27 mm	0.05 in	Gold	Copper Alloy	2	-40 C	105 ░C	Tin	1 mm	0.039 in	Black	0.076 µm	3 µin

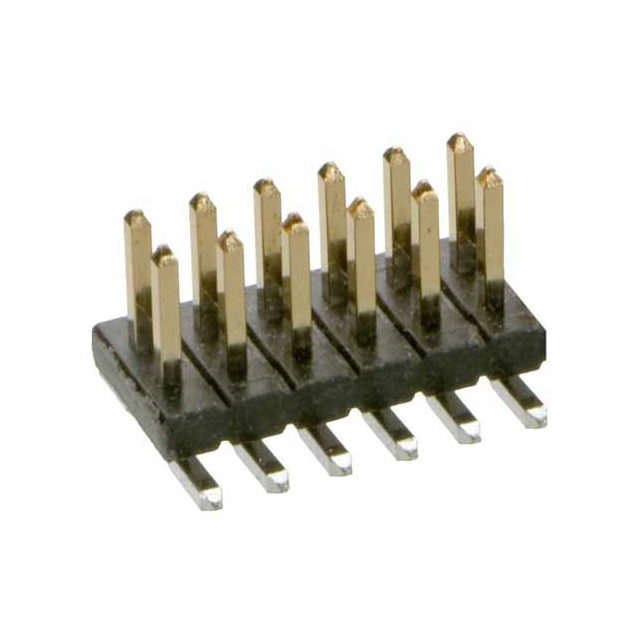

Harwin Inc. M50-3600642R				All	0.05 in	1.27 mm	3 mm	0.118 in	Board to Board Cable	12	Surface Mount Through Hole	Unshrouded	Square	UL94 V-0	Push-Pull	Male Pin	Thermoplastic	Header	Solder	1.27 mm 2 mm	0.05 in 0.079 "	Gold	Copper Alloy	2	-55 C -40 C	105 ░C 125 °C	Tin	1 mm	0.039 in	Black	0.076 µm	3 µin	0.1 in	2.54 mm	Pick and Place

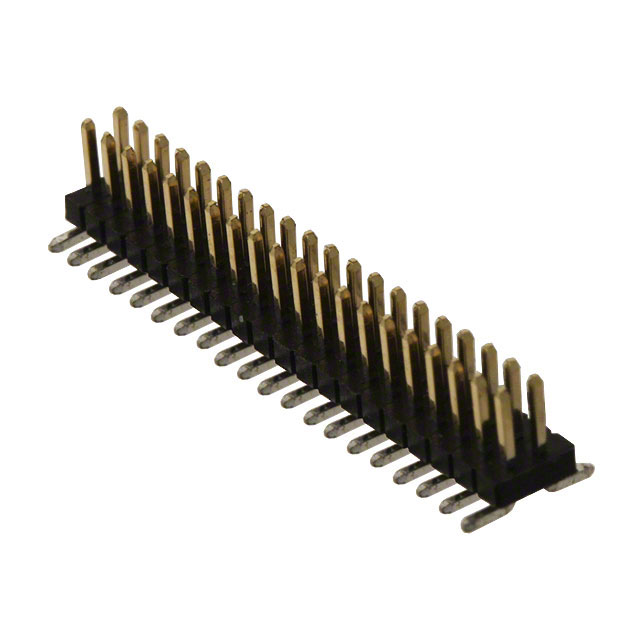

Harwin Inc. M50-3602042	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	2.5 µm	98.4 µin	All	0.05 in	1.27 mm	3 mm	0.118 in	Board to Board Cable	40	Surface Mount	Unshrouded	Square	UL94 V-0	Push-Pull	Male Pin	Thermoplastic	Header	Solder	1.27 mm	0.05 in	Gold	Copper Alloy	2	-40 C	105 ░C	Tin	1 mm	0.039 in	Black	0.076 µm	3 µin

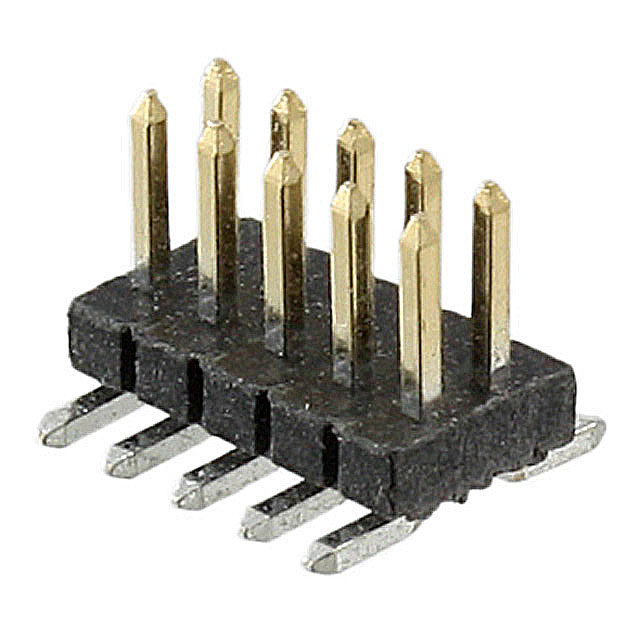

Harwin Inc. M50-3600542	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	2.5 µm	98.4 µin	All	0.05 in	1.27 mm	3 mm	0.118 in	Board to Board Cable	10	Surface Mount	Unshrouded	Square	UL94 V-0	Push-Pull	Male Pin	Thermoplastic	Header	Solder	1.27 mm	0.05 in	Gold	Copper Alloy	2	-40 C	105 ░C	Tin	1 mm	0.039 in	Black	0.076 µm	3 µin
Harwin Inc. M50-3601042R	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	2.5 µm	98.4 µin	All	0.05 in	1.27 mm	3 mm	0.118 in	Board to Board Cable	20	Surface Mount	Unshrouded	Square	UL94 V-0	Push-Pull	Male Pin	Thermoplastic	Header	Solder	1.27 mm	0.05 in	Gold	Copper Alloy	2	-40 C	105 ░C	Tin	1 mm	0.039 in	Black	0.076 µm	3 µin			Pick and Place

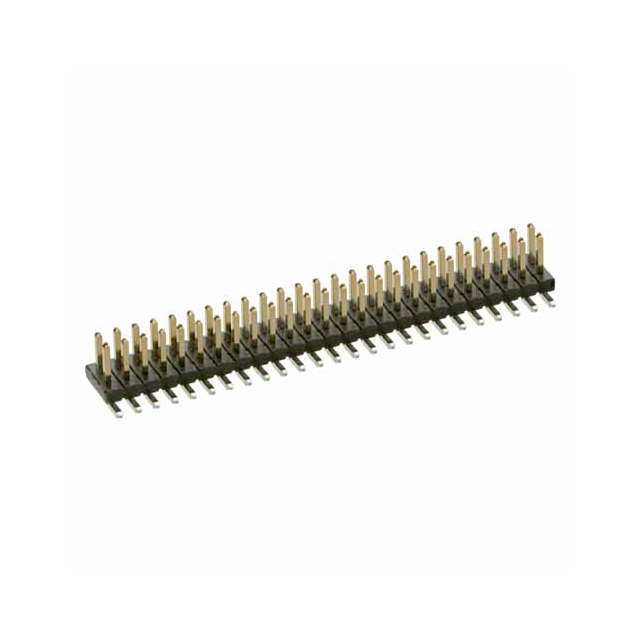

Harwin Inc. M50-3602542R	3.9 mm 5.3 mm 6.08 mm 6.18 mm	2.5 µm	98.4 µin	All	0.05 in	1.27 mm	3 mm	0.118 in	Board to Board Cable	50	Surface Mount	Unshrouded	Square	UL94 V-0	Push-Pull	Male Pin	Thermoplastic	Header	Solder	1.27 mm	0.05 in	Gold	Copper Alloy	2	-40 C	105 ░C	Tin	1 mm	0.039 in	Black	0.076 µm 0.08 µm	3 µin 3.15 µin			Board Guide Pick and Place
