Q2-Z-3/64 Series

Manufacturer: Qualtek

Catalog

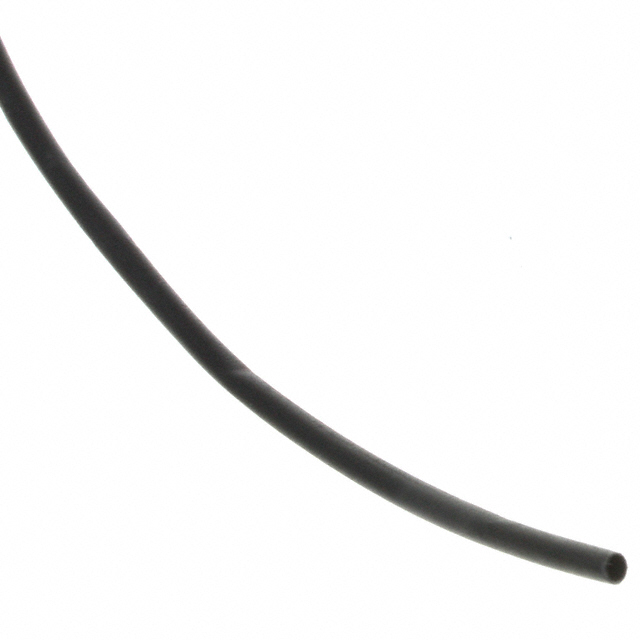

HEATSHRINK 0.046" X 50' BLACK

Part	Features	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Length	Length	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Shelf Life	Color	Length [x]	Length [x]
Qualtek Q2-Z-3/64-01-QX50FT	Flame Retardant	Polyolefin (PO)	0.023 in	0.58 mm	-55 C	125 °C	1.17 mm	0.046 "	Tubing Flexible	50 ft	15.2 m	40 °C	14 °F	-50 °F	40 °C	0.33 mm	0.013 in	70 °C	1	2	144 Months	Black
Qualtek Q2-Z-3/64-01-QB48IN-25	Flame Retardant	Polyolefin (PO)	0.023 in	0.58 mm	-55 C	125 °C	1.17 mm	0.046 "	Tubing Flexible			40 °C	14 °F	-50 °F	40 °C	0.33 mm	0.013 in	70 °C	1	2	144 Months	Black	4 ft	1.22 m
Qualtek Q2-Z-3/64-01-SS1000FT	Flame Retardant	Polyolefin (PO)	0.023 in	0.58 mm	-55 C	125 °C	1.17 mm	0.046 "	Tubing Flexible	1000 ft	304.8 m	40 °C	14 °F	-50 °F	40 °C	0.33 mm	0.013 in	70 °C	1	2	144 Months	Black
Qualtek Q2-Z-3/64-01-MS100FT	Flame Retardant	Polyolefin (PO)	0.023 in	0.58 mm	-55 C	125 °C	1.17 mm	0.046 "	Tubing Flexible			40 °C	14 °F	-50 °F	40 °C	0.33 mm	0.013 in	70 °C	1	2	144 Months	Black	100 ft	30.5 m
