14-522 Series
Manufacturer: EAO
Beta
⌘K

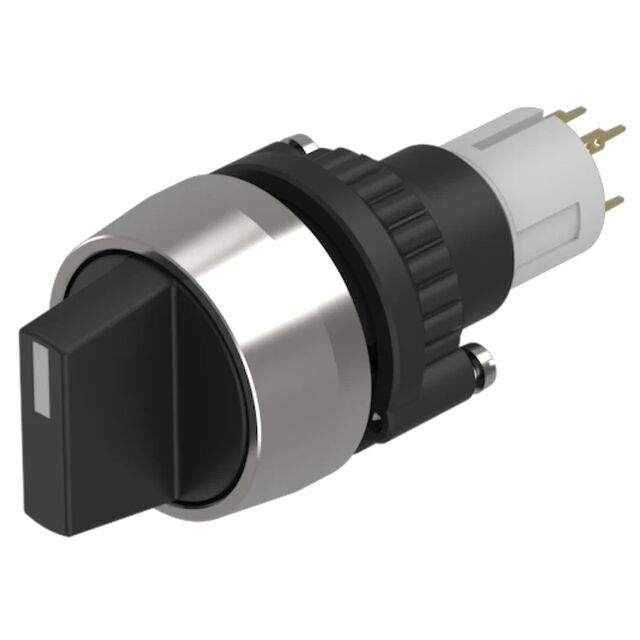

SELECTOR SWITCH 2 POSITIONS MAIN SHORT LEVER LL 1NC+1NO UT D29 GOLD ROHS COMPLIANT: YES
| Part | Depth Behind Flange | Approval Agency | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Features | Illumination | Switch Function | Voltage Rating - DC | Circuit | Number of Positions | Mounting Type | Ingress Protection | Type | Current Rating (Amps) | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 35.5 mm | CE CQC | 1000000 Cycles | 55 °C | -25 °C | 42 V | Bezel - Round Black Knob | Non-Illuminated | Off-On On-Off | 42 V | DPST-NO/NC | 2 | Panel Mount | IP67 - Dust Tight Waterproof | Standard | 100 mA | 22.3 mm |
