2816RW Series
Manufacturer: Belden Inc.
Beta
⌘K

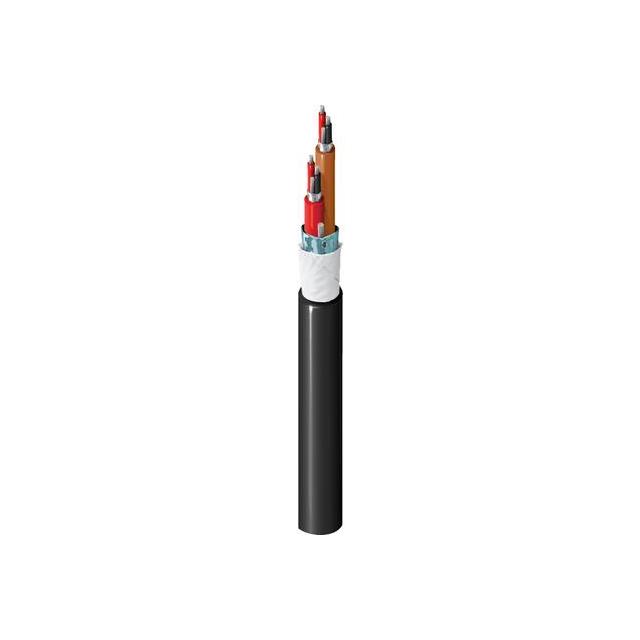

6PR22 JKT SNAKE INDOOR/OUTDOOR
| Part | Shield Coverage | Shield Material | Shield Type | Conductor Material | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Usage | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Material | Features | Conductor Insulation | Number of Conductors | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Foil | Copper Tinned | Black | 75 ░C | -30 ░C | 22 AWG | Audio | Multi-Pair | 30 AWG | 7 | UL Style CMR | Chlorinated Polyethylene (CPE) | Rip Cord UV Resistant Water-Blocked | Polypropylene (PP) | 12 | 300 VDC | 13.23 mm | 0.521 in |
