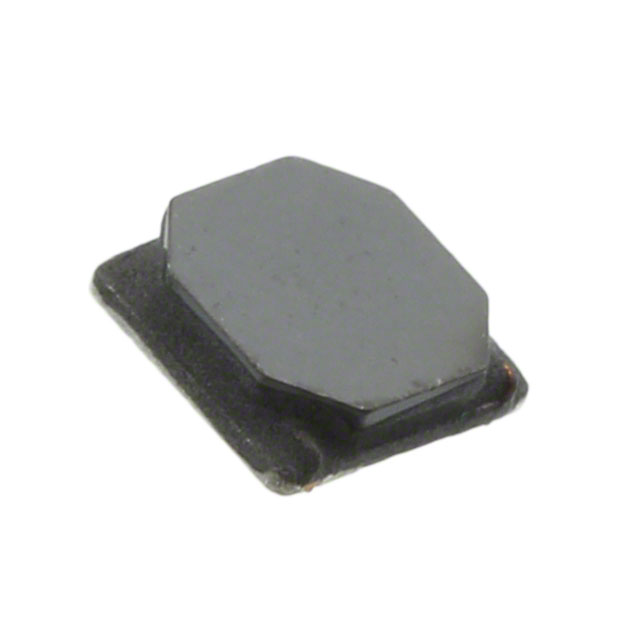

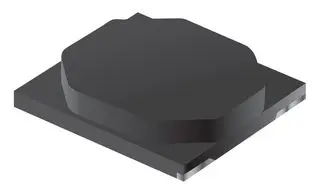

SRN4012T Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 4.7 ΜH, 1.5 A, SEMISHIELDED, 1.2 A, SRN4012T SERIES
| Part | Inductance | Current Rating (Amps) | Frequency - Self Resonant | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Q @ Freq | Shielding | Package / Case | Material - Core | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current - Saturation (Isat) | Inductance Frequency - Test | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 4.7 ÁH | 1.5 A | 45 MHz | 20 % | 1.2 mm | 0.047 " | 6 100 kHz | Shielded | Nonstandard | Ferrite | 95 mOhm | 125 °C | -40 C | Drum Core Wirewound | 1.2 A | 100 kHz | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm |
Bourns Inc. | 470 nH | 3.2 A | 140 MHz | 20 % | 1.2 mm | 0.047 " | 6 100 kHz | Shielded | Nonstandard | Ferrite | 25 mOhm | 125 °C | -40 C | Drum Core Wirewound | 4 A | 100 kHz | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm |
 Bourns Inc. | 3.3 µH | 1.7 A | 60 MHz | 20 % | 1.2 mm | 0.047 " | 6 100 kHz | Shielded | Nonstandard | Ferrite | 70 mOhm | 125 °C | -40 C | Drum Core Wirewound | 1.4 A | 100 kHz | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm |
Bourns Inc. | 6.8 µH | 1.3 A | 35 MHz | 20 % | 1.2 mm | 0.047 " | 6 100 kHz | Shielded | Nonstandard | Ferrite | 125 mOhm | 125 °C | -40 C | Drum Core Wirewound | 900 mA | 100 kHz | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm |
