AMP LEAF Series

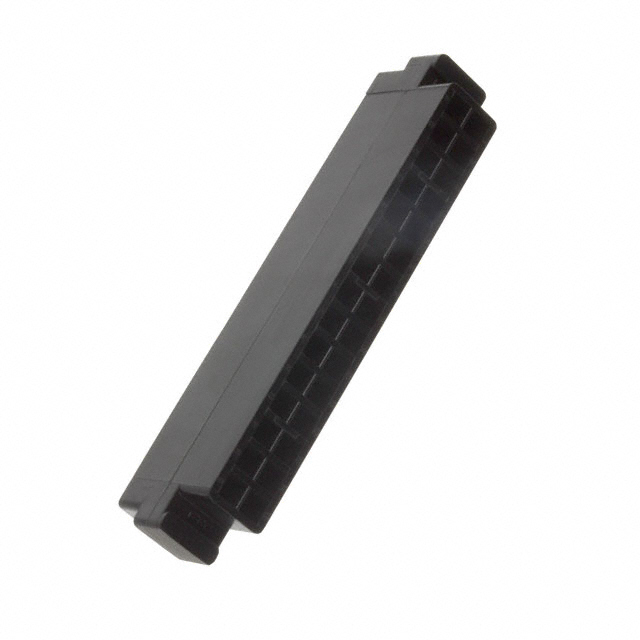

Standard Card Edge Connectors HSG AMP LEAF 15 POS
Manufacturer: TE Connectivity AMP Connectors
Catalog
Standard Card Edge Connectors HSG AMP LEAF 15 POS
Beta
⌘K
Standard Card Edge Connectors HSG AMP LEAF 15 POS
Standard Card Edge Connectors HSG AMP LEAF 15 POS
Standard Card Edge Connectors HSG AMP LEAF 15 POS
| Part | Note | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Pitch | Pitch | Number of Positions | Color | Features | Mounting Type | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Contact Termination | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | -65 ░C | 125 °C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 30 | Black | Flange | Panel Mount | 1.4 mm | 0.07 in | 1.78 mm | 0.055 in | ||||||
 TE Connectivity AMP Connectors | Gold | 0.38 µm | 15 µin | Non-Gendered | Solder Eyelet | Phosphor Bronze |
