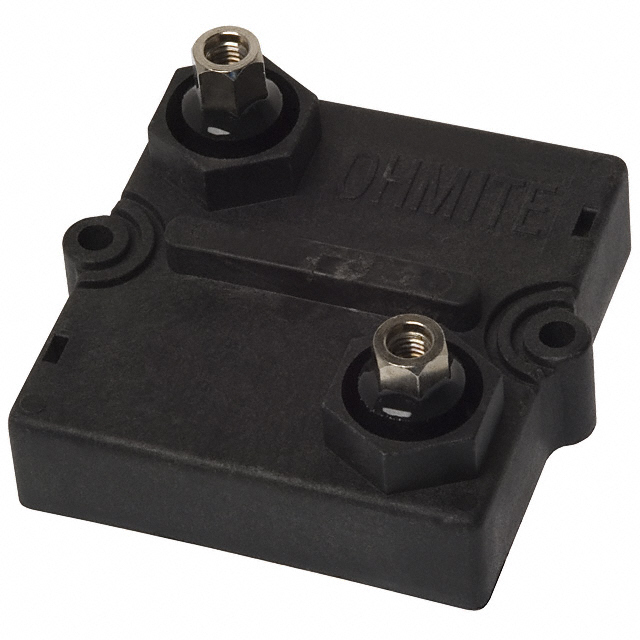

TAP600 Series
Manufacturer: Ohmite
Beta
⌘K
PLANAR RESISTORS - CHASSIS MOUNT 600W 7.5K OHMS 10% HIGH POWER
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Lead Style | Power (Watts) | Mounting Feature | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Resistance | Composition | Coating, Housing Type | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 32.5 mm | 1.28 in | -55 C | 150 °C | 10 % | M5 Threaded | 600 W | Flanges | 2.559 in | 60 mm | 65 mm | 2.362 in | 7.5 kOhms | Thick Film | Epoxy Coated | 150 ppm/°C |
Ohmite | 32.5 mm | 1.28 in | -55 C | 150 °C | 10 % | M5 Threaded | 600 W | Flanges | 2.559 in | 60 mm | 65 mm | 2.362 in | 50 Ohms | Thick Film | Epoxy Coated | 150 ppm/°C |
